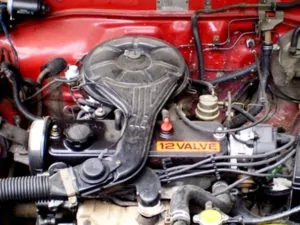

The Toyota 2E is a 1.3 l (1,296 cc, 79.09 cu·in) straight-four 4-stroke natural aspirated gasoline engine from Toyota E-family. The 2E engine was manufactured from 1985 to 1998.
The 2E engine features a cast-iron block and aluminum cylinder head with the single overhead camshaft (SOHC) and three valves per cylinder (12 in total).
Compression ratio rating is 9.5:1. It has a 73.0 mm (2.87 in) cylinder bore and 77.4 mm (3.05 in) piston stroke.
The engine was available in the following versions:
- 2E or 2E-L, 2E-LU It is a carburetored version of this engine. Horsepower ranged from 65.3 PS (48 kW; 64.4 HP) at 6000 rpm to 83 PS (61 kW; 81.8 HP) at 6,000 rpm with 89 N·m (9.1 kg·m, 65.6 ft·lb) at 3,600 rpm to 98 N·m (10 kg·m, 72.2 ft·lb) at 5,200 rpm of peak torque.
- 2E-E, 2E-ELU – EFI version was used on Toyota Starlet Si (Ri) Limited.
- 2E-TE, 2E-TELU – turbocharged version was used on Toyota Starlet 1300 Turbo S (Turbo R). This version was produced from 102 PS (75 KW; 100 HP) to 110 PS (81 KW; 109 HP)
- 2E-LJ – this version was used on Toyota Starlet Van (3-rd generation). Thie version was produced 73 PS (54 kW; 72 HP) at 6,000 rpm of horsepower and 101 Nm (10.3 kg⋅m; 75 lb⋅ft) at 4,000 rpm of torque.
The breakdown of the engine code is as follows:
- 2 – 2-nd generation engine
- E – Engine family
General information
| Engine Specifications | |
| Engine code | 1E |
| Layout | Four stroke, Inline-4 (Straight-4) |
| Fuel type | Gasoline (petrol) |
| Production | 1985-1998 |
| Displacement | 1.3 L, 1,296 cm3 (79.09 cu-in) |
| Fuel system | 2E, 2E-L, 2E-LU: Carburetor (Type V) 2E-E, 2E-ELU, 2E-TE, 2E-TELU: Electronic fuel injection system |
| Power adder | 2E-TE, 2E-TELU: Turbocharger |
| Power output | 2E, 2E-L, 2E-LU: 65 PS (48 kW; 64 HP) at 6000 rpm – 83 PS (61 kW; 82 HP) at 6,000 rpm 2E-TE, 2E-TELU: 102 PS (75 KW; 100 HP) to 110 PS (81 KW; 109 HP) |
| Torque output | 2E, 2E-L, 2E-LU: 89 N·m (9.1 kg·m, 66 ft·lb) at 3,600 rpm – 98 N·m (10 kg·m, 72 ft·lb) at 5,200 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x W x H): | – |
| Weight | – |
Cylinder block
The Toyota 2E has a cast-iron cylinder block with five bearing support system. It has a 73.0 mm (2.87 in) cylinder bore and 77.4 mm (3.05 in) piston stroke. Compression ratio rating is 9.5:1.
| Cylinder block | ||
| Cylinder block alloy | Cast-iron | |
| Compression ratio: | 9.5:1 | |
| Cylinder bore: | 73.0 mm (2.87 in) | |
| Piston stroke: | 77.4 mm (3.05 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Cylinder inner diameter (standard): | 73.000 mm (2.874 in) | |
| Piston skirt diameter (standard): | 72.910-72.940 mm (2.8705-2.8716 in) | |
| Piston pin outer diameter: | – | |
| Piston ring side clearance: | Top | 0.040-0.080 mm (0.0016-0.0031 in) |
| Second | 0.030-0.070 mm (0.0012-0.0028 in) | |
| Piston ring end gap: | Top | 0.260-0.490 mm (0.0102-0.0193 in) |
| Second | 0.150-0.430 mm (0.0059-0.0169 in) | |
| Oil | 0.200-0.830 mm (0.0079-0.0327 in) | |
| Crankshaft journal diameter: | 47.000 mm (1.8504 in) | |
| Crankpin diameter: | 40.000 mm (1.5748 in) | |
Main bearing cap bolts tightening procedure and torque specs:
- 57 Nm, 5.8 kg·m; 42 ft·lb)
After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.
Connecting rod bearing bolts
- 39 Nm, 4.0 kg·m; 29 ft·lb)
Cylinder head
The cylinder head is made of aluminum alloy which gives it good cooling efficiency. The engine has single overhead camshaft, that is driven by a timing belt and three valves per cylinder (12 valves in total). The 2E engine used special valve shims to adjust the valve clearance.
| Cylinder head | ||
| Valve Arrangement: | SOHC, belt drive | |
| Valves: | 12 (3 valves per cylinder) | |
| Valve head diameter: | INTAKE | – |
| EXHAUST | – | |
| Valve length: | INTAKE (First) | 92.26 mm (3.6323 in) |
| INTAKE (Second) | 98.50 mm (3.8779 in) | |
| EXHAUST | 92.26 mm (3.6323 in) | |
| Valve stem diameter: | INTAKE | 5.970-5.985 mm (0.2350-0.2356 in) |
| EXHAUST | 5.965-5.980 mm (0.2348-0.2354 in.) | |
| Valve spring free length: | 41.52 mm (1.6346 in) | |
| Camshaft cam height: | INTAKE (First) | 35.87-35.97 mm (1.4122-1.4161 in) |
| INTAKE (Second) | 35.38-35.48 mm (1.3929-1.3968 in) | |
| EXHAUST | 35.83-35.93 mm (1.4106-1.4146 in) | |
| Outer camshaft journal diameter: | 26.979-26.995 mm (1.0622-1.0628 in) | |
Head tightening procedure and torque specs:
- Step 1: 29 Nm, 3.0 kg·m; 21.4 ft·lb
- Step 1: 49 Nm, 5.0 kg·m; 36.16 ft·lb
- Step 2: Turn all bolts 90°
Maintenance data
| Valve clearance | |
| Intake valve | 0.20 mm (0.008 in) |
| Exhaust valve | 0.20 mm (0.08 in) |
| Compression pressure | |
| Standard | 13.0 kg/m2 / 200 rpm |
| Minimun | 10.0 kg/m2 / 200 rpm |
| Compression differential limit between cylinders | 1.0 kg/m2 / 200 rpm |
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 5W-20, 5W-30, 10W-30 |
| Oil type API | SE, SF or SG |
| Engine oil capacity (Refill capacity) | With filter change 3.2 l l Without filter change 2.9 l |
| Oil change interval, km (miles) | 10,000 (6,000) |
| Ignition system | |
| Spark plug | NGK: BPR6EY-11 DENSO: W20EXR-U11 |
| Spark plug gap | 0.8 mm (0.031 in) or 1.1 mm (0.043 in) |
Vehicle applications
| Model | Years Produced |
| Toyota Corolla (AE92, AE111) – South Africa | – |
| Toyota Corolla (EE90, EE96, EE97, EE100) | – |
| Toyota Sprinter (EE90, EE96, EE97, EE100) | – |
| Toyota Starlet (EP71, EP81, EP82, EP90) | – |
| Toyota Starlet Van (EP76V) | – |
| Toyota Corsa | – |
| Toyota Conquest (South Africa) | – |
| Toyota Tazz (South Africa) | – |
| Toyota Tercel (Caribbean / South America) | – |
