Jinlang 1P52QMH

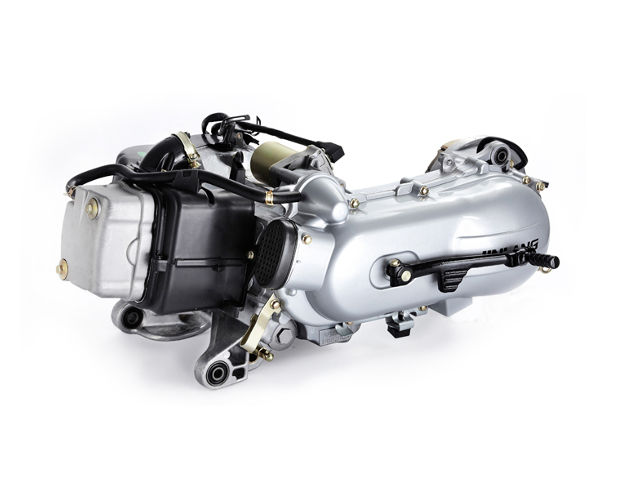

Jinlang 1P52QMHThe Jinlang 1P52QMH is a 0.11 l (112.1 cc, 6.84 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

Bore and stroke are 52.4 mm (2.06 in) and 52 mm (2.05 in), respectively. Compression ratio rating is 9.5:1. The Jinlang 1P52QMH produced 7.1 PS (5.2 kW; 7.0 HP) at 7,000 rpm of maximum horsepower and 7.8 Nm (0.8 kg·m; 5.8 ft·lb) at 5,500 rpm of torque.

General information

Engine Specifications
ModelJinlang 1P52QMH
TypeFour-stroke, single cylinder
Displacement112.1 ml (6.84 cu-in)
Max. horsepower7.1 PS (5.2 KW; 7.0 HP) at 7,000 rpm
Max. torque (crank PTO)7.8 Nm (0.8 kg·m; 5.8 ft·lb) at 5,500 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

Length, mm (in)720 (28.3)
Width, mm (in)450 (17.7)
Height, mm (in)330 (13.0)
Dry weight, kg (lb)23.0 (50.7)
