Kawasaki engines

List of small gasoline engines with horizontal and vertical shaft, which are produced by Kawasaki Heavy Industries Ltd, for general-purpose applications such as, generators, pressure washers, motorpumps and etc.

Engine Displacement Bore & Stroke Power output (max.) Net Torque
Horizontal shaft
FA-series
FA76 76 cc
(4.66 cu.in.)
52.0 x 36.0 mm (2.05 x 1.42 in) 1.7 HP at 4,000 rpm 3.1 Nm at 3,200 rpm
FA130 129 cc
(7.92 cu.in.)
62.0 x 43.0 mm (2.44 x 1.69 in) 3.1 HP at 4,000 rpm 6.1 Nm at 3,200 rpm
FA210 207 cc
(12.97 cu.in.)
72.0 x 51.0 mm (2.83 x 2.01 in) 5.2 HP at 3,600 rpm 10.4 Nm at 2,400 rpm
FD-series
FD501D 437 cc
(26.67 cu.in.)
67.0 x 62.0 mm (2.64 x 2.44 in) 16.0 HP at 3,600 rpm 32.6 Nm at 2,800 rpm
FD620D 617 cc
(37.7 cu.in.)
76.0 x 68.0 mm (2.99 x 2.68 in) 18.7 HP at 3,600 rpm 44.6 Nm at 2,200 rpm
FD620D DFI 617 cc
(37.7 cu.in.)
76.0 x 68.0 mm (2.99 x 2.68 in) 18.7 HP at 3,600 rpm 44.6 Nm at 2,200 rpm
FD661D 617 cc
(37.65 cu.in.)
76.0 x 68.0 mm (2.99 x 2.68 in) 22.0 HP at 3,600 rpm 45.7 Nm at 2,800 rpm
FD671D 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 20.5 HP at 3,600 rpm 50.0 Nm at 2,400 rpm
FD711D 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 25.0 HP at 3,600 rpm 57.2 Nm at 2,400 rpm
FD711D DFI 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 25.0 HP at 3,600 rpm – Nm at 2,400 rpm
FD750D 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 25.0 HP at 3,600 rpm 55.6 Nm at 2,600 rpm
FD750D DFI 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 23.7 HP at 3,600 rpm 51.3 Nm at 2,400 rpm
FD791D DFI 745 cc
(45.46 cu.in.)
78.0 x 78.0 mm (3.07 x 3.07 in) 26.0 HP at 3,600 rpm 54.9 Nm at 2,800 rpm
FD851D DFI 845 cc
(50.3 cu.in.)
82.0 x 78.0 mm (3.23 x 3.07 in) 31.0 HP at 3,600 rpm 63.9 Nm at 3,200 rpm
FE-series
FE120 124 cc
(7.6 cu.in.)
60.0 x 44.0 mm (2.36 x 1.73 in) 4.0 HP at 3,600 rpm 7.6 Nm at 2,800 rpm
FE161 – cc
(- cu.in.)
– x – mm
(- x – in.)
– HP at 3,600 rpm – Nm at 2,400 rpm
FE170 171 cc
(10.44 cu.in.)
66.0 x 50.0 mm (2.6 x 1.97 in) 5.5 HP at 3,600 rpm 11.0 Nm at 2,400 rpm
FE250 249 cc
(15.2 cu.in.)
76.0 x 55.0 mm (2.99 x 2.17 in) 8.0 HP at 3,600 rpm 16.5 Nm at 2,400 rpm
FE290 286 cc
(17.45 cu.in.)
78.0 x 60.0 mm (3.07 x 2.36 in) 9.5 HP at 3,600 rpm 18.6 Nm at 2,400 rpm
FE350 351 cc
(21.4 cu.in.)
83.0 x 65.0 mm (3.27 x 2.56 in) 11.5 HP at 3,600 rpm 23.5 Nm at 2,400 rpm
FE400 401 cc
(24.5 cu.in.)
87.0 x 67.5 mm (3.43 x 2.66 in) 13.0 HP at 3,600 rpm 26.5 Nm at 2,400 rpm
FG-series
FG150 151 cc
(9.2 cu.in.)
64.0 x 47.0 mm (2.52 x 1.85 in) 3.6 HP at 4,000 rpm 7.0 Nm at 2,800 rpm
FG200 201 cc
(12.27 cu.in.)
71.0 x 51.0 mm (2.8 x 2.01 in) 5.0 HP at 4,000 rpm 9.7 Nm at 2,800 rpm
FG230 232 cc
(14.2 cu.in.)
74.0 x 54.0 mm (2.91 x 2.13 in) 5.8 HP at 4,000 rpm 12.0 Nm at 2,800 rpm
FG300 296 cc
(18.06 cu.in.)
78.0 x 62.0 mm (3.07 x 2.44 in) 7.5 HP at 4,000 rpm 15.2 Nm at 2,800 rpm
FH-series
FH601D 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 19.0 HP at 3,600 rpm 50.2 Nm at 2,400 rpm
FH641D 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 21.0 HP at 3,600 rpm 52.1 Nm at 2,400 rpm
FH680D 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 23.0 HP at 3,600 rpm 54.0 Nm at 2,400 rpm
FH721D 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 25.0 HP at 3,600 rpm 56.0 Nm at 2,400 rpm
FH770D KAI 764 cc
(46.6 cu.in.)
80.0 x 76.0 mm (3.15 x 2.99 in) 28.0 HP at 3,600 rpm 64.5 Nm at 2,200 rpm
FJ-series
FJ100D 98 cc
(5.98 cu.in.)
56.0 x 40.0 mm (2.2 x 1.57 in) 3.0 HP at 3,600 rpm 4.9 Nm at 2,400 rpm
FJ130D 133 cc
(8.12 cu.in.)
56.0 x 54.0 mm (2.2 x 2.13 in) 3.8 HP at 3,600 rpm 7.9 Nm at 2,800 rpm
FJ180D 179 cc
(10.9 cu.in.)
65.0 x 54.0 mm (2.56 x 2.13 in) 5.5 HP at 3,600 rpm 11.0 Nm at 3,200 rpm
FJ220D 220 cc
(13.4 cu.in.)
72.0 x 54.0 mm (2.83 x 2.13 in) 6.5 HP at 3,600 rpm 13.3 Nm at 2,400 rpm
FJ300D 309 cc
(18.86 cu.in.)
72.0 x 76.0 mm (2.83 x 2.99 in) 8.7 HP at 3,600 rpm 19.9 Nm at 2,400 rpm
FJ400D 401 cc
(24.5 cu.in.)
82.0 x 76.0 mm (3.23 x 2.99 in) 13.0 HP at 3,600 rpm 26.5 Nm at 2,400 rpm
TJ-series
TJ27D – cc
(- cu.in.)
– x – mm
(- x – in.)
– HP at 3,600 rpm – Nm at 2,400 rpm
Vertical shaft
FA-series
FA210V 207 cc
(12.97 cu.in.)
72.0 x 51.0 mm (2.83 x 2.01 in) 5.2 HP at 3,600 rpm 10.4 Nm at 2,400 rpm
FB-series
FB460V 460 cc
(28.10 cu.in.)
89.0 x 74.0 mm (3.5 x 2.91 in) 12.5 HP at 3,600 rpm 28 Nm at 2,300 rpm
FC-series
FC150V 153 cc
(9.3 cu.in.)
65.0 x 46.0 mm (2.56 x 1.81 in) 5.0 HP at 3,600 rpm 10.7 Nm at 2,400 rpm
FC180V 182 cc
(11.1 cu.in.)
68.0 x 50.0 mm (2.68 x 1.97 in) 6.0 HP at 3,600 rpm 11.8 Nm at 3,000 rpm
FC290V 286 cc
(17.5 cu.in.)
78.0 x 60.0 mm (3.07 x 2.36 in) 9.0 HP at 3,600 rpm 18.7 Nm at 2,400 rpm
FC400V 404 cc
(24.65 cu.in.)
87.0 x 68.0 mm (3.43 x 2.68 in) 13.0 HP at 3,600 rpm
FC401V 423 cc
(25.81 cu.in.)
89.0 x 68.0 mm (3.5 x 2.68 in) 13.0 HP at 3,600 rpm 29.2 Nm at 2,200 rpm
FC420V 423 cc
(25.81 cu.in.)
89.0 x 68.0 mm (3.5 x 2.68 in) 14.0 HP at 3,600 rpm 30.6 Nm at 2,400 rpm
FC540V 535 cc
(32.65 cu.in.)
89.0 x 86.0 mm (3.5 x 3.39 in) 17.0 HP at 3,600 rpm 36.7 Nm at 2,400 rpm
FD-series
FD440V 437 cc
(26.67 cu.in.)
67.0 x 62.0 mm
(2.64 x 2.44 in.)
15.0 HP at 3,600 rpm
FD501V 437 cc
(26.67 cu.in.)
67.0 x 62.0 mm
(2.64 x 2.44 in.)
16.0 HP at 3,600 rpm 32.6 Nm at 2,800 rpm
FD590V 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
18.0 HP at 3,600 rpm 41.5 Nm at 2,600 rpm
FD611V 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
20.0 HP at 3,600 rpm 42.8 Nm at 2,200 rpm
FD680V 675 cc
(41.2 cu.in.)
72.5 x 76.0 mm
(2.85 x 2.99 in.)
23.0 HP at 3,600 rpm 54.0 Nm at 2,400 rpm
FD731V 675 cc
(41.2 cu.in.)
72.5 x 76.0 mm
(2.85 x 2.99 in.)
26.0 HP at 3,600 rpm 57.7 Nm at 2,400 rpm
FH-series
FH381V 431 cc
(26.3 cu.in.)
65.0 x 65.0 mm
(2.56 x 2.56 in)
13.0 HP at 3,600 rpm 27.5 Nm at 2,400 rpm
FH381V KAI 431 cc
(26.3 cu.in.)
65.0 x 65.0 mm
(2.56 x 2.56 in)
13.0 HP at 3,600 rpm 27.5 Nm at 2,400 rpm
FH411V 472 cc
(28.8 cu.in.)
68.0 x 65.0 mm
(2.68 x 2.56 in)
12.0 HP at 3,600 rpm 29.5 Nm at 2,400 rpm
FH430V 431 cc
(26.3 cu.in.)
65.0 x 65.0 mm (2.56 x 2.56 in) 15.0 HP at 3,600 rpm 32.0 Nm at 2,400 rpm
FH430V KAI 431 cc
(26.3 cu.in.)
65.0 x 65.0 mm (2.56 x 2.56 in) 15.0 HP at 3,600 rpm 32.0 Nm at 2,400 rpm
FH451V 494 cc
(30.15 cu.in.)
68.0 x 68.0 mm
(2.68 x 2.68 in.)
15.0 HP at 3,600 rpm 34.6 Nm at 2,400 rpm
FH480V 472 cc
(28.8 cu.in.)
68.0 x 65.0 mm
(2.68 x 2.56 in)
16.0 HP at 3,600 rpm 37.5 Nm at 2,400 rpm

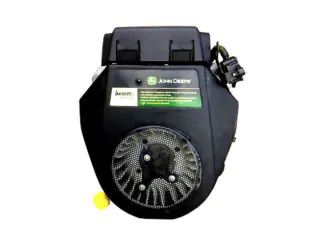

FH491V 472 cc
(28.8 cu.in.)
68.0 x 65.0 mm
(2.68 x 2.56 in)
17.0 HP at 3,600 rpm
FH500V 494 cc
(30.15 cu.in.)
68.0 x 68.0 mm
(2.68 x 2.68 in.)
17.0 HP at 3,600 rpm 37.0 Nm at 2,400 rpm
FH531V 494 cc
(30.15 cu.in.)
68.0 x 68.0 mm
(2.68 x 2.68 in.)
18.0 HP at 3,600 rpm 39.0 Nm at 2,400 rpm
FH541V 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
17.0 HP at 3,600 rpm 49.0 Nm at 2,000 rpm
FH541V KAI 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
17.0 HP at 3,600 rpm 49.0 Nm at 2,000 rpm
FH580V 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
19.0 HP at 3,600 rpm 49.6 Nm at 2,000 rpm
FH580V KAI 585 cc
(35.7 cu.in.)
74.0 x 68.0 mm
(2.91 x 2.68 in.)
19.0 HP at 3,600 rpm 49.6 Nm at 2,000 rpm
FH601V 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 19.0 HP at 3,600 rpm 50.2 Nm at 2,400 rpm
FH641V 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 21.0 HP at 3,600 rpm 52.1 Nm at 2,400 rpm
FH661V 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 22.0 HP at 3,600 rpm
FH680V 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 23.0 HP at 3,600 rpm 54.0 Nm at 2,400 rpm
FH721V 675 cc
(41.2 cu.in.)
75.2 x 76.0 mm (2.96 x 2.99 in) 25.0 HP at 3,600 rpm 56.0 Nm at 2,400 rpm
FJ-series
FJ151V 179 cc
(10.9 cu.in.)
65.0 x 54.0 mm
(2.56 x 2.13 in.)
3.8 HP at 3,600 rpm
FJ180V KAI 179 cc
(10.9 cu.in.)
65.0 x 54.0 mm
(2.56 x 2.13 in.)
4.5 HP at 3,600 rpm 10.0 Nm at 2,400 rpm
FJ180V PRO 179 cc
(10.9 cu.in.)
65.0 x 54.0 mm
(2.56 x 2.13 in.)
4.5 HP at 3,600 rpm 10.0 Nm at 2,400 rpm
FJ180V STD 179 cc
(10.9 cu.in.)
65.0 x 54.0 mm
(2.56 x 2.13 in.)
4.5 HP at 3,600 rpm 10.0 Nm at 2,400 rpm
FR-series
FR541V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
15.0 HP at 3,600 rpm 43.0 Nm at 2,000 rpm
FR600V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
18.0 HP at 3,600 rpm 44.0 Nm at 2,200 rpm
FR651V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
21.5 HP at 3,600 rpm 53.3 Nm at 2,200 rpm
FR691V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
23.0 HP at 3,600 rpm 53.6 Nm at 2,200 rpm
FR730V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
24.0 HP at 3,600 rpm 53.9 Nm at 2,200 rpm
FS-series
FS481V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
14.5 HP at 3,600 rpm 42.0 Nm at 1,800 rpm
FS541V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
15.0 HP at 3,600 rpm 42.1 Nm at 1,800 rpm
FS600V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
18.5 HP at 3,600 rpm 44.1 Nm at 2,000 rpm
FS651V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
22.0 HP at 3,600 rpm 53.3 Nm at 2,000 rpm
FS691V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
23.0 HP at 3,600 rpm 54.1 Nm at 2,200 rpm
FS730V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
24.0 HP at 3,600 rpm 54.2 Nm at 2,400 rpm
FS730V EFI 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
25.5 HP at 3,600 rpm 54.2 Nm at 2,400 rpm
FX-series
FX481V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
15.5 HP at 3,600 rpm 42.6 Nm at 1,800 rpm
FX541V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
16.5 HP at 3,600 rpm 43.4 Nm at 2,000 rpm
FX600V 603 cc
(36.8 cu.in.)
73.0 x 72.0 mm
(2.87 x 2.83 in.)
19.0 HP at 3,600 rpm 44.1 Nm at 2,200 rpm
FX651V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
20.5 HP at 3,600 rpm 52.9 Nm at 2,200 rpm
FX691V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
20.5 HP at 3,600 rpm 52.9 Nm at 2,200 rpm
FX730V 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
23.5 HP at 3,600 rpm 54.1 Nm at 2,400 rpm
FX730V EFI 726 cc
(44.3 cu.in.)
78.0 x 76.0 mm
(3.07 x 2.99 in.)
25.5 HP at 3,600 rpm 54.6 Nm at 2,800 rpm
FX751V 852 cc
(52.0 cu.in.)
84.5 x 76.0 mm
(3.33 x 2.99 in.)
24.5 HP at 3,600 rpm 60.2 Nm at 2,200 rpm
FX801V 852 cc
(52.0 cu.in.)
84.5 x 76.0 mm
(3.33 x 2.99 in.)
25.5 HP at 3,600 rpm 60.5 Nm at 2,400 rpm

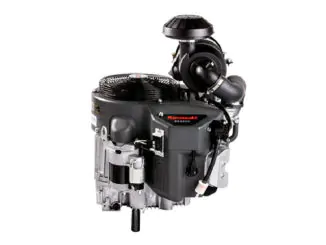

FX850V 852 cc
(52.0 cu.in.)
84.5 x 76.0 mm
(3.33 x 2.99 in.)
27.0 HP at 3,600 rpm 60.5 Nm at 2,400 rpm

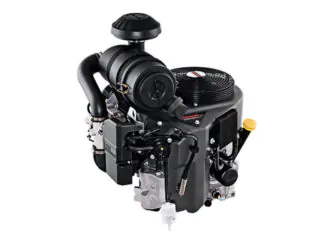

FX850V-EFI 852 cc
(52.0 cu.in.)
84.5 x 76.0 mm
(3.33 x 2.99 in.)
29.5 HP at 3,600 rpm 65.7 Nm at 2,600 rpm

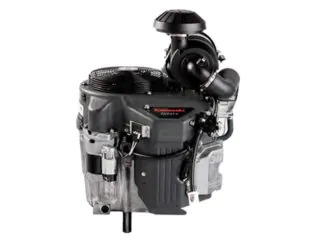

FX921V 999 cc
(61.0 cu.in.)
89.2 x 80.0 mm
(3.51 x 3.15 in.)
31.0 HP at 3,600 rpm 73.6 Nm at 2,400 rpm

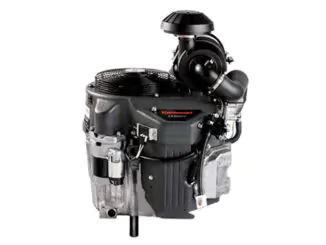

FX1000V 999 cc
(61.0 cu.in.)
89.2 x 80.0 mm
(3.51 x 3.15 in.)
35.0 HP at 3,600 rpm 75.9 Nm at 2,400 rpm
