List of small gasoline, diesel, and LPG engines with horizontal and vertical shaft, which are produced by Kohler Co, for general-purpose applications such as, construction and industrial equipment, portable generators, commercial or residential lawn, and garden equipment and etc.
Gasoline engines
| Engine | Displacement | Bore & Stroke | Power output (max.) |
| AEGIS | |||
| Horizontal shaft | |||
| ELH | |||
| ELH750 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 27.0 HP at 3,600 rpm |
| ELH775 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 30.0 HP at 3,600 rpm |
| LH | |||
| LH630 | 624 cc (38.1 cu.in.) |
77.0 X 67.0 mm (3.03 x 2.64 in) | 22.0 HP at 3,600 rpm |
| LH640 | 624 cc (38.1 cu.in.) |
77.0 X 67.0 mm (3.03 x 2.64 in) | 24.0 HP at 3,600 rpm |
| LH685 | 674 cc (41.1 cu.in.) |
80.0 X 67.0 mm (3.15 x 2.64 in) | 25.0 HP at 3,600 rpm |
| LH690 | 674 cc (41.1 cu.in.) |
80.0 X 67.0 mm (3.15 x 2.64 in) | 26.0 HP at 3,600 rpm |
| LH750 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 27.0 HP at 3,600 rpm |
| LH755 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 28.0 HP at 3,600 rpm |
| LH760 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 29.0 HP at 3,600 rpm |
| LH775 | 747 cc (45.6 cu.in.) |
83.0 X 69.0 mm (3.30 x 2.70 in) | 31.0 HP at 3,600 rpm |
| Vertical shaft | |||
| LV | |||
| LV560 | 561 cc (34.2 cu.in.) |
73.0 X 67.0 mm (2.87 x 2.64 in) | 17.0 HP at 3,600 rpm |
| LV625 | 624 cc (38.1 cu.in.) |
77.0 X 67.0 mm (3.03 x 2.64 in) | 20.0 HP at 3,600 rpm |
| LV675 | 674 cc (41.1 cu.in.) |
80.0 X 67.0 mm (3.15 x 2.64 in) | 23.0 HP at 3,600 rpm |
| LV680 | 674 cc (41.1 cu.in.) |
80.0 X 67.0 mm (3.15 x 2.64 in) | 24.0 HP at 3,600 rpm |
| COMMAND PRO | |||
| Horizontal shaft | |||
| CS | |||
| CS4 | 123 cc (7.5 cu.in.) |
56.0 x 50.0 mm (2.2 x 1.97 in) | 4.0 HP at 3,600 rpm |
| CS6 | 171 cc (10.44 cu.in.) |
66.0 x 50.0 mm (2.6 x 1.97 in) | 6.0 HP at 3,600 rpm |
| CS8.5 (95xxxx) | 251 cc (15.30 cu.in.) |
75.0 x 57.0 mm (2.95 x 2.24 in) | 7.2 HP at 3,600 rpm |
| CS8.5 (92xxxx) | 301 cc (18.37 cu.in.) |
78.0 x 63.0 mm (3.07 x 2.48 in) | 8.5 HP at 3,600 rpm |
| CS10 | 301 cc (18.37 cu.in.) |
78.0 x 63.0 mm (3.07 x 2.48 in) | 10.0 HP at 3,600 rpm |
| CS12 | 357 cc (20.8 cu.in.) |
85.0 x 63.0 mm (3.35 x 2.48 in) | 12.0 HP at 3,600 rpm |
| Hydro 12.75 | 357 cc (20.8 cu.in.) |
85.0 x 63.0 mm (3.35 x 2.48 in) | 12.75 HP at 3,600 rpm |
| CH | |||
| CH5 | 180 cc (10.98 cu.in.) |
67.0 x 51.0 mm (2.64 x 2.01 in) |
5.0 HP at 3,600 rpm |
| CH6 | 180 cc (10.98 cu.in.) |
67.0 x 51.0 mm (2.64 x 2.01 in) |
6.0 HP at 3,600 rpm |
| CH11 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
11.0 HP at 3,600 rpm |
| CH12.5 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
12.5 HP at 3,600 rpm |
| CH13 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
13.0 HP at 3,600 rpm |
| CH14 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
14.0 HP at 3,600 rpm |
| CH15 | 426 cc (26.0 cu.in.) |
90.0 x 67.0 mm (3.60 x 2.64 in) |
15.0 HP at 3,600 rpm |
| CH16 | 426 cc (26.0 cu.in.) |
90.0 x 67.0 mm (3.60 x 2.64 in) |
15.0 HP at 3,600 rpm |
| CH18 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
18.0 HP at 3,600 rpm 19.0 HP at 3,600 rpm |
| CH20 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
20.5 HP at 3,600 rpm |
| CH22 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
22.0 HP at 3,600 rpm |
| CH23 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
23.0 HP at 3,600 rpm |
| CH25 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm |
| CH26 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
26.0 HP at 3,600 rpm |
| CH245 | 177 cc (10.8 cu.in.) |
68.0 x 49.0 mm (2.70 x 1.90 in) |
4.5 HP at 3,600 rpm |
| CH255 | 177 cc (10.8 cu.in.) |
68.0 x 49.0 mm (2.70 x 1.90 in) |
5.5 HP at 3,600 rpm |
| CH260 | 208 cc (12.7 cu.in.) |
70.0 x 54.0 mm (2.80 x 2.10 in) |
6.0 HP at 3,600 rpm |
| CH270 | 208 cc (12.7 cu.in.) |
70.0 x 54.0 mm (2.80 x 2.10 in) |
6.0 HP at 3,600 rpm |
| CH395 | 277 cc (16.9 cu.in.) |
78.0 x 58.0 mm (3.10 x 2.30 in) |
9.5 HP at 4,000 rpm |
| CH395DF | 277 cc (16.9 cu.in.) |
78.0 x 58.0 mm (3.10 x 2.30 in) |
9.5 HP at 4,000 rpm |
| CH395TF | 277 cc (16.9 cu.in.) |
78.0 x 58.0 mm (3.10 x 2.30 in) |
9.5 HP at 4,000 rpm |
| CH410 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
11.0 HP at 3,600 rpm |
| CH430 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
13.0 HP at 3,600 rpm |
| CH440 | 429 cc (24.7 cu.in.) |
89.0 x 69.0 mm (3.50 x 2.70 in) |
14.0 HP at 3,600 rpm |
| CH440DF | 429 cc (24.7 cu.in.) |
89.0 x 69.0 mm (3.50 x 2.70 in) |
14.0 HP at 3,600 rpm |
| CH620 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
18.0 HP at 3,600 rpm 19.0 HP at 3,600 rpm |
| CH621 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
19.0 HP at 3,600 rpm |
| CH640 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
20.5 HP at 3,600 rpm |
| CH641 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
20.5 HP at 3,600 rpm |
| CH670 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
22.0 HP at 3,600 rpm |
| CH680 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
22.5 HP at 3,600 rpm 23.0 HP at 3,600 rpm |
| CH682 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
22.5 HP at 3,600 rpm |
| CH730 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
23.5 HP at 3,600 rpm 25.0 HP at 3,600 rpm |
| CH730LP | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
21.5 HP at 3,600 rpm |
| CH732 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
23.5 HP at 3,600 rpm |
| CH735 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
26.0 HP at 3,600 rpm |
| CH740 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm 27.0 HP at 3,600 rpm |
| CH740LP | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
22.0 HP at 3,600 rpm |
| CH740NG | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
19.5 HP at 3,600 rpm |
| CH742 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
25.0 HP at 3,600 rpm |
| CH745 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
28.0 HP at 3,600 rpm |
| CH750 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.70 in) |
27.0 HP at 3,600 rpm 30.0 HP at 3,600 rpm |
| CH752 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
27.0 HP at 3,600 rpm |
| CH940 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
32.5 HP at 3,600 rpm 34.0 HP at 3,600 rpm |
| CH960 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) | 36.0 HP at 3,600 rpm |
| CH980 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
35.0 HP at 3,600 rpm 38.0 HP at 3,600 rpm |
| CH1000 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
37.0 HP at 3,600 rpm 40.0 HP at 3,600 rpm |
| Vertical shaft | |||
| CV | |||
| CV11 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
11.0 HP at 3,600 rpm |
| CV12.5 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
12.5 HP at 3,600 rpm |
| CV13 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
13.0 HP at 3,600 rpm |
| CV14 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
14.0 HP at 3,600 rpm |
| CV15 | 426 cc (26.0 cu.in.) |
90.0 x 67.0 mm (3.60 x 2.64 in) |
15.0 HP at 3,600 rpm |
| CV16 | 426 cc (26.0 cu.in.) |
90.0 x 67.0 mm (3.60 x 2.64 in) |
16.0 HP at 3,600 rpm |
| CV17 | 561 cc (34.2 cu.in.) |
73.0 x 67.0 mm (2.87 x 2.64 in) |
17.0 HP at 3,600 rpm |
| CV18 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
18.0 HP at 3,600 rpm 19.0 HP at 3,600 rpm |
| CV20 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
20.5 HP at 3,600 rpm |
| CV22 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
22.0 HP at 3,600 rpm |
| CV23 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
23.0 HP at 3,600 rpm |
| CV25 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm |
| CV26 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
26.0 HP at 3,600 rpm |
| CV173 | 173 cc (10.6 cu.in.) |
70.0 x 45.0 mm (2.75 x 1.80 in) |
– |
| CV200 | 200 cc (12.2 cu.in.) |
73.0 x 48.0 mm (2.89 x 1.87 in) |
– |
| CV224 | 224 cc (13.7 cu.in.) |
73.0 x 53.5 mm (2.89 x 2.11 in) |
– |
| CV430 | 398 cc (24.3 cu.in.) |
87.0 x 67.0 mm (3.43 x 2.64 in) |
13.0 HP at 3,600 rpm |
| CV450 | 426 cc (26.0 cu.in.) |
90.0 x 67.0 mm (3.60 x 2.64 in) |
15.0 HP at 3,600 rpm |
| CV460 | 460 cc (27.9 cu.in.) |
87.0 x 77.0 mm (3.43 x 3.03 in) |
16.0 HP at 3,600 rpm |
| CV465 | 460 cc (27.9 cu.in.) |
87.0 x 77.0 mm (3.43 x 3.03 in) |
16.5 HP at 3,600 rpm |
| CV490 | 490 cc (29.9 cu.in.) |
90.0 x 77.0 mm (3.60 x 3.03 in) |
17.0 HP at 3,600 rpm |
| CV493 | 490 cc (29.9 cu.in.) |
90.0 x 77.0 mm (3.60 x 3.03 in) |
18.0 HP at 3,600 rpm |
| CV495 | 490 cc (29.9 cu.in.) |
90.0 x 77.0 mm (3.60 x 3.03 in) |
18.0 HP at 3,600 rpm |
| CV620 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
19.0 HP at 3,600 rpm |
| CV621 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
19.0 HP at 3,600 rpm |
| CV640 |
624 cc (38.0 cu.in.) 674 cc (41.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) 80.0 x 67.0 mm (3.15 x 2.64 in) |
20.0 HP at 3,600 rpm 20.5 HP at 3,600 rpm |
| CV641 | 624 cc (38.0 cu.in.) |
77.0 x 67.0 mm (3.03 x 2.64 in) |
20.5 HP at 3,600 rpm |
| CV670 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
22.0 HP at 3,600 rpm |
| CV680 | 674 cc (41.0 cu.in.) |
80.0 x 67.0 mm (3.15 x 2.64 in) |
22.5 HP at 3,600 rpm 23.0 HP at 3,600 rpm |
| CV682 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
22.5 HP at 3,600 rpm |
| CV730 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
23.5 HP at 3,600 rpm 25.0 HP at 3,600 rpm |
| CV732 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
23.5 HP at 3,600 rpm |
| CV735 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
26.0 HP at 3,600 rpm |
| CV740 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm 27.0 HP at 3,600 rpm |
| CV742 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
25.0 HP at 3,600 rpm |
| CV745 | 725 cc (44.2 cu.in.) |
83.0 x 67.0 mm (3.27 x 2.64 in) |
28.0 HP at 3,600 rpm |
| CV750 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.70 in) |
27.0 HP at 3,600 rpm 30.0 HP at 3,600 rpm |
| CV752 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
27.0 HP at 3,600 rpm |
| CV940 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
32.5 HP at 3,600 rpm 34.0 HP at 3,600 rpm |
| CV960 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) | 36.0 HP at 3,600 rpm |
| CV980 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
35.0 HP at 3,600 rpm 38.0 HP at 3,600 rpm |
| CV1000 | 999 cc (61.0 cu.in.) |
90.0 x 78.5 mm (3.54 x 3.09 in) |
37.0 HP at 3,600 rpm 40.0 HP at 3,600 rpm |
| COMMAND PRO EFI | |||
| Horizontal shaft | |||
| ECH | |||
| ECH440 | 429 cc (24.7 cu.in.) |
89.0 x 69.0 mm (3.50 x 2.70 in) |
14.0 HP at 3,600 rpm |
| ECH630 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
19.0 HP at 3,600 rpm |
| ECH650 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
21.0 HP at 3,600 rpm |
| ECH680 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
23.0 HP at 3,600 rpm |
| ECH730 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
23.0 HP at 3,600 rpm |
| ECH740 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
25.0 HP at 3,600 rpm |
| ECH749 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
26.5 HP at 3,600 rpm |
| ECH940 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECH980 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Vertical shaft | |||
| ECV | |||
| ECV630 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
19.0 HP at 3,600 rpm |
| ECV650 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
21.0 HP at 3,600 rpm |
| ECV680 | 694 cc (42.4 cu.in.) |
80.0 x 69.0 mm (3.15 x 2.72 in) |
23.0 HP at 3,600 rpm |
| ECV730 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
23.0 HP at 3,600 rpm |
| ECV740 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
25.0 HP at 3,600 rpm |
| ECV749 | 747 cc (45.6 cu.in.) |
83.0 x 69.0 mm (3.27 x 2.72 in) |
25.0 HP at 3,600 rpm |
| ECV850 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECV860 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECV870 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECV880 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECV940 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ECV980 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| COMMAND PRO EFI Propane | |||
| Horizontal shaft | |||
| PCH | |||
| PCH680 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| PCH740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Vertical shaft | |||
| PCV | |||
| PCV680 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| PCV740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| PCV850 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| PCV860 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| COMMAND PRO EFI Flex Fuel | |||
| Horizontal shaft | |||
| FCH | |||
| FCH749 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Vertical shaft | |||
| FCV | |||
| FCV740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| FCV749 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| CONFIDANT | |||
| Vertical shaft | |||
| ZT | |||
| ZT710 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ZT720 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ZT730 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| ZT740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| CONFIDANT EFI | |||
| Vertical shaft | |||
| EZT | |||
| EZT715 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| EZT725 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| EZT740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| EZT750 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| COURAGE | |||
| Horizontal shaft | |||
| SH | |||
| SH255 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| SH265 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| SH270 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Vertical shaft | |||
| SV | |||
| SV470 |
477 cc (29.1 cu.in.) 535 cc (32.6 cu.in.) 597 cc (36.4 cu.in.) |
84.0 X 86.0 mm (3.30 x 3.39 in) 89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
15.0 HP at 3,600 rpm |
| SV471 |
477 cc (29.1 cu.in.) 535 cc (32.6 cu.in.) 597 cc (36.4 cu.in.) |
84.0 X 86.0 mm (3.30 x 3.39 in) 89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
15.0 HP at 3,600 rpm |
| SV480 |
477 cc (29.1 cu.in.) 535 cc (32.6 cu.in.) 597 cc (36.4 cu.in.) |
84.0 X 86.0 mm (3.30 x 3.39 in) 89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
16.0 HP at 3,600 rpm |
| SV530 |
535 cc (32.6 cu.in.) 597 cc (36.4 cu.in.) |
89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
17.0 HP at 3,600 rpm |
| SV540 |
535 cc (32.6 cu.in.) 597 cc (36.4 cu.in.) |
89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
18.0 HP at 3,600 rpm |
| SV541 |
597 cc (36.4 cu.in.) 535 cc (32.6 cu.in.) |
89.0 X 86.0 mm (3.50 x 3.39 in) 94.0 X 86.0 mm (3.70 x 3.39 in) |
18.0 HP at 3,600 rpm |
| SV590 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
19.0 HP at 3,600 rpm |
| SV591 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
19.0 HP at 3,600 rpm |
| SV600 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
20.0 HP at 3,600 rpm |
| SV601 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
20.0 HP at 3,600 rpm |
| SV610 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
21.0 HP at 3,600 rpm |
| SV620 | 597 cc (36.4 cu.in.) |
94.0 X 86.0 mm (3.70 x 3.39 in) |
22.0 HP at 3,600 rpm |
| SV710 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
20.0 HP at 3,600 rpm |
| SV715 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
22.0 HP at 3,600 rpm |
| SV720 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
23.0 HP at 3,600 rpm |
| SV725 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
24.0 HP at 3,600 rpm |
| SV730 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm |
| SV735 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
26.0 HP at 3,600 rpm |
| SV740 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
27.0 HP at 3,600 rpm |
| COURAGE PRO | |||
| Vertical shaft | |||
| SV | |||
| SV810 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
20.0 HP at 3,600 rpm |
| SV820 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
23.0 HP at 3,600 rpm |
| SV830 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
25.0 HP at 3,600 rpm |
| SV840 | 725 cc (44.2 cu.in.) |
83.0 X 67.0 mm (3.27 x 2.64 in) |
27.0 HP at 3,600 rpm |
| HD | |||
| Vertical shaft | |||
| HD | |||
| HD675 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| HD775 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| HD950 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| HD1100 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| K-series | |||
| Horizontal shaft | |||
| K | |||
| K90 | 145 cc (8.9 cu.in.) |
60.3 X 50.8 mm (2.38 x 2.00 in) |
3.6 HP at 3,600 rpm |
| K91 | 145 cc (8.9 cu.in.) |
60.3 X 50.8 mm (2.38 x 2.00 in) |
4.0 HP at 4,000 rpm |
| K141 | 277 cc (16.9 cu.in.) |
74.6 X 63.5 mm (2.94 x 2.50 in) |
6.0 HP at 3,600 rpm |
| K160 | 277 cc (16.9 cu.in.) |
74.6 X 63.5 mm (2.94 x 2.50 in) |
6.6 HP at 3,600 rpm |
| K161 | 277 cc (16.9 cu.in.) |
74.6 X 63.5 mm (2.94 x 2.50 in) |
7.0 HP at 3,600 rpm |
| K181 | 305 cc (18.3 cu.in.) |
74.6 X 69.8 mm (2.94 x 2.75 in) |
8.0 HP at 3,600 rpm |
| K241 | 391 cc (23.9 cu.in.) |
82.6 X 73.0 mm (3.25 x 2.87 in) |
10.0 HP at 3,600 rpm |
| K301 | 476 cc (29.05 cu.in.) |
85.7 X 82.6 mm (3.37 x 3.25 in) |
12.0 HP at 3,600 rpm |
| K321 | 512 cc (31.24 cu.in.) |
88.9 X 82.6 mm (3.50 x 3.25 in) |
14.0 HP at 3,600 rpm |
| K330 | 551 cc (33.6 cu.in.) |
92.1 X 82.5 mm (3.63 x 3.25 in) |
12.5 HP at 3,200 rpm |
| K341 | 588 cc (35.88 cu.in.) |
95.3 X 82.6 mm (3.75 x 3.25 in) |
16.0 HP at 3,600 rpm |
| K361 | 588 cc (35.88 cu.in.) |
95.3 X 82.6 mm (3.75 x 3.25 in) |
18.0 HP at 3,600 rpm |
| K482 | 781 cc (47.7 cu.in.) |
82.6 X 73.0 mm (3.25 x 2.87 in) |
18.0 HP at 3,600 rpm |
| K532 | 880 cc (53.7 cu.in.) |
85.7 X 76.2 mm (3.37 x 3.00 in) |
20.0 HP at 3,600 rpm |
| K582 | 946 cc (57.7 cu.in.) |
88.9 X 76.2 mm (3.50 x 3.00 in) |
23.0 HP at 3,600 rpm |
| K660 | 1,101 cc (67.2 cu.in.) |
92.0 X 82.5 mm (3.62 x 3.25 in) |
26.8 HP at 3,600 rpm |
| K662 | 1,101 cc (67.2 cu.in.) |
92.0 x 82.5 mm (3.62 x 3.25 in) |
24.0 HP at 3,600 rpm |
| KT | |||
| KT17 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT19 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| MAGNUM | |||
| Horizontal shaft | |||
| M | |||
| M8 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| M10 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| M12 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| M14 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| M16 | 588 cc (35.8 cu.in.) |
95.3 X 82.6 mm (3.75 x 3.25 in) |
16.0 HP at 3,600 rpm |
| M18 | 691 cc (41.2 cu.in.) |
79.0 X 70.0 mm (3.11 x 2.76 in) |
18.0 HP at 3,600 rpm |
| M20 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Vertical shaft | |||
| MV | |||
| MV16 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| MV18 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| MV20 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| TRIAD | |||
| Horizontal shaft | |||
| TH | |||
| TH520 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| TH575 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| TH650 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XT | |||
| Vertical shaft | |||
| XT | |||

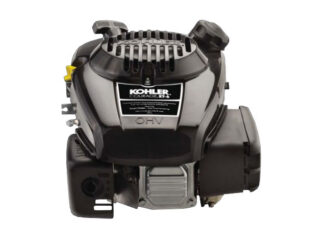

| XT6 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |

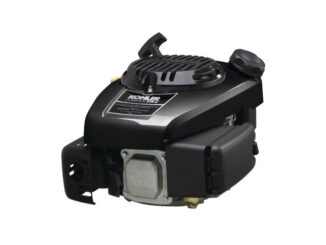

| XTR6 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |

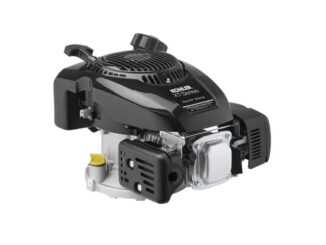

| XT6.5 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XT650 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |

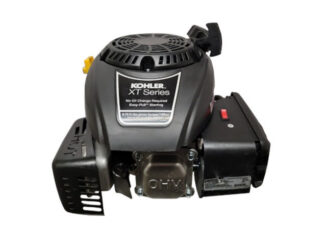

| XT6.75 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XT675 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XT7 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTR7 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XT775 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |

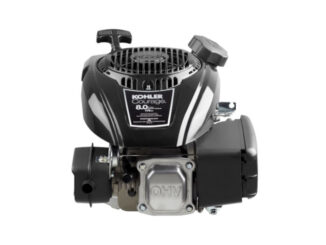

| XT8 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTX | |||
| Vertical shaft | |||
| XTX | |||
| XTX650 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTX675 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTX775 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTX950 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| XTX1100 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| 2000 | |||
| Horizontal shaft | |||
| RH | |||
| RH255 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| RH265 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| 5400 | |||
| Vertical shaft | |||
| KS | |||
| KS530 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KS540 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KS590 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KS595 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| 6600 | |||
| Vertical shaft | |||
| KT | |||
| KT610 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT620 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| 7000 | |||
| Vertical shaft | |||
| KT | |||
| KT715 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT725 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT730 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT735 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KT745 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| 7500 EFI | |||
| Vertical shaft | |||
| EKT | |||
| EKT740 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| EKT750 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
Diesel engines
| Engine | Displacement | Bore & Stroke | Power output (max.) |
| Air-cooled | |||
| Horizontal shaft | |||
| KD | |||
| KD400 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KD420 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KD425-2 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KD441 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KD477-2 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KD625-2 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDI Mechanical | |||
| Horizontal shaft | |||
| KDI | |||
| KDI1903M | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDI2504M | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| Liquid-cooled | |||
| Horizontal shaft | |||
| KDW | |||
| KDW502 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW702 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW1003 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW1404 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW1603 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW1603 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW2204 | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
| KDW2204T | – cc (- cu.in.) |
– X – mm (- x – in) |
– HP at 3,600 rpm |
