Nissan engines

Engines by fuel type: gasolaine / diesel

Nissan Motors uses a straightforward method of naming its gasoline automobile engines.

1 or 2 letters Engine family
2 digits Displacement in deciliters
Camshaft none– SOHC*
D– DOHC
V– VVL (Variable Valve Lift)
Fuel delivery i– Throttle Body Fuel Injection
E– Electronic Port Fuel Injection
D– Direct Cylinder Fuel Injection
N– Natural gas fueled
P– LPG fueled

For old engines:
S– Carburetor
T– Twin carburetor

Power adder R– Supercharged
T– Turbocharged
Ti– Turbocharged and intercooled
TT– Twin-Turbocharged
2nd power adder R– Supercharged
T– Turbocharged
Ti– Turbocharged and intercooled
TT– Twin-Turbocharged
Special HR– High Response and High Revolution
K– Improvement

*- Nissan Motors does not have a letter designation for the SOHC configuration so the camshaft configuration type is assumed as SOHC if no letter is present (example: L28ET).

Example: VQ30DET

VQ – VQ engine family;
30 – 30 deciliters (3.0 liters);
D – DOHC (dual overhead camshafts);
E – electronic port fuel injection;
T – turbocharged;

Engine code Displacement Power output
Straight-3
HR-series
HR10DDT 1.0 l
HR12DDR 1.2 l 98 PS, 72 kW; 97 HP
HR10DE 1.0 l 76 PS; 56.6 kW; 76 HP
HR12DE 1.2 l 79-84 PS; 58-62 kW; 78-83 HP
Straight-4
A-series
A10 1.0 l 55-67 PS; 41-49 kW; 56-66 HP
A12 1.2 l 71 PS; 52 kW; 70 HP
A12GX or A12T 1.2 l 84 PS; 62 kW; 83 HP
A12A 1.2 l 51 kW; 68 HP
A13 1.3 l 76 PS; 56 kW; 75 HP
A14, A14T, A14E 1.4 l 51-93 PS; 37-68 kW; 50-92 HP
A15 1.5 l 65-86 PS; 50-63 kW; 67-85 HP
C-series
С 1.0 l 27 kW; 37 HP
CA-series
CA16S 1.6 l 81 PS; 60 kW; 80 HP
CA16DE 1.6 l 120 PS; 88 kW; 118 HP
CA18i 1.8 l 68-75 kW; 91-100 HP
CA18E 1.8 l 85 kW; 113 HP
CA18S 1.8 l 66 kW; 90 HP
CA18DE 1.8 l 134 PS; 98 kW; 132 HP
CA18ET 1.8 l 135 PS; 99 kW; 133 HP
CA18DET 1.8 l 145-185 PS; 107-136 kW; 143-182 HP
CA20E 2.0 l 106 PS; 78 kW; 105 HP
CA20S 2.0 l 76-79 kW; 102-106 HP
CG-series
CG10DE 1.0 l 55-60 PS; 40-44 kW; 54-59 HP
CG13DE 1.3 l 79-82 PS; 58-60 kW; 78-81 HP
CGA3DE 1.4 l 60 kW; 81 HP
CR-series

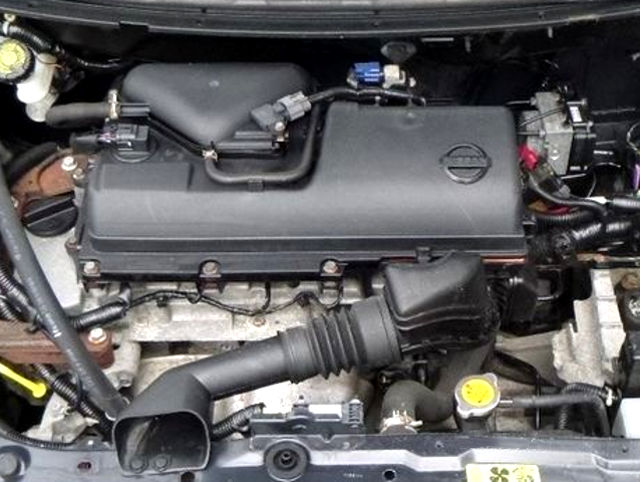

Nissan CR20DEThe Nissan CR-engine is a 1.0 L, 1.2 L or 1.4 L straight-four 4-stroke gasoline engine manufactured by Nissan’s Aichi Kikai division since 2002.

It is an aluminum DOHC (double over-head camshafts) 16-valve design, VTC system and ignition system with individual coils on each spark plug. The CR10DE produces 68 PS, the CR12DE up to 110 PS and CR14DE up to 98 PS at 5,600 rpm.

CR10DE 1.0 l 68 PS; 50 kW; 67 HP
CR12DE 1.2 l 80-110 PS; 59-81 kW; 79-109 HP
CR14DE 1.4 l 88-98 PS, 65-72 kW; 64-71 HP
D-series
D10 0.9 l 19 kW; 25 HP
D11 1.1 l 21 kW; 28 HP
D12 1.2 l 41 kW; 55 HP
E-series
E 1.2 l 36 kW; 48 HP
E-1 1.2 l 45 kW; 60 HP
E10, E10S 1.0 l 37-40 kW; 49-54 HP
E13, E13S 1.3 l 44-49 kW; 59-66 HP
E15, E15S 1.5 l 55-63 kW; 74-84 HP
E15ET 1.5 l 85 kW; 113 HP
E16S, E16i 1.6 l 52-53 kW; 70-71 HP
FJ-series
FJ20E 2.0 l 150 PS; 110 kW; 148 HP
FJ20ET 2.0 l 190-205 PS; 140-151 kW; 187-202 HP
FJ24 2.4 l 177 kW; 237 HP
Prince G-series
G-1 1.5 l 54 kW; 73 HP
G-2 1.9 l 72 kW; 96 HP
G-15 1.5 l 70 kW; 94 HP
G-16 1.6 l 74 kW; 99 HP
G-18 1.8 l 105 PS; 77 kW; 104 HP
G-20 2.0 l 81-92 kW; 110-123 HP
Prince GA-series
FG4A-10 1.5 l 34 kW; 45 HP
FG4A-20 1.5 l 39 kW; 52 HP
FG4A-30 1.5 l 45 kW; 60 HP
GA30 1.5 l 45 kW; 60 HP
GA-4 (FG4A-40) 1.5 l 52 kW; 70 HP
Prince GB-series
GB30 (FG4B-30) 1.9 l 60 kW; 80 HP
GB-4 (FG4B-40) 1.9 l 70 kW; 94 HP
G-series
G 1.5 l 56-63 kW; 75-85 HP
GA-series
GA13DS 1.3 l 79 PS; 58 kW; 78 HP
GA13DE 1.3 l 63 kW; 85 HP
GA14S 1.4 l 59 kW; 79 HP
GA14DS 1.4 l 76 PS; 56 kW; 75 HP
GA14DE 1.4 l 87 PS; 64 kW; 86 HP
GA15S 1.5 l 63 kW; 85 HP
GA15DS 1.5 l 70 kW; 94 HP
GA15E 1.5 l 72 kW; 97 HP
GA15DE 1.5 l 106 PS; 78 kW; 105 HP
GA16S 1.6 l 63-69 kW; 84-94 HP
GA16E 1.6 l 82 kW; 110 HP
GA16i 1.6 l 94 PS; 69 kW; 92 HP
GA16DE 1.6 l 100-120 PS; 76-88 kW; 102-118 HP
GA16DS 1.6 l 90-95 PS; 66-70 kW; 88-94 HP
GA16DNE 1.6 l 78 kW; 105 HP
H-series
H 1.9 l 71 kW; 95 HP
H20 2.0 l 74 kW; 99 HP
H20P 2.0 l 74 kW; 99 HP
H25 2.5 l 46 kW; 62 HP
HR-series
HRA2DDT 1.2 l 100-132 PS; 74-97 kW; 99-130 HP
HR15DE 1.5 l 99-116 PS; 73-85 kW; 98-114 HP
HR16DE 1.6 l 110-119 PS; 81-88 kW; 108-117 HP
J-series

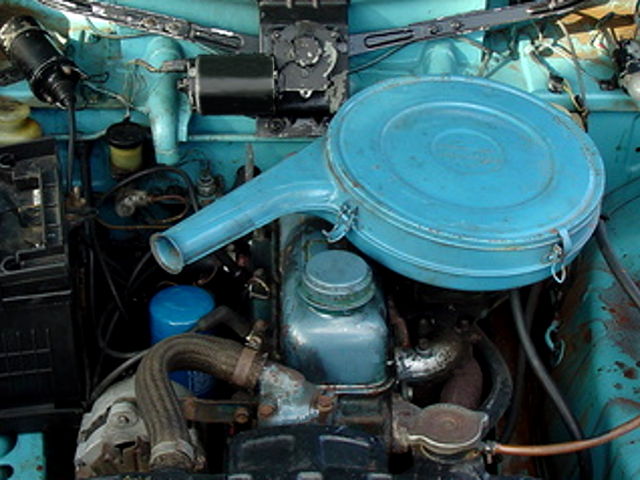

Nissan J15The Nissan J engine is a series of automobile and light truck gasoline engines manufactured by the Nissan Motor Co. All J engines had cast-iron block and cast-iron cylinder head.

There are 1.3, 1.5, 1.6 and 1.8 L versions. The J15 is a bored out version of the Nissan J13. The Nissan J16 engine is a lengthened version of the J15. The J18 is an engine that was used in some Nissan models sold in Mexico.

J13 1.3 l 68 PS; 50 kW; 67 HP
J15 1.5 l 77 PS; 57 kW; 76 HP
J16 1.6 l 82 PS; 60 kW; 80 HP
KA-series
KA20DE 2.0 l 88-92 kW; 120-125 HP
KA24E 2.4 l 136-143 PS; 100-105 kW; 134-140 HP
KA24DE 2.4 l 145-159 PS; 107-116 kW; 143-155 HP
L-series
L13 1.3 l 77 PS; 57 kW; 76 HP
L14 1.4 l 85-95 PS; 62-70 kW; 84-94 HP
L16 1.6 l 94-97 PS; 69-72 kW; 92-97 HP
L16T 1.6 l 100-105 PS; 73-77 kW; 98-103 HP
L18 1.8 l 105 PS; 77 kW; 103 HP
L18T 1.8 l 110 PS; 81 kW; 109 HP
L20B 2.0 l 112 PS; 82 kW; 110 HP
MA-series
MA10E 1.0 l 52 kW; 70 HP
MA09ERT 0.9 l 81 kW; 108 HP
MA10ET 1.0 l 55 kW; 74 HP
MA10S 1.0 l 39 kW; 52 HP
MA12S 1.2 l 45 kW; 60 HP
MR-series
MR16DDT 1.6 l 140-160 kW; 188-215 HP
MR18DE 1.8 l 124-128 PS; 91-94 kW; 122-126 HP
MRA8DE 1.8 l 131 PS; 96 kW; 129 HP
MR20DE 2.0 l 131-147 PS; 98-108 kW; 131-145 HP
MR20DD 2.0 l 144-150 PS; 106-110 kW; 142-148 HP
NA-series
NA16S 1.6 l 56 kW; 75 HP
NA20P 2.0 l 60-63 kW; 80-84 HP
NA20S 2.0 l 99-100 PS; 67-74 kW; 89-99 HP
QG-series
QG13DE 1.3 l 87-90 PS; 64-66 kW; 86-89 HP
QG15DE 1.5 l 90-109 PS; 66-80 kW; 88-107 HP
QG16DE 1.6 l 120 PS; 88 kW; 118 HP
QG18DE 1.8 l 115-125 PS; 85-92 kW; 114-123 HP
QG18DD 1.8 l 133 PS; 97 kW; 130 HP
QG18DEN 1.8 l 78 kW; 105 HP
QR-series
QR20DE 2.0 l 130-150 PS; 104-110 kW; 128-148 HP
QR20DD 2.0 l 110 kW; 148 HP
QR25DE 2.5 l 147-203 PS, 108-149 kW; 145-200 HP
QR25DD 2.5 l 125 kW; 170 HP
QR25DER 2.5 l 190 kW; 250 HP
R-series
R 1.6 l 71 kW; 96 HP
SR-series
SR16VE 1.6 l 130 kW; 175 HP
SR16VE N1 1.6 l 147 kW; 200 HP
SR18Di 1.8 l 81 kW; 110 HP
SR18DE 1.8 l 125-140 PS; 92-103 kW; 123-138 HP
SR20Di 2.0 l 89 kW; 120 HP
SR20DE 2.0 l 115-200 PS; 85-147 kW; 114-197 HP
SR20DET 2.0 l 151-184 kW; 200-250 HP
SR20VE 2.0 l 140-150 kW; 187-201 HP
SR20VET 2.0 l 206 kW; 276 HP
Datsun U-series
U20 2.0 l 101-112 kW; 135-150 HP
Z-series
Z16 (Z16S) 2.0 l 95 PS; 70 kW; 94 HP
Z16E 2.0 l 77 kW; 103 HP
Z18 (Z18S) 1.8 l 77 kW; 103 HP
Z18E 1.8 l 85 kW; 114 HP
Z18ET 1.8 l 101 kW; 135 HP
Z20S 2.0 l 87-110 PS; 66-81 kW; 88-109 HP
Z20E 2.0 l 100 PS; 74 kW; 99 HP
Z22S 2.2 l 87 PS; 64 kW; 86 HP
Z22E 2.2 l 105 PS; 77 kW; 103 HP
Z24, Z24i 2.4 l 77-79 kW; 103-106 HP
Straight-6
Prince G-series
G-7 2.0 l 79-95 kW; 106-127 HP
G7B-R 2.0 l 134 kW; 180 HP
G-8 2.0 l 145-164 kW; 194-220 HP
G-11 2.5 l 100 kW; 134 HP
H-series
H30 3.0 l 89 kW; 120 HP
J-series
J20 2.0 l 81 kW; 109 HP
K-series
K 2.8 l 88 kW; 118 HP
L-series
L20 2.0 l 81-92 kW; 109-123 HP
L20A 2.0 l 115-130 PS; 85-96 kW; 114-129 HP
L20E 2.0 l 130 PS; 96 kW; 129 HP
L20ET 2.0 l 107 kW; 143 HP
L20P 2.0 l 71 kW; 95 HP
L23 2.3 l 92 kW; 123 HP
L24 2.4 l 130 PS; 95 kW; 128 HP
L24T 2.4 l 150 PS; 110 kW; 147 HP
L24E 2.4 l 103 kW; 138 HP
L26 2.6 l 140 PS; 103 kW; 138 HP
L26L 2.6 l 126-164 PS; 92-121 kW; 124-162 HP;
L28 2.8 l 120-140 PS; 88-103 kW; 118-138 HP
L28E 2.8 l 137-155 PS; 100-114 kW; 135-153 HP
L28ET 2.8 l 182 PS; 134 kW; 180 HP
P-series
P40 4.0 l 116-145 PS; 85-107 kW; 114-143 HP
RB-series
RB20E 2.0 l 96-110 kW; 128-147 HP
RB20P 2.0 l 69 kW; 92 HP
RB20ET 2.0 l 125 kW; 167 HP
RB20DE 2.0 l 110-121 kW; 147-162 HP
RB20DET 2.0 l 129-158 kW; 173-212 HP
RB20DET-R 2.0 l 154 kW; 206 HP
RB24S 2.4 l 103 kW; 138 HP
RB25DE 2.5 l 132-147 kW; 177-197 HP
RB25DET 2.5 l 182-209 kW; 245-280 HP
RB26DE 2.6 l 162 kW; 217 HP
RB26DETT 2.6 l 206 kW; 276 HP
RB28DETT 2.8 l 386 kW; 510 HP
RB30S 3.0 l 100 kW; 134 HP
RB30E 3.0 l 114-126 kW; 153-170 HP
RB30ET 3.0 l 150 kW; 201 HP
RB30DE 3.0 l 177 kW; 237 HP
S-series
S20 2.0 l 120-190 kW; 160-250 HP
TB-series
TB42E, TB42S 4.2 l 175 PS; 129 kW; 173 HP
TB45E, TB45S 4.5 l 127-147 kW; 171-197 HP
TB48DE 4.8 l 185 kW; 248 HP
V6
VE-series

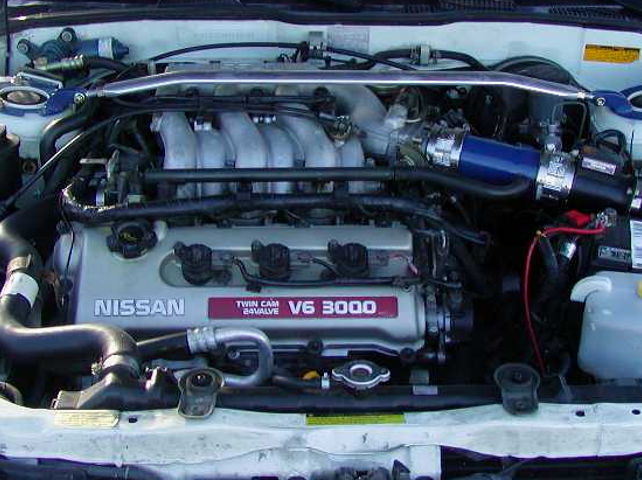

Nissan VE30DEThe VE30DE engine is a 3.0 L (2,960 cc, 180.62 cu.in.) natural aspirated V6 60° four-stroke gasoline engine form Nissan Motor Co. The engine is based on the Nissan VG engine and was only used for the Nissan Maxima J30 (1992-1994 model years).

It produces 190 HP (142 kW, 193 PS) at 5,600 rpm, the torque is 260 N⋅m (26.5 kg·m, 191.7 lb⋅ft) at 4,000 rpm.

VE30DE 3.0 l 193 PS; 142 kW; 190 HP
VG-series
VG20E 2.0 l 85-92 kW; 114-123 HP
VG20ET 2.0 l 116-130 kW; 155-170 HP
VG20P 2.0 l 73-77 kW; 98-104 HP
VG20DET 2.0 l 154 kW; 206 HP
VG30S 3.0 l 109 kW; 146 HP
VG30i 3.0 l 103 kW; 138 HP
VG30E 3.0 l 163-165 PS; 120-123 kW; 160-165 HP
VG30ET 3.0 l 195-234 PS; 143-172 kW; 192-230 HP
VG30DE 3.0 l 185-230 PS; 136-169 kW; 182-227 HP
VG30DET 3.0 l 188 kW; 252 HP
VG30DETT 3.0 l 280-330 PS; 206-242 kW; 276-325 HP
VG33E 3.3 l 170-182 PS; 125-134 kW; 168-180 HP
VG33ER 3.3 l 157 kW; 210 HP
VQ-series
VQ20DE 2.0 l 140-160 PS; 104-117 kW; 138-157 HP
VQ23DE 2.3 l 173-177 PS; 127-130 kW; 170-174 HP
VQ25DE 2.5 l 185-209 PS; 136-154 kW; 182-206 HP
VQ25DD 2.5 l 209-215 PS; 154-158 kW; 206-212 HP
VQ25DET 2.5 l 206 kW; 276 HP
VQ25HR 2.5 l 163–168 kW; 218–225 HP
VQ30DE 3.0 l 192-220 PS; 142-162 kW; 190–217 HP
VQ30DE-K 3.0 l 225-230 PS; 165-170 kW; 222-227 HP
VQ30DET 3.0 l 200-282 kW; 268 HP
VQ30DETT 3.0 l 350 kW; 470 HP
VQ30DD 3.0 l 232-259 PS; 170-190 kW; 228-255 HP
VQ35DE 3.5 l 231-315 PS; 170-232 kW; 228-311 HP
VQ35DD 3.5 l 288 PS; 212 kW; 284 HP
VQ35HR 3.5 l 300-315 PS; 221-232 kW; 297-311 HP
VQ37VHR 3.7 l 330-355 PS; 243-261 kW; 325-350 HP
VQ38HR 3.8 l 257-294 kW; 345-394 HP
VQ40DE 4.0 l 265-279 PS; 195-205 kW; 261-275 HP
VR-series
VR30DDTT 3.0 l 223-298 kW; 300-400 HP
VR38DETT 3.8 l 487-608 PS; 358-447 kW; 480-600 HP
V8
VH-series
VH41DE 4.1 l 271 PS; 199 kW; 267 HP
VH45DE 4.1 l 271-281 PS; 199-207 kW; 267-277 HP
VK-series
VK45DE 4.5 l 280-340 PS; 206-250 kW; 276-335 HP
VK45DD 4.5 l 206 kW; 276 HP
VK50VE 5.0 l 394 PS; 291 kW; 390 HP
VK56DE 5.6 l 309-326 PS; 227-240 kW; 305-322 HP
VK56VD 5.6 l 394-422 PS; 290-310 kW; 390-416 HP
W-series
W64 6.4 l 194 kW; 260 HP
Y-series
Y40 4.0 l 197 PS; 145 kW; 195 HP
Y44 4.4 l 204 PS; 150 kW; 200 HP
