Kubota engines

EngineDisplacementBore & StrokePower output (max.)Net Torque
Straight-2
Z400399 cc
(42.3 cu.in.)
64.0 x 62.2 mm
(2.52 x 2.45 in.)
10.0 HP at 3,200 rpm
ZB400400 cc
(42.4 cu.in.)
64.0 x 62.2 mm
(2.52 x 2.45 in.)
10.5 HP at 3,200 rpm
Z402-EB400 cc
(42.4 cu.in.)
64.0 x 62.2 mm
(2.52 x 2.45 in.)
8.7 HP at 3,000 rpm
Z430425 cc
(45.9 cu.in.)
66.0 x 62.2 mm
(2.60 x 2.45 in.)
11.8 HP at 3,200 rpm
Z442-B(E)437 cc
(26.7 cu.in.)
64.0 x 68.0 mm
(2.52 x 2.68 in.)
12.7 HP at 3,600 rpm
Z482-D25479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
12.0 HP at 3,100 rpm27.7 Nm
Z482-B(E)479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
13.9 HP at 3,600 rpm29.7 Nm at 2,600 rpm
Z482-E479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
12.5 HP at 3,600 rpm
Z482-E2B479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
13.3 HP at 3,600 rpm29.7 Nm at 2,600 rpm
Z482-E2479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
10.9 HP at 3,600 rpm
9.2 HP at 3,000 rpm
Z482-E3B479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
13.3 HP at 3,600 rpm29.7 Nm at 2,600 rpm
Z482-E3479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
10.9 HP at 3,600 rpm
9.2 HP at 3,000 rpm
Z482-E4B479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
13.3 HP at 3,600 rpm29.7 Nm at 2,600 rpm
Z482-E4479 cc
(29.2 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
10.9 HP at 3,600 rpm
5.1 HP at 1,800 rpm
Z500-1A508 сс
(31.0 cu.in.)
68.0 x 70.0 mm
(2.68 x 2.76 in.)
9.5 HP at 3,000 rpm
Z500-B508 сс
(31.0 cu.in.)
68.0 x 70.0 mm
(2.68 x 2.76 in.)
11.0 HP at 3,000 rpm28.0 Nm at 1,800 rpm
Z600-B570 сс
(34.8 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
13.9 HP at 3,200 rpm32.9 Nm at 2,000 rpm
ZH600-B570 сс
(34.8 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
15.5 HP at 3,600 rpm33.2 Nm at 2,000 rpm
ZL600577 сс
(35.21 cu.in.)
70.0 x 75.0 mm
(2.76 x 2.95 in.)
12.5 HP
Z602-E599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm
Z602-E2B599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm
13.5 HP at 3,200 rpm
37.8 Nm at 2,600 rpm
Z602-E3599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm
Z602-E3B599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm37.8 Nm at 2,600 rpm
Z602-E4599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm
Z602-E4B599 cc
(36.5 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
15.6 HP at 3,600 rpm37.8 Nm at 2,600 rpm
Z750A743 cc
(45.3 cu.in.)
76.0 x 82.0 mm
(2.99 x 3.23 in.)
17.0 HP at 2,800 rpm
Z751A743 cc
(45.3 cu.in.)
76.0 x 82.0 mm
(2.99 x 3.23 in.)
17.0 HP at 2,800 rpm
Z851867 cc
(52.9 cu.in.)
82.0 x 82.0 mm
(3.23 x 3.23 in.)
18.0 HP at 3,000 rpm
Z11001.1 L
(65.3 cu.in.)
88.0 x 88.0 mm
(3.46 x 3.46 in.)
21.0 HP at 2,700 rpm
Z13001.3 L
(77.6 cu.in.)
90.0 x 100.0 mm
(3.54 x 3.94 in.)
26.0 HP at 2,600 rpm79.7 Nm at 1,600 rpm
Straight-3
D600601 сс
(36.6 cu.in.)
64.0 x 62.2 mm
(2.52 x 2.45 in.)
13.8 HP at 3,200 rpm
D640638 сс
(38.9 cu.in.)
66.0 x 62.2 mm
(2.60 x 2.45 in.)
15.8 HP at 3,200 rpm
D650-A675 сс
(41.2 cu.in.)
64.0 x 70.0 mm
(2.52 x 2.76 in.)
11.0 HP at 2,800 rpm
D650-B675 сс
(41.2 cu.in.)
64.0 x 70.0 mm
(2.52 x 2.76 in.)
15.0 HP at 3,000 rpm36.5 Nm at 1,800 rpm
D662-B(E)656 cc
(40.0 cu.in.)
64.0 x 68.0 mm
(2.52 x 2.68 in.)
19.2 HP at 3,600 rpm
D662-E656 cc
(40.0 cu.in.)
64.0 x 68.0 mm
(2.52 x 2.68 in.)
17.3 HP at 3,600 rpm
D662-E2B656 cc
(40.0 cu.in.)
64.0 x 68.0 mm
(2.52 x 2.68 in.)
19.2 HP at 3,600 rpm
D662-D14656 cc
(40.0 cu.in.)
64.0 x 68.0 mm
(2.52 x 2.68 in.)
13.0 HP at 3,600 rpm37.0 Nm at 2,800 rpm
D722-B(E)719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
20.9 HP at 3,600 rpm45.8 Nm at 2,600 rpm
D722-E719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
18.8 HP at 3,600 rpm
D722-E2B719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
20.0 HP at 3,600 rpm45.8 Nm at 2,600 rpm
D722-E2719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
16.4 HP at 3,600 rpm
D722-E3B719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
20.0 HP at 3,600 rpm45.8 Nm at 2,600 rpm
D722-E3719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
15.1 HP at 3,000 rpm
17.8 HP at 3,600 rpm
D722-E4B719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
20.0 HP at 3,600 rpm45.8 Nm at 2,600 rpm
D722-E4719 cc
(43.9 cu.in.)
67.0 x 68.0 mm
(2.64 x 2.68 in.)
17.8 HP at 3,600 rpm
D750-A742 сс
(45.3 cu.in.)
68.0 x 70.0 mm
(2.68 x 2.76 in.)
16.0 HP at 2,800 rpm
D750-B742 сс
(45.3 cu.in.)
68.0 x 70.0 mm
(2.68 x 2.76 in.)
17.0 HP at 3,000 rpm42.4 Nm at 1,800 rpm

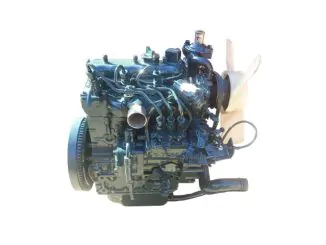

D782-E778 cc
(47.5 cu.in.)
67.0 x 73.6 mm
(2.64 x 2.90 in.)
18.1 HP at 3,200 rpm
D782-E2B778 cc
(47.5 cu.in.)
67.0 x 73.6 mm
(2.64 x 2.90 in.)
18.1 HP at 3,200 rpm
D850-B855 сс
(52.5 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
20.0 HP at 3,000 rpm50.6 Nm at 1,800 rpm
DH850-B855 сс
(52.5 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
21.0 HP at 3,600 rpm49.9 Nm at 2,400 rpm

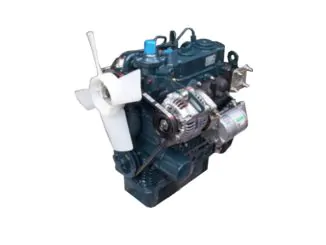

D902-E898 сс
(54.8 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
23.5 HP at 3,600 rpm
D902-E2B898 сс
(54.8 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
23.5 HP at 3,600 rpm54.4 Nm at 2,400 rpm
D905898 сс
(54.8 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
23.5 HP at 3,600 rpm52.8 Nm at 2,400 rpm
D950-B927 сс
(56.6 cu.in.)
75.0 x 70.0 mm
(2.95 x 2.76 in.)
21.5 HP at 3,000 rpm55.6 Nm at 1,800 rpm
D10051.0 L
(61.0 cu.in.)
76.0 x 73.6 mm
(2.99 x 2.90 in.)
26.0 HP at 3,600 rpm58.4 Nm at 2,400 rpm
D11001.1 L
(68.0 cu.in.)
76.0 x 82.0 mm
(2.99 x 3.23 in.)
23.5 HP at 2,700 rpm
D11021.1 L
(68.0 cu.in.)
76.0 x 82.0 mm
(2.99 x 3.23 in.)
25.5 HP at 2,800 rpm
D11051.1 L
(68.5 cu.in.)
78.0 x 78.4 mm
(3.07 x 3.09 in.)
25.0 HP at 3,000 rpm68.3 Nm at 2,000 rpm
D1105T1.1 L
(68.5 cu.in.)
78.0 x 78.4 mm
(3.07 x 3.09 in.)
31.5 HP at 3,000 rpm86.0 Nm at 2,000 rpm
D13021.3 L
(79.3 cu.in.)
82.0 x 82.0 mm
(3.23 x 3.23 in.)
30.0 HP at 2,800 rpm
D13051.3 L
(76.95 cu.in.)
78.0 x 88.0 mm
(3.07 x 3.46 in.)
29.1 HP at 3,000 rpm
D14021.4 L
(85.1 cu.in.)
85.0 x 82.0 mm
(3.35 x 3.23 in.)
32.0 HP at 2,800 rpm
D14031.4 L
(85.0 cu.in.)
80.0 x 92.4 mm
(3.15 x 3.64 in.)
31.0 HP at 2,800 rpm
D15031.5 L
(91.4 cu.in.)
83.0 x 92.4 mm
(3.27 x 3.64 in.)
30.5 HP at 2,800 rpm
D1503-DI1.5 L
(91.4 cu.in.)
83.0 x 92.4 mm
(3.27 x 3.64 in.)
31.5 HP at 2,800 rpm
D1503T-DI1.5 L
(91.4 cu.in.)
83.0 x 92.4 mm
(3.27 x 3.64 in.)
42.0 HP at 2,800 rpm
D17031.7 L
(100.5 cu.in.)
87.0 x 92.4 mm
(3.43 x 3.64 in.)
34.5 HP at 2,800 rpm
D1703-DI1.7 L
(100.5 cu.in.)
87.0 x 92.4 mm
(3.43 x 3.64 in.)
35.0 HP at 2,800 rpm
D18031.8 L
(111.4 cu.in.)
87.0 x 102.4 mm
(3.43 x 4.04 in.)
36.1 HP at 2,800 rpm
D1803-DI1.8 L
(111.4 cu.in.)
87.0 x 102.4 mm
(3.43 x 4.04 in.)
36.5 HP at 2,600 rpm
Straight-4
V11001.1 L
(69.6 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
26.5 HP at 3,000 rpm55.6 Nm at 1,800 rpm
VH11001.1 L
(69.6 cu.in.)
72.0 x 70.0 mm
(2.83 x 2.76 in.)
30.8 HP at 3,600 rpm66.5 Nm at 2,400 rpm
V12001.2 L
(75.5 cu.in.)
75.0 x 70.0 mm
(2.95 x 2.76 in.)
28.5 HP at 3,000 rpm68.45 Nm at 1,800 rpm
V12051.2 L
(73.1 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
31.5 HP at 3,600 rpm67.5 Nm at 2,400 rpm
V1205T1.2 L
(73.1 cu.in.)
72.0 x 73.6 mm
(2.83 x 2.90 in.)
40.0 HP at 3,600 rpm66.2 Nm at 2,400 rpm
V15021.5 L
(90.7 cu.in.)
76.0 x 82.0 mm
(2.99 x 3.23 in.)
34.0 HP at 2,800 rpm
V15051.5 L
(91.4 cu.in.)
78.0 x 78.4 mm
(3.07 x 3.09 in.)
33.5 HP at 3,000 rpm
V17021.7 L
(105.7 cu.in.)
82.0 x 82.0 mm
(3.23 x 3.23 in.)
40.0 HP at 2,800 rpm
V19021.9 L
(113.6 cu.in.)
85.0 x 82.0 mm
(3.35 x 3.23 in.)
43.0 HP at 2,800 rpm
V20032.0 L
(121.9 cu.in.)
85.0 x 82.0 mm
(3.35 x 3.23 in.)
40.8 HP at 2,800 rpm
