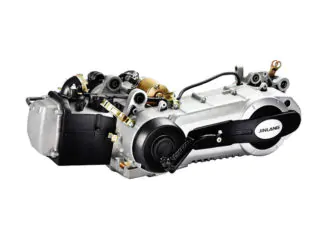

The Jinlang 1P57QMJ-B is a 149.6 cc (9.13 cu-in) single cylinder, 4-stroke, forced air-cooled/oil-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.
The 1P57QMJ-B engine cylinder bore is 57.4 mm (2.26 in) and the piston stroke is 57.8 mm (2.28 in) and compression ratio rating is 9.5:1. The Jinlang 1P57QMJ-B produced 8.3 PS (6.1 kW; 8.2 HP) at 7,500 rpm of maximum horsepower and 9.3 Nm (0.95 kg·m; 6.9 ft·lb at 6,000 rpm of torque. Minimum idling speed 1,700 rpm.
|Type||Four-stroke, single cylinder|
|Displacement||149.6 cc (9.13 cu-in)|
|Max. horsepower||8.3 PS (6.1 KW; 8.2 HP) at 7,500 rpm|
|Max. torque (crank PTO)||9.3 Nm (0.95 kg·m; 6.9 ft·lb at 6,000 rpm|
|Ignition system||Capacitance discharge ignition (CDI)|
|Fuel used||Unleaded gasoline (octane number 86 or higher)|
Dimensions and Weight
|Length, mm (in)||720 (28.3)|
|Width, mm (in)||450 (17.7)|
|Height, mm (in)||330 (13.0)|
|Dry weight, kg (lb)||28.5 (62.8)|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
