Torx engines

List of small vertical and horizontal gasoline engines for general-purpose applications, such as water pumps, lawn cutting equipment, shredders, high-pressure washer, hydraulic pumps, drive units.

EngineDisplacementPower output (max.)Bore & Stroke
VERTICAL ENGINES
TX140140 cc (9.15 cu.in.)4.0 HP at 3,600 rpm65.0 x 42.5 mm (2.56 x 1.67 in.)
TX160159 cc (9.7 cu.in.)5.0 HP at 3,600 rpm65.0 x 48.0 mm (2.56 x 1.89 in.)
TX200196 cc (11.96 cu.in.)6.5 HP at 3,600 rpm70.0 x 51.0 mm (2.76 x 2.01 in.)
HORIZONTAL ENGINES

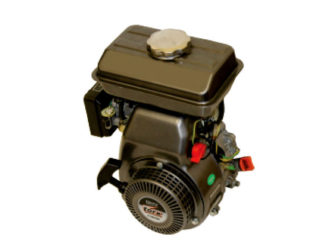

TX09797 cc (5.92 cu.in.)2.5 HP at 3,600 rpm52.0 x 46.0 mm (2.05 x 1.81 in.)

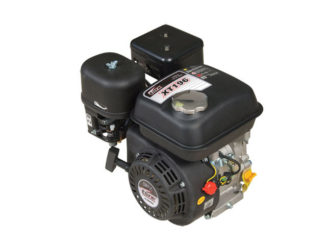

TX196196 cc (11.96 cu.in.)6.5 HP at 3,600 rpm68.0 x 54.0 mm (2.68 x 2.13 in.)

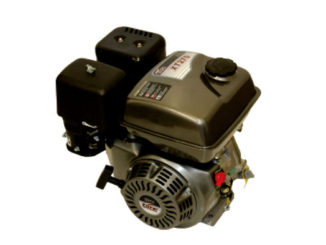

TX270270 cc (16.48 cu.in.)9.0 HP at 3,600 rpm77.0 x 58.0 mm (3.03 x 2.28 in)

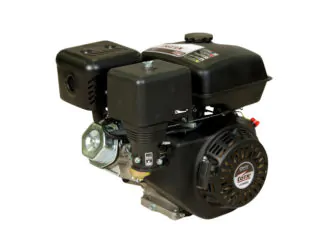

TX390390 cc (23.80 cu.in.)13.0 HP at 3,600 rpm88.0 x 64.0 mm (3.46 x 2.52 in)

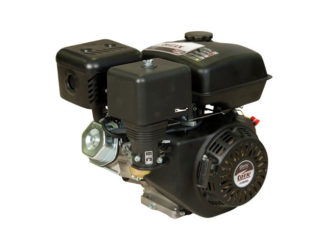

TX420420 cc (25.63 cu.in.)15.0 HP at 3,600 rpm90.0 x 66.0 mm (3.54 x 2.6 in)
