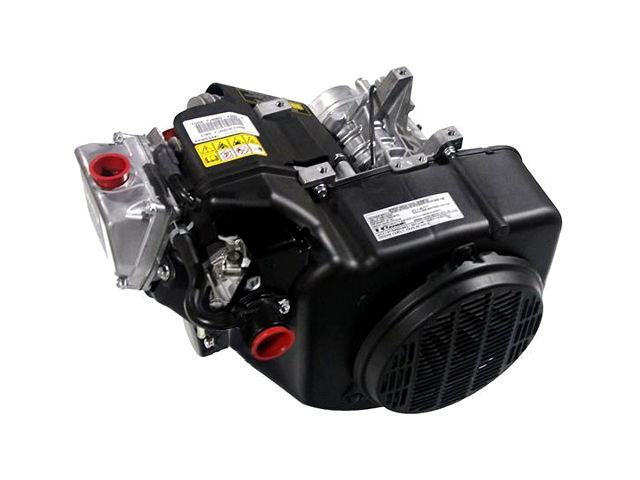

The Kawasaki FJ400D is a 0.4 l (401 cc, 24.47 cu-in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine with horizontal shaft manufactured by Kawasaki Heavy Industries LTd., for general-purpose applications.
The FJ400D engine has an OHV (overhead valve) design; float type carburetor with fixed main jet; transistorized flywheel magneto ignition system; diaphragm type fuel pulse pump; mechanical governor and shift-type electric starter.
Bore and stroke are 82.0 mm (3.23 in) and 76.0 mm (2.99 in), respectively. Compression ratio rating is 8.2:1.
The Kawasaki FJ400D motor produced 13.2 PS (9.7 kW; 13.0 HP) at 3,600 rpm of maximum horsepower and 26.5 Nm (2.7 kg·m; 19.6 ft·lb) at 2,400 rpm of torque.
General information
| Engine Specifications | |
| Model | FJ400D |
| Type | 4-stroke, OHV, single cylinder |
| Displacement | 401 cm 3 (24.47 cu-in) |
| Max. horsepower | 13.2 PS (9.7 KW; 13.0 HP) at 3,600 rpm |
| Max. torque (crank PTO) | 26.5 Nm (2.7 kg·m; 19.6 ft·lb) at 2,400 rpm |
| Carburetor | Float type with fixed main jet |
| Cooling system | Forced-air |
| Ignition system | Transistorized flywheel magneto |
| Lubricating system | Pressure feed |
| Starting system | Shift type electric starter |
| Stoping system | Ignition primary circuit ground |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Dimensions and Weight
| Kawasaki FJ400D | |
| Length | 407 mm (16.0 in) |
| Width | 472 mm (18.6 in) |
| Height | 319 mm (12.6 in) |
| Dry weight | 31.5 kg (69.5 lbs) |
Cylinder Block and Head
| Cylinder block | ||
| Compression ratio: | 8.2:1 | |
| Bore x stroke: | 82.0 x 76.0 mm (3.23 x 2.99 in) | |
| Cylinder internal diameter (standard): | 81.980-82.000 mm (3.2276-3.2283 in.) | |
| Piston skirt outer diameter (service limit): | 81.77 mm (3.2170 in) | |
| Number of piston rings (compression / oil): | 2/1 | |
| Connecting rod small end diameter (service limit): | 19.060 mm (0.7500 in.) | |
| Piston pin diameter: | 18.960 mm (0.746 in) | |
| Pistin ring groove clearance: | Top | 0.180 mm (0.0071 in) |
| Second | 0.180 mm (0.0071 in) | |
| Ring end gap: | Top | 0.700 mm (0.0280 in) |
| Second | 0.800 mm (0.0310 in) | |
| Oil | 1.000 mm (0.0390 in) | |
| Ring thickness: | Top | 1.400 mm (0.0551 in) |
| Second | 1.400 mm (0.0551 in) | |
| Cylinder head | ||
| Valve arrangement: | OHV | |
| Valves: | 2 | |
| Valve steam diameter: | INTAKE | 6.950 mm (0.2740 in) |
| EXHAUST | 6.930 mm (0.2730 in) | |
| Valve spring free length: | INTAKE | 32.6 mm (1.280 in) |
| EXHAUST | 32.6 mm (1.280 in) | |
Service Information
| Engine | |
| Maximum speed | 3,750 ± 50 rpm |
| Idle speed | 1,125 ± 75 rpm |
| Cylinder compression pressure | |
| Minimum | 294 kPa (43 psi) |
| Valve clearance | |
| Inlet | 0.10-0.15 mm (0.0039-0.0059 in) |
| Exhaust | 0.10-0.15 mm (0.0039-0.0059 in) |
| Oil system | |
| Oil type | 4-stroke or an equivalent (SF, SG, SH, or SJ) |
| Recommended oil | SAE 10W-30 |
| Oil capacity |
Without oil filter: 1.1 L With oil filter: 1.3 L |
| Ignition system | |
| Spark plug | NGK: BPR5ES |
| Spark plug gap | 0.7-0.8 mm (0.028-0.031 in) |
| Ignition coil air gap | 0.3 mm (0.012 in) |
What is good compression reading ?
Depends if it has automatic compression release. If it is a 2015 or newer chances are it does. 126 psi min on the older ones. 90 psi on the 2015 and up. Normally you would be told that you cant get an accurate compression reading on the ACR equipped engine and they are correct. However after diagnosing these things for a few years now, I can say I’m pretty sure that it’s safe to compression check it if it has the ACR. Leak down test is better if you can get one. No more than a 15% loss. 20% percent is pushing it. I hope this helps.
i loosened the exhaust valve pretty loose had 160 psi.. readjusted the exh valve to .005 had 50 psi….thats how i test compression on acr engine
What is the ring gap on the 401 cc Kawasaki engine
Is there a port that could feed an oil cooler on one of these ? Mine is from an EZGO golf cart.
Will this motor work on an 08 club car precedent?
I have a club car with 401 and it starts hard and acts like it’s running out of fuel all the time I’ve changed the fuel pump and plug but it has no power I just bought it and the papers say the engine only has 15 hours on new crankshaft.
Clean or replace the carburetor.
Looking for the correct piston, rings, and connecting rod, for this motor; I am rebuilding it. Any help in locating the parts is appreciated.
It only has 60 pounds of compression dry and 90 lbs of compression with a wet test I reall wonder if that’s enough and where is the compression release located
What type of fuel pump does it have.part if available
It’s a pulse pump. It uses the crankcase pressure oscillations to drive a diaphragm which in turn drives the pump. It sets directly on top of the tank. Checking for proper operation is simple. Disconnect the spark plug wire and fuel line at the carburetor and crank the engine. It should have pulse spurts of fuel. If so your good.
