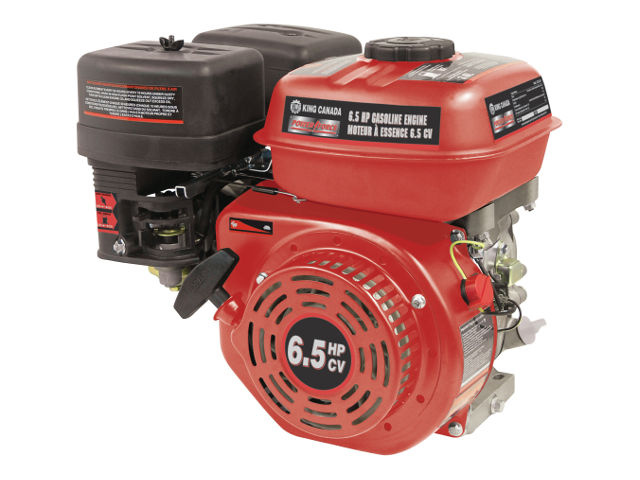

The Power Force KCG-65 is a 196 cc (12.0 cu.in.) single-cylinder air-coolled 4-stroke internal combustion small gasoline engine manufactured by King Canada Inc for for general-purpose applications, such as compressors, generators, pressure washers, go-karts and log splitters.
The KCG-65 engine has single-cylinder, inclined by 25°, OHV design and recoil starter. The KCG-65 engine compression ratio rating is 8.5:1, cylinder bore and piston stroke are 68.0 mm (2.68 in) and 54.0 mm (2.13 in), respectively.
The Power Force KCG-65 produced 6.5 HP (4.8 kW) of horsepower at 3,600 rpm and 13.2 N·m (1.35 kg·m, 9.7 ft·lb) of torque at 2,500 rpm.
General information
| Engine Specifications | |
| Model | KCG-65 |
| Type | 4-stroke, single cylinder |
| Displacement | 196 cm 3 (12.0 cu-in) |
| Max. horsepower | 6.5 HP (4.8 kW) at 3,600 rpm |
| Max. torque | 13.2 N·m (1.35 kg·m, 9.7 ft·lb) at 2,500 rpm |
| Carburetor | Horizontal, butterfly valve |
| Cooling system | Forced-air |
| Lubricating system | Splash system |
| Starting system | Recoil starter |
| Stoping system | Ground switch |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | 3.6 L |
| Rotation direction | Counterclockwise (view from PTO side) |
Dimensions and Weight
| KCG-65 | |
| Length, in | 13 |
| Width, in | 14-1/2 |
| Height, in | 13-1/4 |
| Weight, (lb) | 32.8 |
Maintenance data
| Oil system | |
| Oil type | Oil for 4-stroke engines (SG,SF/CC,CD) |
| Recommended oil | SAE 10W-30 |
| Oil capacity | 0.6 l (0.13 gal.) |
| Ignition system | |
| Spark plug | LD F7TC or equivalent (NGK BP6ES, Champion N9Y). |
