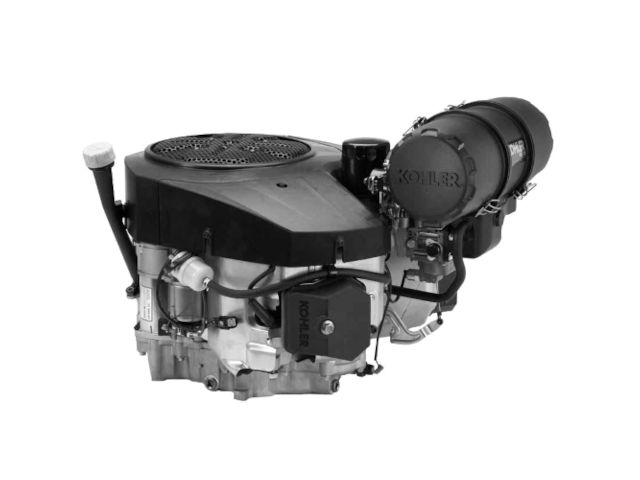

Kohler CV1000The Kohler CV1000 is a 999 cc, (61.0 cu·in) V-twin air-cooled four-stroke internal combustion gasoline engine from the Command PRO series, manufactured by Kohler Co.

The Kohler CV1000 engine has an OHV (overhead valve) design, an aluminum block with cast iron cylinder liners, vertical PTO-shaft, pressurized lubrication system. This engine is equipped with a two-barrel, side-draft carburetor with fixed main jets and the CDI/MDI or Digital Spark Advance Ignition (DSAI) ignition system.

Cylinder bore and piston stroke are 90.0 mm (3.54 in) and 78.5 mm (3.09 in), respectively. Compression ratio rating is 8.8:1.

The CV1000 engine produces 37.5 PS (27.6 KW; 37.0 HP) at 3,600 rpm of horsepower and 76.4 Nm (7.8 kg·m; 56.4 ft·lb) at 3,400 rpm of torque.

The breakdown of the engine code is as follows:

  • C – Command series
  • V – Vertical PTO shaft
  • 1000 – Numerical designation

General information

Engine Specifications
Model Command PRO CV1000
Type 4-stroke, OHV, V-twin
Displacement 999 cm 3 (61.0 cu-in)
Max. horsepower 37.5 PS (27.6 KW; 37.0 HP) at 3,600 rpm
40.5 PS (29.8 KW; 40.0 HP) at 3,600 rpm
Max. torque 76.4 Nm (7.8 kg·m; 56.4 ft·lb) at 3,400 rpm
Fuel system Two-barrel, side-draft carburetor with fixed main jets
Cooling system Forced-air
Ignition system CDI/MDI or Digital Spark Advance Ignition (DSAI)
Lubricating system Pressurized lubrication
Starting system Electric starter
Fuel used Unleaded gasoline (octane number 86 or higher)
Dimensions (L x W X H) 640 x 484 x 470 mm (25.2 x 19.1 x 18.5 in)
Dry weight 57.0 kg (125.7 lbs)


Cylinder Block and Head

Cylinder block
Compression ratio: 8.8:1
Bore x Stroke 90.0 mm X 78.5 mm (3.54 x 3.09 in)
Sleeve internal diameter 90.000-90.0025 mm (3.5433-3.5434 in)
Number of piston rings (compression / oil): 2 / 1
Piston style A
Thrust face outer diameter 89.953-89.967 mm (3.5414-3.542 in)
Piston pin outer diameter 18.995-19.000 mm (0.7478-0.7480 in)
Ring-to-groove side clearance: Top 0.040-0.080 mm (0.0016-0.0031 in)
Second 0.040-0.080 mm (0.0016-0.0031 in)
Oil 0.030-0.190 mm (0.0012-0.0075 in)
Ring end gap: Top 0.300-0.550 mm (0.0118-0.0217 in)
Second 0.300-0.550 mm (0.0118-0.0217 in)
Piston style B
Thrust face outer diameter 89.972 mm (3.5422 in)
Piston pin outer diameter 19.995-20.000 mm (0.7872-0.7874 in)
Ring-to-groove side clearance: Top 0.030-0.070 mm (0.001-0.0026 in)
Second 0.030-0.070 mm (0.001-0.0026 in)
Oil 0.060-0.190 mm (0.0022-0.0073 in)
Ring end gap: Top 0.125-0.304 mm (0.0049-0.0120 in)
Second 0.900-1.179 mm (0.0345-0.0464 in)
Crankshaft main journal diameter: 44.978-45.000 mm (1.7708-1.7717 in)
Crankpin journal diameter: 43.982-44.000 mm (1.7316-1.7323 in)
Cylinder Head
Valve Arrangement: OHV, gear drive
Valves: 4 (2 per cylinder)
Valve head diameter: INTAKE 38.625-38.685 mm (1.5207-1.523 in)
EXHAUST 31.625-31.825 mm (1.2451-1.253 in)
Stem outer diameter: INTAKE 6.982-7.000 mm (0.2749-0.2756 in)
EXHAUST 6.970-6.988 mm (0.2744-0.2751 in)
Camshaft journal diameter: 19.962-19.975 mm (0.7859-0.7864 in)

Tightening torque specs

Tightening torque specs
Cylinder head Bolt (torque in 2 increments):
Step 1: 23.7 Nm (2.4 kgf·m; 17.5 lb·ft)
Step 2: 46.9 Nm (4.8 kgf·m; 34.6 lb·ft)
Connecting rod cap 11.0 Nm (1.1 kgf·m; 8.1 lb·ft)
Flywheel 69.8 Nm (7.1 kgf·m; 51.5 lb·ft)
Spark plug 27 Nm (2.75 kg·m; 20.0 ft·lb)

Service Information

Oil system
Oil type API SJ or higher
Recommended oil SAE 10W-30, KOHLER PRO 10W-50
Oil capacity W/o oil filter: 1.9 liters (2.0 US.qts, 1.7 Imp. qts)
With oil filter: 2.6 liters (2.75 US.qts, 2.3 Imp. qts)
Ignition system
Spark plug Champion RC12YC
Spark plug gap 0.76 mm (0.030 in)
Ignition module air gap 0.280-0.330 mm (0.011-0.013 in)
