Kohler XT-8

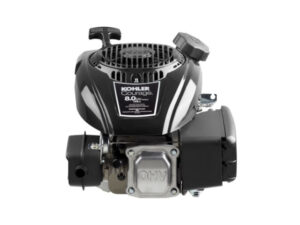

Kohler XT-8The Kohler XT-8 is a 173 cc (10.6 cu·in) single-cylinder air-cooled four-stroke internal combustion gasoline engine from the Courage XT series, manufactured by Kohler Co.

The Kohler XT8 engine has an OHV (overhead valve) design, an aluminum block with cast iron cylinder liners, vertical PTO-shaft, splash type lubrication system. This engine is equipped with a fixed main jet carburetor and dependable electronic magneto ignition system.

A 70.0 mm (2.75 in) cylinder bore and 45.0 mm (1.80 in) piston stroke give the XT-8 engine a total of 173 cc of displacement. The compression ratio rating is 8.5:1.

This engine produces 5.3 PS (3.9 KW; 5.2 HP) at 3,600 rpm of horsepower and 10.8 Nm (1.1 kg·m; 8.0 ft·lb) at 2,800 rpm of peak torque.

The breakdown of the engine code is as follows:

  • XT – XT-series
  • 8 – 8.00 lb-ft of peak torque

General information

Engine Specifications
ModelXT-8
Type4-stroke, OHV, single-cylinder
Displacement173 cm 3 (10.6 cu-in)
Max. horsepower5.3 PS (3.9 KW; 5.2 HP) at 3,600 rpm
Max. torque10.8 Nm (1.1 kg·m; 8.0 ft·lb) at 2,800 rpm
Fuel systemCarburetor with a fixed main jet
Cooling systemForced-air
Ignition systemDependable electronic magneto
Lubricating systemSplash type
Starting systemRecoil starter
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.4 liters (1.48 US.qts, 1.23 Imp. qts)
Dimensions (L x W X H)434 x 353 x 278 mm (17.1 x 13.9 x 11.0 in)
Dry weight13.4 kg (29.5 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio:8.5:1
Bore x Stroke70.0 mm X 45.0 mm (2.75 x 1.80 in)
Sleeve internal diameter70.000-70.020 mm (2.7550-2.7560 in)
Number of piston rings (compression / oil):2 / 1
Thrust face outer diameter69.960-69.980 mm (2.7543-2.7551 in)
Piston pin outer diameter17.990-17.996 mm (0.7082-0.7085 in)
Ring-to-groove side clearance:Top Before s/n 40244XXXXX: 0.020-0.060 mm (0.0007-0.0023 in)
After s/n 40243XXXXX: 0.010-0.020 mm (0.0004-0.0008 in)
Second Before s/n 40244XXXXX: 0.020-0.060 mm (0.0007-0.0023 in)
After s/n 40243XXXXX: 0.010-0.020 mm (0.0004-0.0008 in)
Ring end gap:Top Before s/n 40244XXXXX: 0.250-0.400 mm (0.0098-0.0157 in)
After s/n 40243XXXXX: 0.100-0.250 mm (0.0039-0.0098 in)
Second Before s/n 40244XXXXX: 0.250-0.400 mm (0.0098-0.0157 in)
After s/n 40243XXXXX: 0.300-0.500 mm (0.0118-0.0197 in)
Bearing journal outer diameter: Flywheel:
24.975-24.989 mm (0.9832-0.9838 in)
PTO:
Early: 25.370-25.385 mm (0.9988-0.9994 in)
Later: 26.950-26.970 mm (1.0610-1.0620 in)
Crankpin journal diameter:29.985-29.995 mm (1.1805-1.1809 in)
Cylinder Head
Valve Arrangement:OHV, gear drive
Valves:4 (2 per cylinder)
Valve head diameter:INTAKE25.875-26.125 mm (1.0187-1.0285 in)
EXHAUST23.875-24.125 mm (0.9399-0.9498 in)
Stem outer diameter:INTAKE5.465-5.480 mm (0.2152-0.2157 in)
EXHAUST5.465-5.480 mm (0.2152-0.2157 in)

Tightening torque specs

Tightening torque specs
Cylinder head (torque in 2 increments) Step 1: 14.0 Nm (1.4 kgf·m; 10.3 ft·lb)
Step 2: 27.8 Nm (2.8 kgf·m; 20.5 ft·lb)
Connecting rod12.5 Nm (1.3 kgf·m; 9.2 ft·lb)
Flywheel51.5 Nm (5.3 kgf·m; 38 ft·lb)
Spark plug27.0 Nm (2.75 kg·m; 20.0 ft·lb)

Service Information

Valve clearance
Intake0.0762-0.1270 mm (0.0030-0.0050 in)
Exhaust0.0762-0.1270 mm (0.0030-0.0050 in)
Oil system
Oil typeAPI SJ or higher
Recommended oilSAE 10W-30
Oil capacity0.6 liters (0.63 US.qts, 0.53 Imp. qts)
Ignition system
Spark plugKohler 141-32-11-S
Spark plug gap0.76 mm (0.0300 in)
Ignition module air gap0.254 mm (0.010 in)
