Kohler ECH740

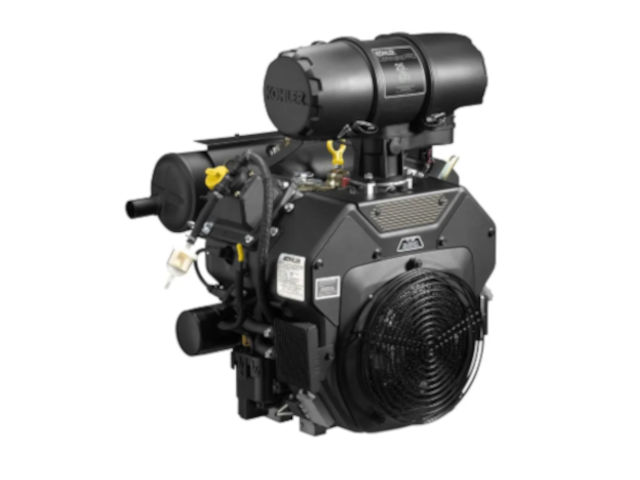

Kohler ECH740The Kohler ECH740 is a 747 cc, (45.6 cu·in) V-twin air-cooled four-stroke internal combustion gasoline engine from the Command PRO EFI series, manufactured by Kohler Co.

The Kohler ECH740 engine has an OHV (overhead valve) design, an aluminum block with cast iron cylinder liners, a horizontal PTO-shaft, pressurized lubrication system. This engine is equipped with an EFI (Electronic Fuel Injection) system and electronic ignition system.

The cylinder bore and the piston stroke are 83.0 mm (3.27 in) and 69.0 mm (2.72 in), respectively. Compression ratio rating is 9.1:1.

The Kohler ECH740 engine produced 25.3 PS (18.6 KW; 25.0 HP) at 3,600 rpm of horsepower and 54.1 Nm (5.5 kg·m; 39.9 ft·lb) at 2,400 rpm of torque.

The breakdown of the engine code is as follows:

  • E – EFI (Electronic Fuel Injection)
  • C – Command series
  • H – Horizontal PTO shaft
  • 740 – Numerical designation

General information

Engine Specifications
Model Command PRO EFI ECH740
Type 4-stroke, OHV, V-twin
Displacement 747 cm 3 (45.6 cu-in)
Max. horsepower 25.3 PS (18.6 KW; 25.0 HP) at 3,600 rpm
Max. torque 54.1 Nm (5.5 kg·m; 39.9 ft·lb) at 2,400 rpm
Fuel system EFI (Electronic Fuel Injection)
Cooling system Forced-air
Ignition system Electronic ignition system
Lubricating system Pressurized lubrication
Starting system Electric starter
Fuel used Unleaded gasoline (octane number 86 or higher)
Dimensions (L x W X H) 376 x 480 x 622 mm (14.8 x 18.9 x 24.5 in)
Dry weight 49.0 kg (108.0 lbs)

Cylinder Block and Head

Cylinder block
Compression ratio: 9.1:1
Bore x Stroke 83.0 mm X 69.0 mm (3.27 x 2.72 in)
Sleeve internal diameter 83.006-83.031 mm (3.2680-3.2689 in)
Number of piston rings (compression / oil): 2 / 1
Piston style A
Thrust face outer diameter 82.949-82.967 mm (3.2657-3.2664 in)
Piston pin outer diameter 16.995-17.000 mm (0.6691-0.6693 in)
Ring-to-groove side clearance: Top 0.050-0.095 mm (0.0019-0.0037 in)
Second 0.030-0.075 mm (0.0012-0.00307 in)
Oil 0.010-0.110 mm (0.0004-0.0043 in)
Ring end gap: Top 0.250-0.560 mm (0.0004-0.0043 in)
Second 0.250-0.560 mm (0.0004-0.0043 in)
Piston style B
Thrust face outer diameter 82.978 mm (3.2668 in)
Piston pin outer diameter 16.995-17.000 mm (0.6691-0.6693 in)
Ring-to-groove side clearance: Top 0.030-0.070 mm (0.0010-0.0026 in)
Second 0.030-0.070 mm (0.0010-0.0026 in)
Oil 0.060-0.190 mm (0.0022-0.0073 in)
Ring end gap: Top 0.189-0.277 mm (0.0074-0.0109 in)
Second 1.519-1.797 mm (0.0598-0.0708 in)
Crankshaft
Crankshaft main journal diameter: 40.913-40.935 mm (1.6107-1.6116 in)
Crankpin journal diameter: 35.955-35.973 mm (1.4155-1.4163 in)
Cylinder Head
Valve Arrangement: OHV, gear drive
Valves: 4 (2 per cylinder)
Valve head diameter: INTAKE 33.370-33.630 mm (1.3138-1.324 in)
EXHAUST 29.370-29.630 mm (1.1563-1.1665 in)
Stem outer diameter: INTAKE 6.982-7.000 mm (0.2749-0.2756 in)
EXHAUST 6.970-6.988 mm (0.2744-0.2751 in)

Tightening torque specs

Tightening torque specs
Cylinder head Nut (torque in 2 increments):
Step 1: 16.9 Nm (1.72 kg·m; 12.5 ft·lb)
Step 2: 35.5 Nm (3.62 kg·m; 26.2 ft·lb)
Bolt (torque in 2 increments)
Step 1: 22.6 Nm (2.31 kg·m; 16.7 ft·lb)
Step 2: 41.8 Nm (4.26 kg·m; 30.8 ft·lb)
Flywheel 71.6 Nm (7.3 kgf·m; 52.8 ft·lb)
Spark plug 27 Nm (2.75 kg·m; 20.0 ft·lb)

Service Information

Oil system
Oil type API SJ, or higher
Recommended oil SAE 10W-30, Kohler PRO 10W-50
Oil capacity W/o oil filter: 1.7 L (1.8 US. qt, 1.5 Imp. qt.)
With oil filter: 1.9 L (2.0 US.qts, 1.7 Imp. qts)
Ignition system
Spark plug Champion RC12YC or XC12YC
Spark plug gap 0.76 mm (0.030 in)
Ignition module air gap 0.280-0.330 mm (0.011-0.013 in)
