Kubota Z600

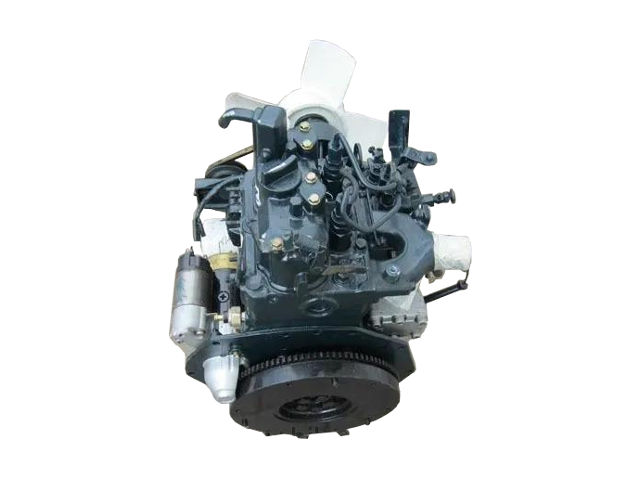

Kubota Z600The Kubota Z600 is a 0.6 L (570 cc, 34.78 cu-in) straight-two, water-cooled naturally aspirated diesel engine from Kubota 70 mm series.

The Kubota Z600 engine has a spherical type сombustion сhamber with glow plug, Bosch K-type mini fuel injection pump, and Bosch throttle type injection nozzle. The compression ratio rating is 22.0. The cylinder bore and the piston stroke are 72.0 mm (2.83 in) and 70.0 mm (2.76 in), respectively. The Z600 diesel engine produced 14.1 PS (10.4 kW; 13.9 HP) at 3,200 rpm of gross (intermittent) horsepower and 32.9 N·m (3.4 kg·m, 24.2 ft·lb) at 2,000 rpm of torque.

The breakdown of the engine code is as follows:

  • Z – 2-cylinders
  • 6 – Approximate displacement 600 cc

General information

Engine Specifications
Engine code Z600-B
Layout Straight-2, vertical diesel engine
Fuel type Diesel fuel No.2-D
Displacement 0.6 L, 570 cm3 (34.78 cu in)
Fuel injection pump Bosch K-type type mini fuel injection pump
Fuel nozzle Bosch throttle type
Starting system Electric starting with 12V (0.8 kW) starter
Starting support device Glow plug in combustion chamber
Governor Centrifugal ball mechanical governor
Power adder None
Max. Horsepower 12.6 PS (9.3 kW; 12.5 HP) at 3,200 rpm
Torque output 32.9 N·m (3.4 kg·m, 24.2 ft·lb) at 2,000 rpm
Firing order 1-2
Dimensions (L x W x H): 520 x 389 x 504 mm (20.5 x 15.4 x 19.8 in)
Weight 69.7 kg (153.7 lbs)

Cylinder block

Cylinder block
Compression ratio: 22.0:1
Cylinder bore: 72.0 mm (2.83 in)
Piston stroke: 70.0 mm (2.76 in)
Number of piston rings (compression / oil): 2 / 1
Cylinder inner diameter: 72.000-72.019 mm (2.8346-2.8354 in)
Piston skirt diameter
Piston ring side clearance: Second 0.085-0.112 mm (0.0033-0.0044 in)
Oil 0.020-0.055 mm (0.0008-0.0022 in)
Piston ring end gap: Top 0.250-0.400 mm (0.0098-0.0157 in)
Second 0.250-0.400 mm (0.0098-0.0157 in)
Oil 0.250-0.400 mm (0.0098-0.0157 in)
Piston pin outer diameter 20.002-20.011 mm (0.7875-0.7878 in)
Crankshaft main journal diameter: 43.934-43.950 mm (1.7297-1.7303 in)
Crankpin diameter: 36.959-36.975 mm (1.4551-1.4557 in)

Cylinder head

Cylinder head
Valves: 4 (2 valves per cylinder)
Valve timing: INTAKE Open: 20° B.T.D.C.
Close: 45° B.T.D.C.
EXHAUST Open: 50° B.T.D.C.
Close: 15° B.T.D.C.
Valve seat width: INTAKE 2.120 mm (0.0835 in)
EXHAUST 2.120 mm (0.0835 in)
Valve stem diameter: INTAKE 6.960-6.975 mm (0.274-0.2746 in)
EXHAUST 6.960-6.975 mm (0.274-0.2746 in)
Valve spring free length: INTAKE 35.100-34.800 mm (1.3819-1.3701 in)
EXHAUST 35.100-34.800 mm (1.3819-1.3701 in)
Camshaft lobe height: INTAKE 26.880 mm (1.0583 in)
EXHAUST 26.880 mm (1.0583 in)
Camshaft journal diameter: 32.934-32.950 mm (1.2966-1.2972 in)

Maintenance data

Valve clearance
Intake valve 0.145-0.185 mm (0.0057-0.0073 in)
Exhaust valve 0.145-0.185 mm (0.0057-0.0073 in)
Compression pressure
Standard 3.09 MPa, 31.5 kgf/cm2, 448 psi
Cooling system system
Coolant capacity: 3.0 liters (3.2 US.qts, 2.6 Imp. qts)
Oil system
Recommended engine oil CC or higher
SAE Viscosity Number SAE 10W-30, 10W-40
Engine oil capacity 2.55 L (2.69 US. qt, 2.24 Imp. qt.)
