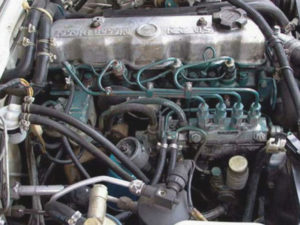

The Nissan SD22 is a 2.2 l (2,164 cc) straight-four, water-cooled diesel engine from SD family, manufactured by the Minsei Diesel Industries, Ltd., which was renamed Nissan Diesel Motor Co., Ltd in 1960.
The engine was produced as MN 22 by Chrysler Marine (under license) for marine applications during the 1980s. The marine version, using a water-cooled exhaust manifold and expansion tank is also still available from other manufacturers.
The compression ratio is 20.8:1. Cylinder bore and piston stroke are 83.0 mm (3.27 in) and 100.0 mm (3.94 in), respectively. The Nissan SD22 engine produced from 61.0 PS (45.0 KW; 60.0 HP) at 4,000 rpm to 71.0 PS (52.0 KW; 70.0 HP) at 4,000 rpm of horsepower.
The SD22 engine was equipped with Kiki-Bosch in-line fuel injection pump on most vehicle models. The Nissan SD22 was used in the Nissan Caravan E23 with Kiki-Bosch VE fuel injection pump, in Taiwan the engine was used in the Nissan Atlas F22 with C.A.V-D.P.A. fuel injection pump.
The breakdown of the engine code is as follows:
- SD – Engine Family
- 22 – 2.2 Liter Displacement
General information
Engine Specifications | |
Engine code | SD22 |
Layout | Straight-4, vertical |
Production | – |
Displacement | 2.2 l (2,164 cc, 132.06 cu-in) |
Max. Horsepower | 61.0 PS (45.0 KW; 60.0 HP) at 4,000 rpm 71.0 PS (52.0 KW; 70.0 HP) at 4,000 rpm |
Fuel type | Diesel |
Injection pump | Diesel Kiki-Bosch (in-line or VE) C.A.V-D.P.A. (Taiwan only) |
Power adder | None |
Torque output | – |
Firing order | 1-3-4-2 |
Cooling system | Liquid-cooling |
Dimensions (L x H x W): | – |
Weight |
Cylinder block
The cylinder block has a monoblock high-strength cast-iron structure with replaceable dry liners. The SD22 had two modifications with three or five main bearings. The engine has a drop-forged steel crankshaft with balance weights, all main and connecting rod bearing surfaces are induction-hardened. Bearings are the precision type, steel-backed tri-metal shell.
The Nissan SD22 motor has an aluminum alloy piston for high strength, lightweight and good heat conductivity; three compression and two oil control rings (before 1981) and two compression and single oil control ring (after 1981), they are chrome-plated for long service life. The cylinder bore is 83 mm, piston stroke is 100 mm and the compression ratio rating is 20.8:1.
Cylinder block | ||
Cylinder block alloy | Cast iron | |
Compression ratio: | 20.8:1 | |
Cylinder bore: | 83.0 mm (3.27 in) | |
Piston stroke: | 100.0 mm (3.94 in) | |
Number of piston rings (compression / oil): | Before 1981: 3 / 2 After 1981: 2 / 1 | |
Number of main bearings: | 3 or 5 | |
Block Height: | 268.00 mm (10.55 in) | |
Cylinder liner inner diameter: | 82.995-83.025 mm (3.2675-3.2687 in) | |
Piston with 3 rings | ||
Piston skirt diameter | 82.905-82.945 mm (3.2640-3.2655 in) | |
Piston ring side clearance (№1): | 0.060-0.100 mm (0.0024-0.0039 in) | |
Piston ring side clearance (№2): | 0.040-0.080 mm (0.0016-0.0031 in) | |
Piston ring side clearance (№3): | 0.020-0.060 mm (0.0008-0.0024 in) | |
Piston ring end gap (№1): | 0.300-0.450 mm (0.0118-0.0177 in) | |
Piston ring end gap (№2): | 0.200-0.350 mm (0.0079-0.0138 in) | |
Piston ring end gap (№3): | 0.150-0.300 mm (0.0059-0.0118 in) | |
Piston with 5 rings | ||
Piston skirt diameter | 82.845-82.885 mm (3.2616-3.2632 in) | |
Piston ring side clearance (№1): | 0.060-0.100 mm (0.0024-0.0039 in) | |
Piston ring side clearance (№2): | 0.040-0.080 mm (0.0016-0.0031 in) | |
Piston ring side clearance (№3): | 0.040-0.080 mm (0.0016-0.0031 in) | |
Piston ring side clearance (№4): | 0.020-0.060 mm (0.0008-0.0024 in) | |
Piston ring side clearance (№5): | 0.020-0.060 mm (0.0008-0.0024 in) | |
Piston ring end gap (№1): | 0.300-0.450 mm (0.0118-0.0177 in) | |
Piston ring end gap (№2): | 0.200-0.350 mm (0.0079-0.0138 in) | |
Piston ring end gap (№3): | 0.200-0.350 mm (0.0079-0.0138 in) | |
Piston ring end gap (№2): | 0.150-0.300 mm (0.0059-0.0118 in) | |
Piston ring end gap (№3): | 0.150-0.300 mm (0.0059-0.0118 in) | |
Piston pin outer diameter | 25.993-26.000 mm (1.0233-1.0236 in) | |
Piston pin bore diameter | 26.025-26.038 mm (1.0246-1.0251 in) | |
Connecting rod center distance: | 170.0 mm (6.69 in) | |
Crankshaft journal diameter: | 70.907-70.920 mm (2.7916-2.7921 in) | |
Crankpin diameter: | 52.913-52.926 mm (2.0832-2.0837 in) | |
Crankshaft center distance: | 50.00 mm (1.9685 in) |
Cylinder head
The SD22 has a one-piece high-strength cast iron cylinder head, special cast-iron valve inserts are shrink-fitted. It has high-quality cast iron camshaft, lobes are specially processed to improve hardness and durability.
The engine has OHV design with two valves per cylinder: one intake and exhaust made of special heat-resistant steel. The exhaust valve with a stellite-treated surface. Intake valves are 38.0 mm in diameter, and the exhaust valves are 32.0 mm.
Cylinder head | |
Cylinder head alloy | Cast iron |
Valve Arrangement: | OHV |
Valves: | 8 (2 valves per cylinder) |
Intake valves diameter: | 38.0 mm (1.496 in) |
Exhaust valves diameter: | 32.0 mm (1.260 in) |
Valves length: | 117.0 mm (4.61 in) |
Intake valve stem diameter: | 7.970-7.985 mm (0.3138-0.3144 in) |
Exhaust valves stem diameter: | 7.945-7.960 mm (0.3128-0.3134 in) |
Camshaft journal diameter: | Front:45.434-45.447 mm (1.7887-1.7892 in) Center:43.897-43.910 mm (1.7282-1.7287 in) Front:41.218-41.231 mm (1.6228-1.6233 in) |
Cam height: | 37.28-37.32 mm (1.4677-1.4693 in) |
Problems and malfunctions
The SD family of Nissan diesel engines are very reliable, strong, and ask for little in the way of maintenance. The engine uses industry-standard BOSCH injection system components (license-built by Diesel Kiki) and is known worldwide as a reliable, long-lived powerplant.
Maintenance data
Valve clearance (HOT) | |
Intake valve | 0.35 mm (0.014 in) |
Exhaust valve | 0.35 mm (0.014 in) |
Compression pressure | |
Standard | 30 kg/cm2 (29.4 bar, 427 psi) / 200 rpm |
Minimun | 25 kg/cm2 (24.5 bar, 356 psi) / 200 rpm |
Compression differential limit between cylinders | 3 kg/cm2 (2.9 bar, 43 psi) / 200 rpm |
Oil system | |
Recommended engine oil | Semi Synthetic 10W-30 or 10W-40 (“CD” or higher: “CH”, “CI”) |
Engine oil capacity | 6.5 liters (6.87 US.qts, 5.72 Imp. qts) |
Fuel system | |
Injection timing | Bosch-Kiki in-line: 20° B.T.D.C. / 600 rpm Bosch-Kiki VE: 8° B.T.D.C. / 600 rpm C.A.V-D.P.A.: 14.5° B.T.D.C. / 600 rpm |
Idling | Bosch-Kiki in-line and VE: 550-600 rpm (withuot power steering) 650-750 rpm (wiht power steering) C.A.V-D.P.A.: 650 rpm |
Max engine speed under no load | Bosch-Kiki in-line: 4,200-4,400 rpm Bosch-Kiki VE: 4,500-4,700 rpm C.A.V-D.P.A.: 4,250-4,300 rpm |
Glow plugs | NGK Y-103 |
Tightening torque specs
Tightening torque specs (engine outer parts) | |
Water outlet bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Water pump bolt (M8) | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Water pump bolt (M10) | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
Manifold bolt and nut | 15-18 Nm; 1.5-1.8 kg·m; 11-13 ft·lb |
Injection pump nut (in-line) | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
Injection pump nut (VE type) | Nut: 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb Bolt: 16-22 Nm; 1.6-2.2 kg·m; 12-16 ft·lb |
Injection pump nut (C.A.V-D.P.A.) | 15-20 Nm; 1.5-2.0 kg·m; 11-14 ft·lb |
Injection nozzle to cylinder head | Type 1: 59-69 Nm; 6.0-7.0 kg·m; 43-51 ft·lb Type 2: 69-78 Nm; 7.0-8.0 kg·m; 51-58 ft·lb |
Oil cooler bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Oil cooler pipe nut | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Timing gear cover bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Injection pump timer nut | 59-69 Nm; 6.0-7.0 kg·m; 43-51 ft·lb |
Injection tube flare nut | 29-34 Nm; 3.0-3.5 kg·m; 22-25 ft·lb |
Spill tube with cap nut | 39-49 Nm; 4.0-5.0 kg·m; 29-34 ft·lb |
Oil filter bracket bolt | 26-36 Nm; 2.7-3.7 kg·m; 20-27 ft·lb |
Alterator bracket bolt | 26-36 Nm; 2.7-3.7 kg·m; 20-27 ft·lb |
Alterator to adjusting bar bolt | 11-14 Nm; 1.1-1.4 kg·m; 20-27 ft·lb |
Diesel pump controller bolt | 11-13 Nm; 1.1-1.3 kg·m; 7-9 ft·lb |
Diesel pump controller bracket bolt | 45-61 Nm; 4.6-6.2 kg·m; 33-45 ft·lb |
Thermostat housing | 10-131 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Engine internal parts | |
Main bearing cap bolt | 167-172 Nm; 17.0-17.5 kg·m; 123-127 ft·lb |
Crank pulley nut | 294-324 Nm; 30-33 kg·m; 217-239 ft·lb |
Flywheel bolt | 44-49 Nm; 4.5-5.0 kg·m; 33-36 ft·lb |
Flywheel bolt w/washer | 127-147 Nm; 13-15 kg·m; 94-108 ft·lb |
Front cover bolt (M6) | 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb |
Front cover bolt (M8) | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Front end plate bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Camshaft gear bolt | 44-49 Nm; 4.5-5.0 kg·m; 33-36 ft·lb |
Oil pump bolt | 13-19 Nm; 1.3-1.9 kg·m; 9-14 ft·lb |
Oil pan bolt | 7-10 Nm; 0.7-1.0 kg·m; 5.1-7.2 ft·lb |
Cylinder head bolt | Sub: 44-54 Nm; 4.5-5.5 kg·m; 33-40 ft·lb Main: 118-127 Nm; 12-13 kg·m; 87-94 ft·lb |
Rocker arm shaft bolt | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
Rocker arm lock nut | 20-25 Nm; 2.0-2.5 kg·m; 14-18 ft·lb |
Camshaft thrust plate bolt | 4-6 Nm; 0.4-0.6 kg·m; 2.9-4.3 ft·lb |
Connecting rod big end nut | 51-56 Nm; 5.2-5.7 kg·m; 38-41 ft·lb |
Rocker cover bolt | 10-13 Nm; 1.0-1.3 kg·m; 7-9 ft·lb |
Oil jet (for piston) | 29-39 Nm; 3.0-4.0 kg·m; 22-29 ft·lb |
Type 1: Part № of injection nozzle: 16600-90060; 16600-36W00; 16600-T9000
Type 2: Part № of injection nozzle: 16600-37502; 16600-90012; 16600-90019; 16600-J5571; 16600-T3401; 16600-T3470; 16600-T6200; 16600-T6201; 16600-Y8400; 16600-Y8401
Vehicle applications
Model | Years Produced |
Nissan Caball QC141 | 1963-1965 |
Nissan Caball QC142 | 1965-1966 |
Nissan Caball C240 | 1966-1976 |
Nissan Junior Q40, Q41 | 1964-1970 |
Nissan Junior 140 | 1970-1982 |
Nissan Cedric 130 | 1966-1971 |
Nissan Cedric 230 | 1971-1975 |
Nissan Cedric 330 | 1976-1979 |
Nissan Cedric 430 | – |
Datsun 720 | 1980-1983 |
Nissan Caravan E20, E23 | – |
Nissan Homer F20 | – |
Nissan Datsun Cabstar (JDM) | – |
Nissan Atlas F22 (Taiwan) | – |
Prince Light Coach | 1968-1976 |
Nissan / Prince Clipper | – |
Nissan Civilian GC 240/340 | 1971-1973 |
