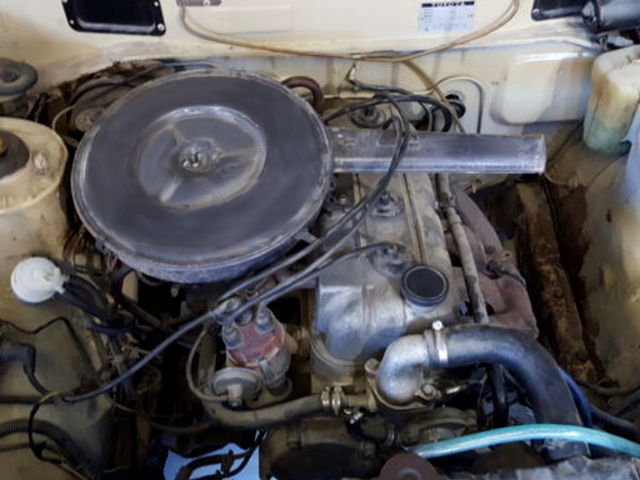

The Toyota 2T is a 1.6 liter (1,588 cc, 96.9 cu in) straight-four, four-stroke carburetor gasoline engine from Toyota T-family. TheToyota 2T engine was produced from 1970 through 1984.
This engine used OHV (overhead valve) design with two valves per cylinder (8 valves in total), cast-iron cylinder block and an alloy cylinder head with hardened valve seats and a hemispherical combustion chamber design (HEMI). The 2T engine utilizes a timing chain.
Bore and stroke are 85.0 mm (3.35 in) and 70.0 mm (2.76 in), respectively.
The 2T engine was available in different modifications:
- The 2T engine was produced from 1970 through 1974 for Japan domestic market. This engine has a single down draught twin barrel carburetor and produced 102 PS (75 kW; 100 HP) at 6,000 rpm of horsepower and 135 Nm (13.7 kg·m; 100 ft·lb) at 3,800 rpm of torque. Compression ratio rating is 8.5:1.
- The 2T-B engine was produced from 1970 through 1974 for Japan domestic market. This engine has a two down draught twin barrel carburetors and produced 106 PS (78 kW; 105 HP) at 6,000 rpm of horsepower and 138 Nm (14.0 kg·m; 102 ft·lb) at 4,200 rpm of peak torque. Compression ratio rating is 9.4:1.
- The 2T-BR engine was produced from 1971 through 1976 for Japan domestic market with low compression. This engine has a two down draught twin barrel carburetor and produced 100 PS (74 kW; 99 HP) at 6,000 rpm of horsepower and 136 Nm (13.9 kg·m; 100.4 ft·lb) at 4,200 rpm of peak torque. Compression ratio rating is 8.5:1.
- The 2T-C engine was produced from 1970 through 1979 for export market and used emission control system. This engine has a single down draught twin barrel carburetor and produced 88 PS (65 kW; 87 HP) at 6,000 rpm of maximum power and 124 Nm (12.5 kg·m; 91 ft·lb) at 3,800 rpm of peak torque. Compression ratio rating is 8.5:1.
- The 2T-U engine was produced from 1975 for JDM and used Toyota Total Clean System (TTC-C). This engine has a single down draught twin barrel carburetor and produced 90 PS (66 kW; 88 HP) at 6,000 rpm of maximum power and 127 Nm (13.0 kg·m; 94.4 ft·lb) at 3,800 rpm of peak torque. Compression ratio rating is 9.0:1.
- The 2T-J engine was produced for JDM`s commercial vehicles. This engine has a single down draught twin barrel carburetor and produced 93 PS (68 kW, 92 HP) at 6,000 rpm of power and 128 N⋅m (13.1 kg⋅m, 95.0 ft·lb) at 3,800 rpm of peak torque. Compression ratio rating is 8.5:1.
The breakdown of the engine code is as follows:
- 2 – 2nd generation engine
- T – Engine family
General information
| Engine Specifications | |
| Engine code | 2T |
| Layout | Four stroke, Inline-4 (Straight-4) |
| Fuel type | Gasoline |
| Production | 1970-1984 |
| Displacement | 1.6 L, 1,588 cm3 (96.9 cu in) |
| Fuel system | Carburetor |
| Power adder | None |
| Max. horsepower |
2T: 102 PS (75 kW; 100 HP) at 6,000 rpm 2T-B: 106 PS (78 kW; 105 HP) at 6,000 rpm 2T-BR: 100 PS (74 kW; 99 HP) at 6,000 rpm 2T-C: 88 PS (65 kW; 87 HP) at 6,000 rpm 2T-U: 90 PS (66 kW; 88 HP) at 6,000 rpm 2T-J: 93 PS (68 kW, 92 HP) at 6,000 rpm |
| Max. torque |
2T: 135 Nm (13.7 kg·m; 100 ft·lb) at 3,800 rpm 2T-B: 138 Nm (14.0 kg·m; 102 ft·lb) at 4,200 rpm 2T-BR: 136 Nm (13.9 kg·m; 100.4 ft·lb) at 4,200 rpm 2T-C: 124 Nm (12.5 kg·m; 91 ft·lb) at 3,800 rpm 2T-U: 127 Nm (13.0 kg·m; 94.4 ft·lb) at 3,800 rpm 2T-J: 128 N⋅m (13.1 kg⋅m, 95.0 ft·lb) at 3,800 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | – |
Cylinder block
The Toyota 2T motor has a cast-iron cylinder block with three main bearings supported system. The 2T engine cylinder bore is 85.0 mm (3.35 in) and the piston stroke is 70.0 mm (2.76 in). The 2T-B has a compression ratio rating of 9.4:1, the 2T-U has 9.0:1, other modifications have compression ratio rating of 8.5:1.
The pistons are each fitted with two compression rings and a single oil ring.
| Cylinder block | ||
| Cylinder block alloy | Cast iron | |
| Compression ratio: |
2T-B: 9.4:1 2T-U: 9.0:1 Other: 8.5:1 |
|
| Cylinder bore: | 85.0 mm (3.35 in) | |
| Piston stroke: | 70.0 mm (2.76 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 3 | |
| Cylinder inner diameter (standard): | 85.000-85.050 mm (3.3460-3.3480 in) | |
| Piston skirt diameter (standard): | 84.940-84.990 mm (3.3440-3.3460 in) | |
| Piston ring side clearance: | Top | 0.020-0.060 mm (0.0008-0.0024 in) |
| Second | 0.015-0.055 mm (0.0006-0.0022 in) | |
| Oil | 0.015-0.060 mm (0.0006-0.0024 in) | |
| Piston ring end gap: | Top | 0.250-0.560 mm (0.0098-0.022 in) |
| Second | 0.200-0.510 mm (0.0079-0.0201 in) | |
| Oil | 0.300-0.780 mm (0.0118-0.0307 in) | |
| Crankshaft main journal diameter: | 57.976-58.000 mm (2.2825-2.2835 in) | |
| Crankpin diameter: | 47.976-48.000 mm (1.8888-1.8898 in) | |
Main bearing cap bolts tightening procedure and torque specs:
- 60-80 Nm; 6.5-8.5 kg·m; 47-61 ft·lb
After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.
Connecting rod bearing bolts
- 40-50 Nm; 4.0-5.0 kg·m; 30-36 ft·lb
Cylinder head
| Cylinder head | ||
| Cylinder head alloy | Aluminum | |
| Valve Arrangement: | OHV | |
| Valves: | 8 (2 valves per cylinder) | |
| Valve head diameter: | INTAKE | 41.0 mm (1.6141 in) |
| EXHAUST | 36.0 mm (1.4173 in) | |
| Valve length: | INTAKE | 109.0 mm (4.2913 in) |
| EXHAUST | 108.5 mm (4.2716 in) | |
| Valve stem diameter: | INTAKE | 7.970-7.985 mm (0.3138-0.3144 in) |
| EXHAUST | 7.965-7.980 mm (0.3136-0.3142 in) | |
| Valve spring free length: | INTAKE | 42.1 mm (1.6575 in) |
| EXHAUST | 42.1 mm (1.6575 in) | |
| Camshaft lobe height: | INTAKE |
38.360-38.460 mm (1.5102-1.5142 in) 38.850-38.950 mm (1.5295-1.5334 in ), from April 1973 |
| EXHAUST | 38.250-38.350 mm (1.5059-1.5098 in) | |
Maintenance data
| Valve clearance (Hot) | |
| Intake valve | 0.20 mm (0.008 in) |
| Exhaust valve | 0.33 mm (0.013 in) |
| Valve clearance (Cold) | |
| Intake valve | 0.18 mm (0.007 in) |
| Exhaust valve | 0.30 mm (0.012 in) |
| Compression pressure | |
| Standard |
2T-B, 2T-U: 12.0 kg/cm2 (170 psi) / 350 rpm Other: 11.5 kg/cm2 (163 psi) / 350 rpm |
| Minimun |
2T-B, 2T-U: 10.0 kg/cm2 (142 psi) / 350 rpm Other: 9.0 kg/cm2 (128 psi) / 350 rpm |
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 10W-30 |
| Oil type API | SE |
| Engine oil capacity (Refill capacity) |
With oil filter: 3.8 l (4.0 US qt, 3.3 Imp qt) Without oil filter: 3.3 l (3.5 US qt, 2.9 Imp qt) |
Ignition system |
| Spark plug | NGK: BPR5EA, BPR5ES DENSO: W14EXR-U, W16EXR-U |
| Spark plug gap | 0.8 mm (0.0315 in) or 1.1 mm (0.0433 in) |
| Spark plug tightening torque | 18 Nm (1.8 kg⋅m, 13 ft⋅lb) |
Vehicle applications
| Model | Years Produced |
| 2T | |
| Toyota Carina (TA12) | – |
| Toyota Celica (TA22) | – |
| Toyota Corona (TT100) | – |
| Toyota Corolla (TE31) | – |
| Toyota Sprinter (TE41) | – |
| 2T-B | |
| Toyota Carina (TA12) | – |
| Toyota Celica (TA22) | – |
| Toyota Sprinter Torino J (TE 27) | – |
| Toyota Corolla Levin J (TE 27) | – |
| 2T-BR | |
| Toyota Celica (TA22) | – |
| Toyota Carina (TA12) | – |
| Toyota Sprinter Torino J (TE 27) | – |
| Toyota Corolla Levin J (TE 27) | – |
| Toyota Corolla 1600 GSL (TE 31) | – |
| Toyota Sprinter 1600 GSL (TE 41) | – |
| 2T-C | |
| Toyota Corolla (TE27L / 27R) | – |
| Toyota Carina (TA12L / 12R) | – |
| Toyota Corolla (Celica (TA22L / 22R) | – |
| 2T-U | |
| Toyota Corolla (TE30) | – |
| Toyota Sprinter (TE40) | – |
| Toyota Corona (TT100) | – |
| 2T-J | |
| Toyota TownAce (R10) | – |
| Toyota Corona Van (TT137V) | – |
