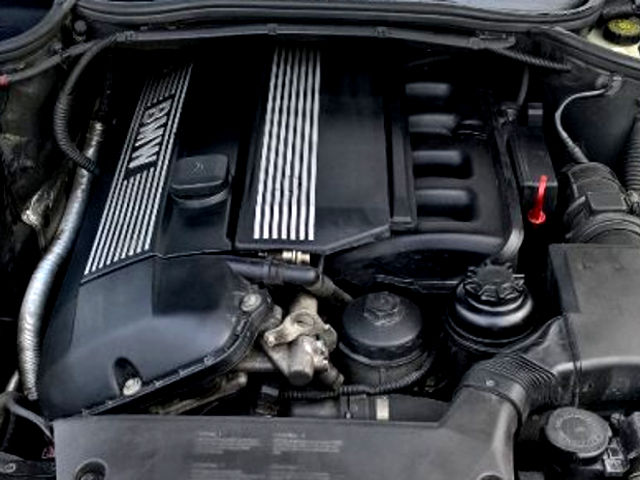

The BMW M52B24TU is a 2.4 liters (2,394 cc, 146.0 cu-in) straight-six, four-stroke cycle natural aspirated gasoline engine from BMW M52-family. The engine was manufactured from 1998 to 2000 and used in the Thailand and Oceania markets. This engine is based on the M52B25TU with the stroke reduced to 72 mm (2.83 in).
The M52B24TU engine features a cast-aluminum alloy cylinder block with cast-iron cylinder liners. The aluminum cylinder head uses chain-driven double overhead camshafts (DOHC) and four valves per cylinder (24 valves in total). It is equipped with a Siemens MS DME (Digital Motor Electronics) system, double VANOS (Variable Valve Timing System from BMW) for both inlet and exhaust camshafts, Motor Driven Throttle Valve, dual length intake manifold (called “DISA” by BMW) and a distributorless ignition system with individual ignition coils for each cylinder.
This engine has an 84.0 mm (3.31 in) cylinder bore and 72 mm (2.83 in) piston stroke. This engine has a compression ratio of 10.5:1 and a redline of 6,500 rpm. It produced 184 PS (135 KW; 181 HP) at 5,800 rpm of maximum horsepower and 240 Nm (24.5 kg·m; 177.1 ft·lb) at 3,600 rpm of peak torque.
The breakdown of the engine code is as follows:
- M52 – Engine Family
- B – Gasoline
- 24 – 2.4 Liter Displacement
- TU – Technical update
|Engine code||M52B24 TU|
|Layout||Four stroke, Inline-6 (Straight-6)|
|Displacement||2.4 L, 2,394 cc (146.1 cu in)|
|Fuel system||Fuel injection system|
|Max. horsepower||184 PS (135 KW; 181 HP) at 5,800 rpm|
|Max. torque||240 Nm (24.5 kg·m; 177.1 ft·lb) at 3,600 rpm|
|Dimensions (L x H x W):||–|
|Weight||~175 kg(385 lbs)|
The M52B24TU cylinder block is cast aluminum alloy with cast iron cylinder liners, bore is 84.0 mm (3.31 in) and stroke is 72 mm (2.83 in). The cylinders are exposed on all sides to circulating coolant. The cast-iron counterweighted crankshaft rotates in replaceable split-shell main bearings. This engine used seven main bearings.
The forged steel connecting rods use replaceable split-shell bearings at the crankshaft end and solid bushings at the piston pin end. The pistons are of the three-ring type with two upper compression rings and a lower one-piece oil scraper ring. Full-floating piston pins are retained with circlips. The compression ratio rating is 10.5:1.
|Cylinder block alloy||Aluminum alloy|
|Cylinder bore:||84.0 mm (3.31 in)|
|Piston stroke:||72 mm (2.83 in)|
|Number of piston rings (compression / oil):||2 / 1|
|Number of main bearings:||7|
|Cylinder inner diameter (standard):||84.000-84.010 mm (3.3071-3.3075 in)|
|Piston skirt diameter (standard):||83.980-83.989 mm (3.3063-3.3066 in)|
|Piston pin outer diameter:||22.000 mm (0.8661 in)|
|Piston ring side clearance:||Top||0.020-0.060 mm (0.0008-0.0024 in)|
|Second||0.030-0.065 mm (0.0012-0.0026 in)|
|Oil||0.020-0.060 mm (0.0008-0.0024 in)|
|Piston ring end gap:||Top||0.100-0.300 mm (0.0039-0.0118 in)|
|Second||0.200-0.400 mm (0.0079-0.0157 in)|
|Oil||0.250-0.500 mm (0.0098-0.0197 in)|
|Crankshaft journal diameter:||60.000 mm (2.3622 in)|
|Crankpin diameter:||45.000 mm (1.7717 in)|
The cylinder head is made of an aluminum alloy with good cooling efficiency. The M52B24TU engine use chain-driven double overhead camshafts and four valves per cylinder. The Standart head height is 140.0 mm (5.5118 in). The cylinder head employs a crossflow design for greater power and efficiency. Intake air enters the combustion chamber from one side while exhaust gasses exit from the other. This engine is equipped with a double VANOS (Variable Camshaft Timing) system. VANOS is fully variable and operates independently on both intake and exhaust sides.
Intake valves are 33.0 mm (1.2992 in) in diameter and exhaust valves are 30.5 mm (1.2008 in), valve lift is 9.0 mm (0.356 in). Valve clearance is set by self-adjusting (zero-lash) hydraulic lifters for reduced valve noise and the elimination of routine valve adjustment.
|Cylinder head alloy||Aluminum|
|Valve Arrangement:||DOHC, chain driven|
|Valves:||24 (4 valves per cylinder)|
|Valve head diameter:||INTAKE||33.0 mm (1.2992 in)|
|EXHAUST||30.5 mm (1.2008 in)|
|Valve steam diameter:||INTAKE||6.0 mm (0.2362 in)|
|EXHAUST||6.0 mm (0.2362 in)|
Head tightening procedure and torque specs:
- Step 1: 40.0 Nm; 4.1 kg·m; 29.5 ft·lb
- Step 2: Turn all bolts 90°
- Step 3: Turn all bolts another 90°
|Minimum||10.0 kg/cm2 (9.9 bar, 145 psi) / 350 rpm|
|Compression differential limit between cylinders:||1.0 kg/cm2 (1.0 bar, 15 psi) / 350 rpm|
|Recommended engine oil||SAE 5W-30|
|Oil type||BMW LL-98 or LL-01|
|Engine oil capacity (Refill capacity)||~ 6.5 L (6.87 US. qt, 5.72 Imp. qt.)|
|Oil change interval, km (miles)||5,000-10,000 (3,000-6,000)|
|Spark plug||Bosch: FGR7DQP, NGK: BKR6EQUP|
|Spark plug torque:||25 N·m (2.5 kg·m, 18.4 ft·lb)|
|BMW 323i/2.4 (E46)||1998-2000|
|BMW 525i/2.4 (E34)||1998-2000|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
