Hatz 1B30V

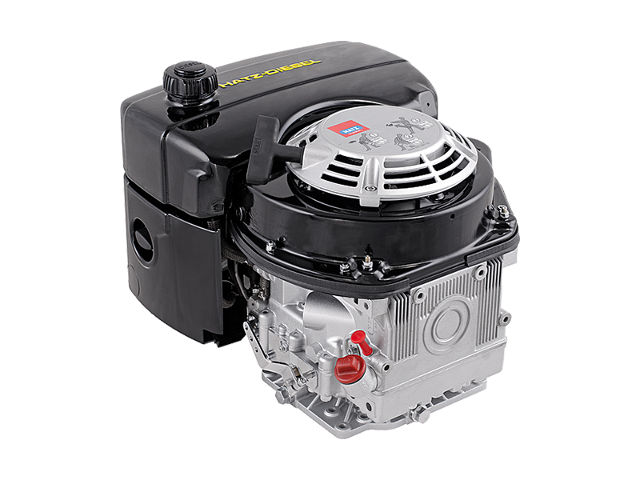

Hatz 1B30VThe Hatz 1B30V is a 347 cc, (21.18 cu-in) single-cylinder air-cooled 4-stroke internal combustion diesel engine with a vertical shaft, manufactured by Motorenfabrik Hatz GmbH & Co. KG for general-purpose applications.

This engine has a single-cylinder, overhead valves, and direct injection fuel system. The Hatz 1B30V engine can be equipped with a recoil starter or electric starter motor 12 or 24 Volts.

An 80.0 mm (3.15 in) cylinder bore and 69.0 mm (2.72 in) piston stroke give the 1B30V engine a total of 347 cc, (21.18 cu-in) of displacement. Compression ratio rating is 21.5:1. It produced from 3.5 PS (2.6 kW; 3.5 HP) at 1,500 rpm to 7.3 PS (5.4 kW; 7.2 HP) at 3,600 rpm of maximum output. The torque is 17.5 Nm (1.79 kg·m; 12.92 ft·lb) at 2,300 rpm.

General information

Engine Specifications
Model 1B30V
Type 4-stroke, single cylinder
Displacement 347 cm 3 (21.18 cu-in)
Max. horsepower 7.3 PS (5.4 kW; 7.2 HP) at 3,600 rpm
Max. torque (crank PTO) 16.5 N·m (1.7 kg·m, 12.2 ft·lb) at 2,100 rpm.
Cooling system Forced-air
Lubricating system Forced spray
Starting system Recoil starter or electric starter motor
Fuel used Diesel fuel
Fuel tank capacity 5.0 L (1.32 US. gal. 1.1 Imp. gal.)
Fuel consumption
PTO shaft rotation Counterclockwise (from PTO shaft side)

Dimensions and Weight

1B30V
Length, mm (in) 429 (16.9)
Width, mm (in) 370 (14.6)
Height, mm (in) 364 (14.3)
Dry weight, kg (lb) With recoil starter: 37.0 (80.6)
With electric starter: 42.8 (92.1)

Service Information

Engine
Maximum speed 3,600 ± 150 rpm
Valve clearance
Intake valve 0.10 mm (0.004 in)
Exhaust valve 0.10 mm (0.004 in)
Oil system
Oil type With diesel oxidation catalyst (DOC): ACEA E6
Without diesel oxidation catalyst (DOC): CF/CH-4, ACEA: B3/E4
Recommended oil SAE 5W-30, 10W-30
Oil capacity 1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Oil pressure
