Hatz 1B40V

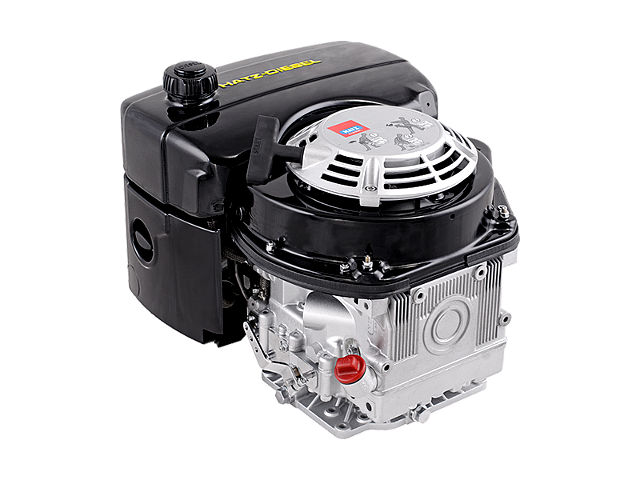

Hatz 1B40VThe Hatz 1B40V is a 462 cc, (28.19 cu-in) single-cylinder air-cooled 4-stroke internal combustion diesel engine with a vertical shaft, manufactured by Motorenfabrik Hatz GmbH & Co. KG for general-purpose applications.

This engine has a single-cylinder, overhead valves, direct injection fuel system and electric starter motor 12 or 24 Volts.

An 88.0 mm (3.46 in) cylinder bore and 76.0 mm (2.99 in) piston stroke give the 1B40 engine a total of 462 cc, (28.19 cu-in) of displacement. Compression ratio rating is 20.5:1. It produced from 5.2 PS (3.8 kW; 5.1 HP) at 1,500 rpm to 10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm of maximum output. The torque is 24.9 N·m (2.5 kg·m, 18.4 ft·lb) at 2,300 rpm.

General information

Engine Specifications
Model1B40V
Type4-stroke, single cylinder
Displacement462 cm 3 (28.19 cu-in)
Max. horsepower10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm
Max. torque (crank PTO)24.9 N·m (2.5 kg·m, 18.4 ft·lb) at 2,300 rpm
Cooling systemForced-air
Lubricating systemForced spray
Starting systemElectric starter motor
Fuel usedDiesel fuel
Fuel tank capacity5.0 L (1.32 US. gal. 1.1 Imp. gal.)
Fuel consumption
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

1B40V
Length, mm (in)477 (18.8)
Width, mm (in)394 (15.5)
Height, mm (in)392 (15.4)
Dry weight, kg (lb)55.3 (121.9)

Service Information

Engine
Maximum speed3,600 ± 150 rpm
Valve clearance
Intake valve0.10 mm (0.004 in)
Exhaust valve0.10 mm (0.004 in)
Oil system
Oil type With diesel oxidation catalyst (DOC): ACEA E6
Without diesel oxidation catalyst (DOC): CF/CH-4, ACEA: B3/E4
Recommended oilSAE 5W-30, 10W-30
Oil capacity1.5 L (1.59 US. qt, 1.32 Imp. qt.)
Oil pressure
