Jinlang J23 (JL 1P50QMH)

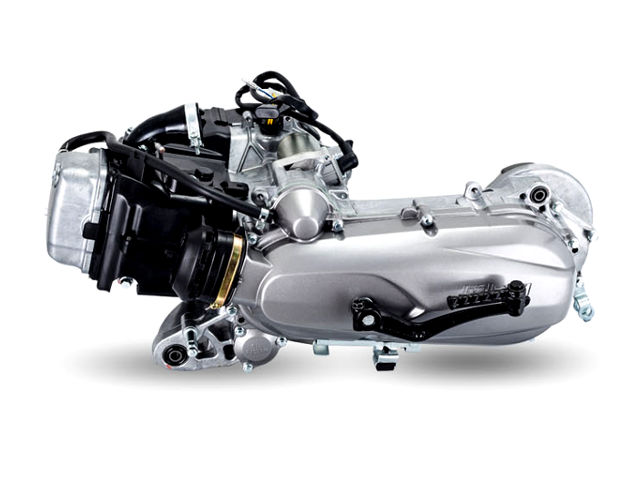

Jinlang J23The Jinlang J23 (JL 1P50QMH) is a 108.2 ml (6.6 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

The 1P50QMH engine cylinder bore is 50 mm (1.97 in) and the piston stroke is 55.1 mm (2.17 in) and compression ratio rating is 9.5:1. The Jinlang 1P50QMH produced 8.2 PS (6.0 kW; 8.0 HP) at 7,500 rpm of maximum horsepower and 8.5 Nm (0.87 kg·m; 6.27 ft·lb) at 6,000 rpm of torque.

General information

Engine Specifications
ModelJinlang J23 (JL 1P50QMH)
TypeFour-stroke, single cylinder
Displacement108.2 ml (6.6 cu-in)
Max. horsepower8.2 PS (6.0 KW; 8 HP) at 7,500 rpm
Max. torque (crank PTO)8.5 Nm (0.87 kg·m; 6.27 ft·lb) at 6,000 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemElectric / kick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

Length, mm (in)660 (26.0)
Width, mm (in)460 (18.1)
Height, mm (in)310 (12.2)
Dry weight, kg (lb)25.0 (55.1)
