Jinlang J16 (JL1P52QMI-9)

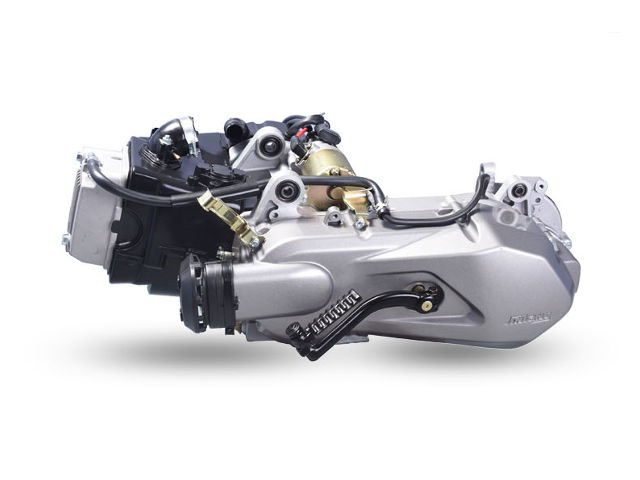

Jinlang J16 (JL1P52QMI-9)The Jinlang J16 (JL1P52QMI-9) is a 124.6 ml (7.8 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

The JL1P52QMI-9 (J16) engine cylinder bore is 52.4 mm (2.06 in) and the piston stroke is 57.8 mm (2.28 in) and compression ratio rating is 9.2:1. The Jinlang 1P52QMI-8A produced 8.4 PS (6.2 kW; 8.3 HP) at 7,500 rpm of maximum horsepower and 9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm of torque. Minimal idling speed 1,600 rpm.

General information

Engine Specifications
Model Jinlang J16 (JL1P52QMI-9)
Type Four-stroke, single cylinder
Displacement 124.6 ml (7.8 cu-in)
Max. horsepower 8.4 PS (6.2 KW; 8.3 HP) at 7,500 rpm
Max. torque (crank PTO) 9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm
Cooling system Forced-air
Ignition system Capacitance discharge ignition (CDI)
Lubricating system Splash
Starting system Kick
Fuel used Unleaded gasoline (octane number 86 or higher)

Dimensions and Weight

JL 1P52QMI-9
Length, mm (in) 660 (26.0)
Width, mm (in) 430 (16.9)
Height, mm (in) 310 (12.2)
Dry weight, kg (lb) 27 (59.5)
