Jinlang 1P52QMI-B

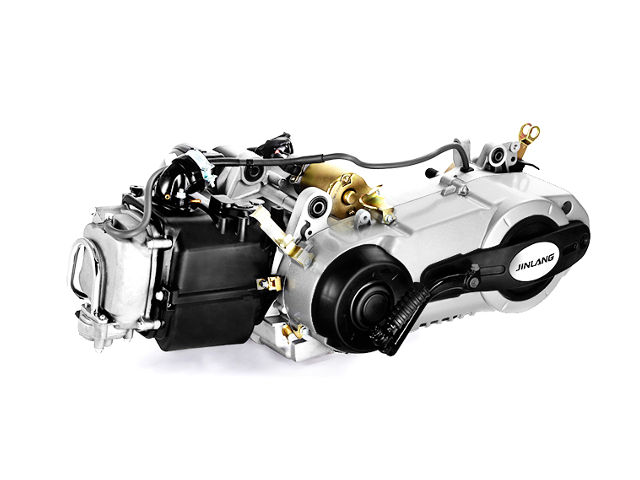

Jinlang 1P52QMI-BThe Jinlang 1P52QMI-B is a 124.6 ml (7.8 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

The 1P52QMI-B engine cylinder bore is 52.4 mm (2.06 in) and the piston stroke is 57.8 mm (2.28 in) and compression ratio rating is 9.5:1. The Jinlang 1P52QMI-B produced 9.2 PS (6.8 kW; 9.1 HP) at 7,500 rpm of maximum horsepower and 9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm of torque. Minimum idling speed 1,700 rpm.

General information

Engine Specifications
ModelJinlang 1P52QMI-B
TypeFour-stroke, single cylinder
Displacement124.6 ml (7.8 cu-in)
Max. horsepower9.2 PS (6.8 KW; 9.1 HP) at 7,500 rpm
Max. torque (crank PTO)9.0 Nm (0.92 kg·m; 6.64 ft·lb) at 6,000 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

JL 1P52QMI-B
Length, mm (in)660 (26.0)
Width, mm (in)460 (18.1)
Height, mm (in)310 (12.2)
Dry weight, kg (lb)27.0 (59.5)
