Jinlang 1P65QML-3

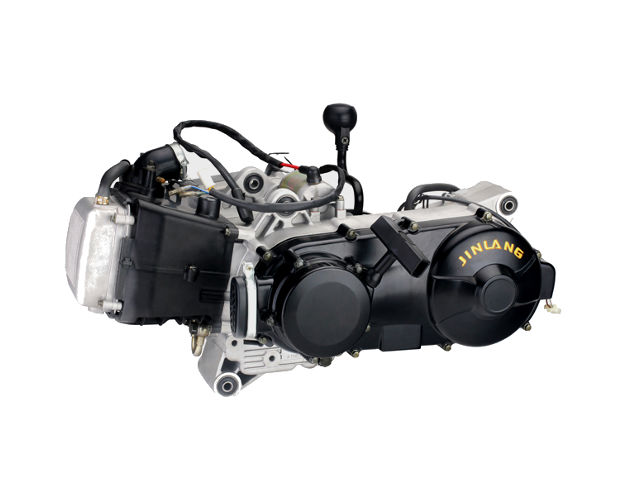

Jinlang 1P65QML-3The Jinlang 1P65QML-3 is a 0.2 l (199.1 cc, 12.15 cu-in) single cylinder, 4-stroke, forced air-cooled / oil-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

A 65 mm (2.56 in) cylinder bore and 60 mm (2.36 in) piston stroke give the motor a total of 199.1 cc (12.15 cu-in) of displacement, compression ratio rating is 9.7:1. The Jinlang 1P65QML-3 produced 13.2 PS (9.7 kW; 13.0 HP) at 7,250 rpm of maximum horsepower and 13.8 Nm (1.4 kg·m; 10.2 ft·lb) at 6,000 rpm of torque. Minimal idling speed 1,700 rpm.

General information

Engine Specifications
ModelJinlang 1P65QML-3
TypeFour-stroke, single cylinder
Displacement199.1 cc (12.15 cu-in)
Max. horsepower13.2 PS (9.7 KW; 13.0 HP) at 7,250 rpm
Max. torque (crank PTO)13.8 Nm (1.4 kg·m; 10.2 ft·lb) at 6,000 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

JL 1P65QML-3
Length, mm (in)
Width, mm (in)
Height, mm (in)
Dry weight, kg (lb)
