Jinlang 1P65QML

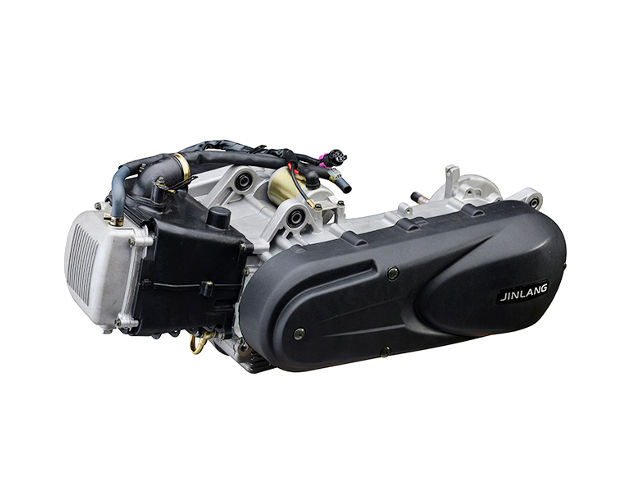

Jinlang 1P65QML engineThe Jinlang 1P65QML is a 0.2 l (199.1 cc, 12.15 cu-in) single cylinder, 4-stroke, forced air-cooled / oil-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

A 65 mm (2.56 in) cylinder bore and 60 mm (2.36 in) piston stroke give the motor a total of 199.1 cc (12.15 cu-in) of displacement, compression ratio rating is 9.7:1. The Jinlang 1P65QML produced 13.2 PS (9.7 kW; 13.0 HP) at 7,250 rpm of maximum horsepower and 13.8 Nm (1.4 kg·m; 10.2 ft·lb) at 6,000 rpm of torque. Minimal idling speed 1,700 rpm.

General information

Engine Specifications
ModelJinlang 1P65QML
TypeFour-stroke, single cylinder
Displacement199.1 cc (12.15 cu-in)
Max. horsepower13.2 PS (9.7 KW; 13.0 HP) at 7,250 rpm
Max. torque (crank PTO)13.8 Nm (1.4 kg·m; 10.2 ft·lb) at 6,000 rpm
Cooling systemForced-air
Ignition systemCapacitance discharge ignition (CDI)
Lubricating systemSplash
Starting systemKick
Fuel usedUnleaded gasoline (octane number 86 or higher)

Dimensions and Weight

Length, mm (in)800 (31.5)
Width, mm (in)500 (19.7)
Height, mm (in)425 (16.7)
Dry weight, kg (lb)29 (63.9)
