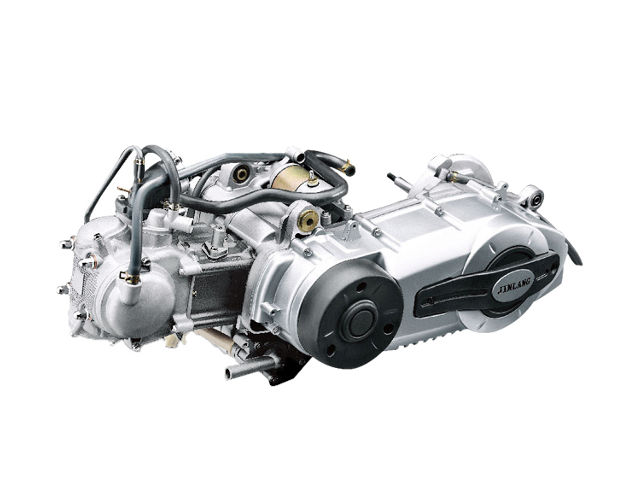

The Jinlang 1P69MM-2 is a 0.25 l (249.6 cc, 15.23 cu-in) single cylinder, 4-stroke, forced water-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.
Bore and stroke are 69 mm (2.72 in) and 66.8 mm (2.63 in), respectively. Compression ratio rating is 10:1. The Jinlang 1P69MM-2 produced 16.3 PS (12 kW; 16.0 HP) at 6,500 rpm of maximum horsepower and 20 Nm (2.0 kg·m; 14.8 ft·lb) at 6,000 rpm of torque. Minimum idling speed 1,500 rpm.
|Type||Four-stroke, single cylinder|
|Displacement||249.6 cc (15.23 cu-in)|
|Max. horsepower||16.3 PS (12 KW; 16.0 HP) at 6,500 rpm|
|Max. torque (crank PTO)||20 Nm (2.0 kg·m; 14.8 ft·lb) at 6,000 rpm|
|Ignition system||Capacitance discharge ignition (CDI)|
|Fuel used||Unleaded gasoline (octane number 86 or higher)|
Dimensions and Weight
|Length, mm (in)||865 (34.1)|
|Width, mm (in)||525 (20.7)|
|Height, mm (in)||395 (15.6)|
|Dry weight, kg (lb)||38.5 (84.9)|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
