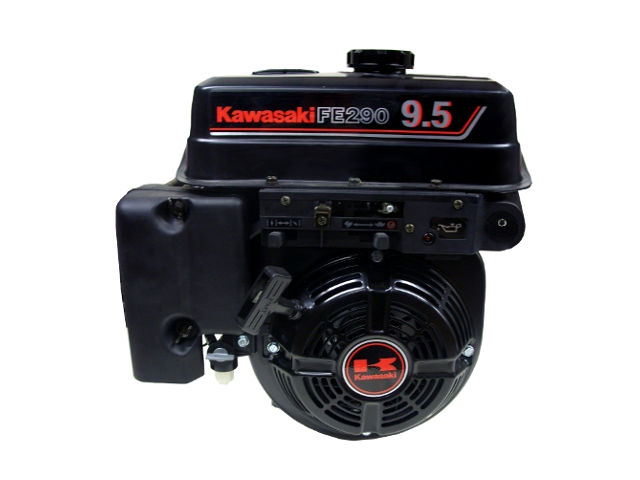

The Kawasaki FE290 is a 0.29 l (286 cc, 17.45 cu-in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine with horizontal shaft manufactured by Kawasaki Heavy Industries LTd., for general-purpose applications.
The FE290 engine has an OHV (overhead valve) design; cast iron cylinder liner; reciprocating balancer; float type carburetor with fixed main jet; flywheel magneto transistor type ignition system; mechanical governor and recoil starter with automatic compression release (electric starter was available as an option). The engine uses a full pressure lubrication system with oil filter and low oil shut-off system; dual-element air cleaner or oil bath type air cleaner as an option.
It has a 78.0 mm (3.07 in) cylinder bore and 60.0 mm (2.36 in) piston stroke. Compression ratio rating is 8.4:1. The Kawasaki FE290 motor produced 9.7 PS (7.1 kW; 9.5 HP) at 3,600 rpm of horsepower and 18.6 Nm (1.9 kg·m; 13.73 ft·lb) at 2,800 rpm of torque. The FE290G – 1/2 cam gear reduction.
General information
Engine Specifications
Model
FE290D / FE290G
Type
4-stroke, OHV, single cylinder
Displacement
286 cm 3 (17.45 cu-in)
Max. horsepower
9.7 PS (7.1 KW; 9.5 HP) at 3,600 rpm
Max. torque (crank PTO)
18.6 Nm (1.9 kg·m; 13.73 ft·lb) ta 2,800 rpm
Carburetor
Float type with fixed main jet
Cooling system
Forced-air
Ignition system
Flywheel magneto transistor type
Lubricating system
Pressurized lubrication with oil filter
Starting system
Recoil or electric starter
Stoping system
Ignition primary circuit ground
Fuel used
Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity
6.0 L (6.3 US qt)
Fuel consumption
240 g/HPh
PTO shaft rotation
Counterclockwise (from PTO shaft side)
Dimensions and Weight
Kawasaki FE290 D/G
Length
363 mm (14.3 in)
Width
408 mm (16.0 in)
Height
441 mm (17.4 in)
Dry weight
30.4 kg (67.0 lbs)
Tightening torque specs
Tightening torque specs
Connecting rod bolt
20 Nm; 2.0 kg·m; 15 ft·lb
Cylinder head bolt
25 Nm; 2.5 kg·m; 17 ft·lb
Flywheel nut
86 Nm; 8.8 kg·m; 63 ft·lb
Rocker arm lock nut
10 Nm; 1.0 kg·m; 7.2 ft·lb
Crankcase cover
31 Nm; 3.2 kg·m; 23 ft·lb
Oil drain plug
32 Nm; 3.3 kg·m; 24 ft·lb
Spark plug
23 Nm; 2.3 kg·m; 17 ft·lb
Service Information
Engine
Maximum speed
4,000 ± 100 rpm
Idle speed
1,300 ± 150 rpm
Cylinder compression
3.0-4.0 kg/cm2 (42-57 psi) at 600 rpm
Valve clearance
Intake valve clearance
0.12 mm (0.0047 in)
Exhaust valve clearance
0.12 mm (0.0047 in)
Oil system
Oil type
4-stroke or an equivalent (SF, SG, SH, or SJ)
Recommended oil
SAE 10W-30
Oil capacity
1.1 L (1.2 US. qt)
Ignition system
Spark plug
NGK: BP5ES
Spark plug gap
0.7-0.8 mm (0.028-0.031 in)
Ignition coil air gap
0.3 mm (0.012 in)
