Kohler Command PRO CS10

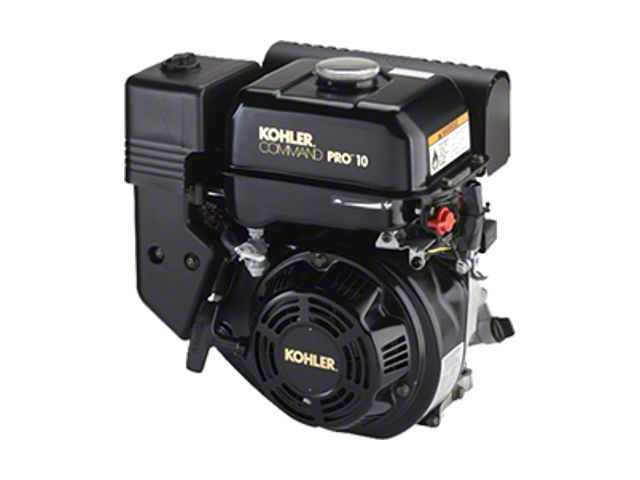

Kohler Command PRO CS10The Kohler Command PRO CS10 is a 301 cc (18.37 cu·in) single-cylinder air-cooled four-stroke internal combustion gasoline engine from Command PRO series, manufactured by Kohler Co., for general-purpose applications, such as construction and industrial equipment, portable generators, commercial or residential lawn, and garden equipment.

The Kohler CS10 engine has an OHV (overhead valve) design, cast iron cylinder liners, aluminum block, steel-forged horizontal shaft, and dual main ball bearings. This engine is equipped with fixed jet Mikuni carburetor, electronic TCI (Transistor Controlled Ignition) system, mechanical governor and automatic compression release. The CS10 engine can be equipped with one of three air cleaner configurations: the standard dual-element air cleaner, heavy-duty cyclonic air cleaner (option), or an oiled, solid foam element (option).

It has a 78.0 mm (3.07 in) cylinder bore and 63.0 mm (2.48 in) piston stroke. Compression ratio rating is 8.1:1. The Command PRO CS10 engine produced 10.1 PS (7.45 kW; 10.0 HP) at 3,600 rpm of horsepower and 19.66 N·m (2 kg·m, 14.5 ft·lb) at 2,000 rpm of torque.

The breakdown of the engine code is as follows:

  • C – Command series
  • S – Slanted cylinder
  • 10 – output power 10.0 HP
  • Suffix (engine is available with the following options):
    S – Electric starter;
    T – Retractable starter;
    G – Tapered crankshaft;
    P – Threaded crankshaft;
    R – Gear Reduction (2:1 or 6:1);

General information

Engine Specifications
Model Command PRO CS10
Type 4-stroke, OHV, single cylinder
Displacement 301 cm 3 (18.37 cu-in)
Max. horsepower 10.1 PS (7.45 kW; 10.0 HP) at 3,600 rpm
Max. torque (crank PTO) 19.66 N·m (2 kg·m, 14.5 ft·lb) at 2,000 rpm
Fuel system Carburetor wit fixed jet (Mikuni)
Cooling system Forced-air
Ignition system TCI (Transistor Controlled Ignition)
Lubricating system Splash type
Starting system Recoil or electric starter
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 6.9 L (1.82 US. gal. 1.52 Imp. gal.)

Cylinder Block and Head

The Kohler Command PRO CS10 has aluminum cylinder block with cast iron cylinder liner, dual ball bearing supported forged steel crankshaft. The piston has two compression rings and one oil ring. A 78.0 mm (3.07 in) cylinder bore and 63.0 mm (2.48 in) piston stroke give the Command PRO CS10 engine a total of 301 cc (18.37 cu·in) of displacement. Compression ratio rating is 8.1:1.

Cylinder block
Compression ratio: 8.1:1
Bore x Stroke 78.0 X 63.0 mm (3.07 x 2.48 in)
Sleeve internal diameter 78.000-78.020 mm (3.0709-3.0716 in)
Piston skirt outer diameter 77.954-77.998 mm (3.069-3.0708 in)
Number of piston rings (compression / oil): 2 / 1
Ring side clearance Top 0.040-0.080 mm (0.0016-0.0031 in)
Second 0.030-0.070 mm (0.0012-0.0028 in)
Ring end gap Top 0.200-0.400 mm (0.0079-0.0157 in)
Second 0.200-0.400 mm (0.0079-0.0157 in)
Oil (side rail) 0.200-0.700 mm (0.0079-0.0276 in)
Connecting rod small end ID 20.006-20.020 mm (0.7876-0.7882 in)
Connecting rod big end ID 36.000-36.015 mm (1.4173-1.4179 in)
Piston pin outer diameter 19.995-20.000 mm (0.7872-0.7874 in)
Crankshaft main journal diameter: 72.000 mm (2.8346 in)
Crankpin diameter: 35.969-35.984 mm (1.4161-1.4167 in)
Cylinder Head
Valve Arrangement: OHV
Valves: 2
Valve head diameter: INTAKE 32.000 mm (1.2598 in)
EXHAUST 27.000 mm (1.063 in)
Stem outer diameter (standard): INTAKE 6.000-6.012 mm (0.2362-0.2367 in))
EXHAUST 6.000-6.012 mm (0.2362-0.2367 in)
Valve length (standard): INTAKE 88.100 mm (3.4685 in)
EXHAUST 87.900 mm (3.4606 in)
Camshaft journal diameter: 15.965-15.990 mm (0.6285-0.6295 in)
Cam height: INTAKE 32.500-32.600 mm (1.2795-1.2835 in)
EXHAUST 32.500-32.600 mm (1.2795-1.2835 in)

Tightening torque specs

Tightening torque specs
Cylinder head bolt 50 Nm; 5.1 kg·m; 37 ft·lb
Flywheel 120 Nm; 12.2 kg·m; 88 ft·lb
Oil drain plug 20 Nm; 2.0 kg·m; 14.8 ft·lb
Spark plug 20 N·m (2 kg·m, 14.7 ft·lb)

Service Information

Engine
Idle speed 2,000 ± 150 rpm
Cylinder compression 4.0-6.0 kg/cm2 (400-600 kPa, 57-85 psi) at 600 rpm
Valve clearance
Intake valve clearance 0.10 mm (0.0039 in)
Exhaust valve clearance 0.10 mm (0.0039 in)
Oil system
Oil type API SG, SH, SJ or higher
Recommended oil SAE 10W-30
Oil capacity 1.1 L (1.16 US. qt, 0.97 Imp. qt.)
Ignition system
Spark plug NGK: BPR4ES, Champion: RN14YC, RC14YC
Spark plug gap 0.8 mm (0.0315 in)
Ignition module air gap 0.4-0.6 mm (0.015-0.023 in)
