Kohler Command PRO CS6

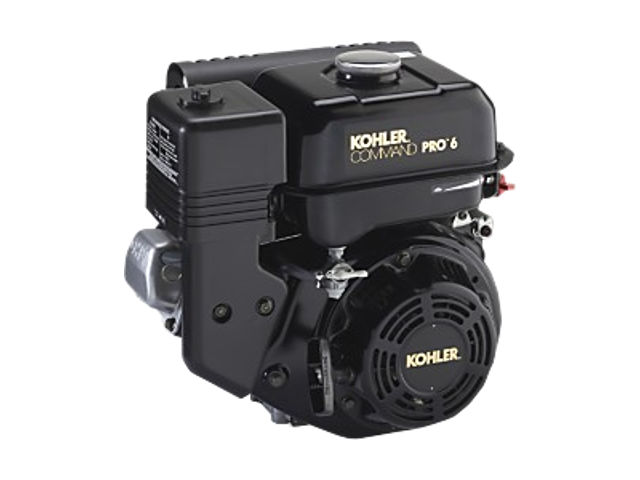

Kohler Command PRO CS6The Kohler Command PRO CS6 is a 171 cc (10.44 cu·in) single-cylinder air-cooled four-stroke internal combustion gasoline engine from Command PRO series, manufactured by Kohler Co., for general-purpose applications, such as construction and industrial equipment, portable generators, commercial or residential lawn, and garden equipment.

The Kohler CS6 engine has an OHV (overhead valve) design, cast iron cylinder liners, aluminum block, steel-forged horizontal shaft, and dual main ball bearings. This engine is equipped with fixed jet Mikuni carburetor, electronic TCI (Transistor Controlled Ignition) system, mechanical governor and automatic compression release. The CS6 engine can be equipped with one of three air cleaner configurations: the standard dual-element air cleaner, heavy-duty cyclonic air cleaner (option), or an oiled, solid foam element (option).

Cylinder bore and piston stroke are 66.0 mm (2.6 in) and 50.0 mm (1.97 in), respectively. Compression ratio rating is 8.5:1. The Command PRO CS6 engine produced 6.1 PS (4.47 kW; 6.0 HP) at 3,600 rpm of horsepower and 10.8 N·m (1.1 kg·m, 8 ft·lb) at 2,000 rpm of torque.

The breakdown of the engine code is as follows:

  • C – Command series
  • S – Slanted cylinder
  • 6 – output power 6.0 HP
  • Suffix (engine is available with the following options):
    S – Electric starter;
    T – Retractable starter;
    G – Tapered crankshaft;
    P – Threaded crankshaft;
    R – Gear Reduction (2:1 or 6:1);

General information

Engine Specifications
Model Kohler Command PRO CS6
Type 4-stroke, OHV, single cylinder
Displacement 171 cm 3 (10.44 cu-in)
Max. horsepower 6.1 PS (4.47 kW; 6.0 HP) at 3,600 rpm
Max. torque (crank PTO) 10.8 N·m (1.1 kg·m, 8 ft·lb) at 2,000 rpm
Fuel system Carburetor wit fixed jet (Mikuni)
Cooling system Forced-air
Ignition system TCI (Transistor Controlled Ignition)
Lubricating system Splash type
Starting system Recoil or electric starter
Fuel used Unleaded gasoline (octane number 86 or higher)
Fuel tank capacity 3.9 L (1.03 US. gal. 0.86 Imp. gal.)

Cylinder Block and Head

The Kohler Command PRO CS6 has aluminum cylinder block with cast iron cylinder liner, dual ball bearing supported forged steel crankshaft. The piston has two compression rings and one oil ring. A 66.0 mm (2.6 in) cylinder bore and 50.0 mm (1.97 in) piston stroke give the Command PRO CS6 engine a total of 171 cc (10.44 cu·in) of displacement. Compression ratio rating is 8.5:1.

Cylinder block
Compression ratio: 8.5:1
Bore x Stroke 66 X 50 mm (2.6 x 1.97 in)
Sleeve internal diameter 66.005-66.015 mm (2.5986-2.599 in)
Piston skirt outer diameter 65.975-65.990 mm (2.5974-2.598 in)
Number of piston rings (compression / oil): 2 / 1
Ring side clearance Top 0.040-0.080 mm (0.0016-0.0031 in)
Second 0.020-0.060 mm (0.0008-0.0024 in)
Ring end gap Top 0.200-0.400 mm (0.0079-0.0157 in)
Second 0.200-0.400 mm (0.0079-0.0157 in)
Oil (side rail) 0.200-0.400 mm (0.0079-0.0157 in)
Connecting rod small end ID 16.006-16.020 mm (0.6302-0.6307 in)
Connecting rod big end ID 28.000-28.015 mm (1.1024-1.103 in)
Piston pin outer diameter 16.002-16.013 mm (0.63-0.6304 in)
Crankshaft main journal diameter: 52.000 mm (2.0472 in)
Crankpin diameter: 27.969-27.984 mm (1.1011-1.1017 in)
Cylinder Head
Valve Arrangement: OHV
Valves: 2
Valve head diameter: INTAKE 21.000 mm (0.8268 in)
EXHAUST 19.000 mm (0.748 in)
Stem outer diameter (standard): INTAKE 5.500 mm (0.2165 in)
EXHAUST 5.500 mm (0.2165 in)
Valve length (standard): INTAKE 64.500 mm (2.5394 in)
EXHAUST 64.500 mm (2.5394 in)
Camshaft journal diameter: 14.950 mm (0.5886 in)
Cam height: INTAKE 26.850-26.950 mm (1.0571-1.061 in)
EXHAUST 26.630-26.730 mm (1.0484-1.0524 in)

Tightening torque specs

Tightening torque specs
Cylinder head bolt 20 Nm; 2.0 kg·m; 14 ft·lb
Flywheel 65 Nm; 6.5 kg·m; 48 ft·lb
Oil drain plug 17 Nm; 1.73 kg·m; 12.5 ft·lb
Spark plug 20 N·m (2 kg·m, 14.7 ft·lb)

Service Information

Idle speed 2,000 ± 150 rpm
Cylinder compression 4.0-6.0 kg/cm2 (400-600 kPa, 57-85 psi) at 600 rpm
Valve clearance
Intake valve clearance 0.10 mm (0.0039 in)
Exhaust valve clearance 0.10 mm (0.0039 in)
Oil system
Oil type API SG, SH, SJ or higher
Recommended oil SAE 10W-30
Oil capacity 0.6 L (0.63 US. qt, 0.53 Imp. qt.)
Ignition system
Spark plug NGK: BPR4ES, Champion: RN14YC, RC14YC
Spark plug gap 0.8 mm (0.0315 in)
Ignition module air gap 0.4-0.6 mm (0.015-0.023 in)
