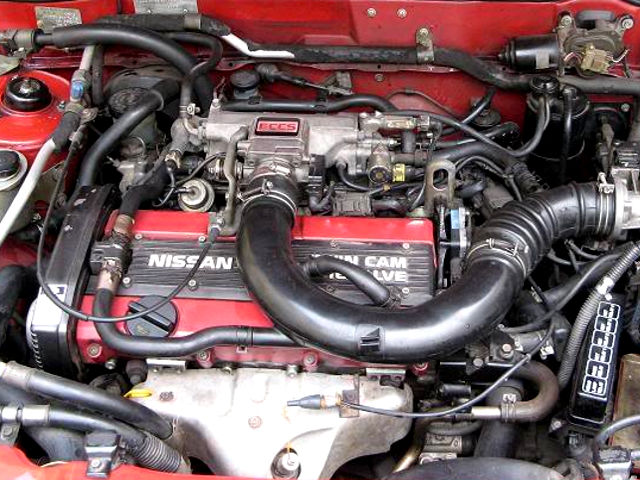

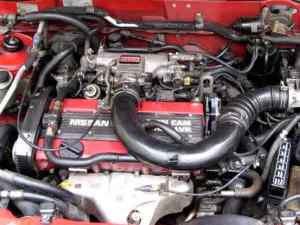

The Nissan CA18DE is a 1.8 liter (1,809 cc, 110.39 cu in) straight-4, four-stroke cycle gasoline engine from Nissan CA-family. The CA18DE motor was produced from 1987 through 1989.
The Nissan CA18DE engine has DOHC (double overhead camshaft) design with four valves per cylinder (16 valves in total), cast-iron block and an aluminum cylinder head; fully balanced five-bearing crankshaft. The engine is equipped with Multiport Fuel Injection system.
The CA18DE motor has an 83.0 mm (3.268 in) cylinder bore and 83.6 mm (3.291 in) piston stroke with a compression ratio rating of 10.0:1. It produced 134 PS (99 kW; 132 HP) at 6,400 rpm of horsepower and 159 Nm (16.2 kg·m; 117.3 ft·lb) at 5,200 rpm of torque.
The breakdown of the engine code is as follows:
- CA – Engine Family
- 18 – 1.8 Liter Displacement
- D – DOHC (Dual Overhead Camshafts)
- E – Multi Point Fuel Injection
General information
| Engine Specifications | |
| Engine code | CA18DE |
| Layout | Four stroke, Inline-4 (Straight-4) |
| Fuel type | Gasoline |
| Production | 1987-1989 |
| Displacement | 1.8 L, 1,809 cm3 (110.39 cu in) |
| Fuel system | Multiport Fuel Injection |
| Power adder | None |
| Max. horsepower | 134 PS (99 KW; 132 HP) at 6,400 rpm |
| Max. torque | 159 Nm (16.2 kg·m; 117.3 ft·lb) at 5,200 rpm |
| Firing order | 1-3-4-2 |
| Dimensions (L x H x W): | – |
| Weight | – |
Cylinder block
The Nissan CA18DE motor has a cast-iron cylinder block. The cylinder block, a monoblock special casting structure, employs a five-bearing-support system. The CA18DE engine cylinder bore is 83.0 mm (3.268 in) and the piston stroke is 83.6 mm (3.291 in), compression ratio rating is 10.0:1.
Each piston is fitted with two compression rings and a single oil ring. The cylinder block height is 204.8 mm (8.06 in).
| Cylinder block | ||
| Cylinder block alloy | Cast iron | |
| Compression ratio: | 10.0:1 | |
| Cylinder bore: | 83.0 mm (3.268 in) | |
| Piston stroke: | 83.6 mm (3.291 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Number of main bearings: | 5 | |
| Cylinder inner diameter (standard): | 83.000-83.050 mm (3.2677-3.2697 in) | |
| Piston skirt diameter (standard): | 82.975-83.025 mm (3.2667-3.2687 in) | |
| Piston pin outer diameter: | 19.995-20.000 mm (0.7872-0.7874 in) | |
| Piston ring side clearance: | Top | 0.040-0.073 mm (0.0016-0.0029 in) |
| Second | 0.030-0.063 mm (0.0012-0.0025 in) | |
| Oil | 0.025-0.085 mm (0.0010-0.0033 in) | |
| Piston ring end gap: | Top | 0.22-0.39 mm (0.0087-0.0154 in) |
| Second | 0.19-0.45 mm (0.0075-0.0177 in) | |
| Oil | 0.20-0.76 mm (0.0079-0.0299 in) | |
| Connecting rod center distance: | 132.95-133.05 mm (5.2342-5.2382 in) | |
| Crankshaft journal diameter: | 52.951-52.964 mm (2.0847-2.0852 in) | |
| Crankpin diameter: | 44.961-44.974 mm (1.7701-1.7706 in) | |
| Crankshaft center distance: | 41.77-41.83 mm (1.6445-1.6468 in) | |
Cylinder head
| Cylinder head | ||
| Valve Arrangement: | DOHC | |
| Valves: | 16 (4 valves per cylinder) | |
| Intake/Exhaust duration: | – | |
| Valve head diameter: | INTAKE | 34.0-34.2 mm (1.339-1.346 in) |
| EXHAUST | 28.0-28.2 mm (1.102-1.110 in) | |
| Valve length: | INTAKE | 88.8-89.0 mm (3.496-3.504 in) |
| EXHAUST | 89.2-89.4 mm (3.512-3.520 in) | |
| Valve stem diameter: | INTAKE | 5.965-5.980 mm (0.2348-0.2354 in) |
| EXHAUST | 5.945-5.960 mm (0.2341-0.2346 in) | |
| Valve spring free length: | INTAKE | 43.10 mm (1.697 in) |
| EXHAUST | 43.10 mm (1.697 in) | |
Maintenance data
| Compression pressure | |
| Standard | 14.0 kg/cm2 (199 psi) / 350 rpm |
| Minimun | 12.0 kg/cm2 (171 psi) / 350 rpm |
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 10W-30 |
| Oil type API | SF/CC or SF/CD |
| Engine oil capacity (Refill capacity) | With oil filter: 3.6 l (3-7/8 US qt, 3-1/8 Imp qt) Without oil filter: 3.2 l (3-3/8 US qt, 2-7/8 Imp qt) |
Vehicle applications
| Model | Years Produced |
| Nissan Pulsar NX SE (USA and Canada) | – |
| Nissan EXA (Australia and Japan) | – |
| Nissan Skyline 1800I (HR31),(Japan) | 1985-1991 |
| Nissan Silvia (S13) | 1989-1990 |
| Nissan Sunny N13 (UK) | – |
| Nissan Sunny B12 Coupe (UK) | – |
| Nissan Bluebird T72 (UK) | – |
| Nissan Bluebird | 1987-1989 |
| Nissan Auster | 1985-1990 |
| Nissan EXA (Australia) | 1988-1991 |
