Nissan RD28

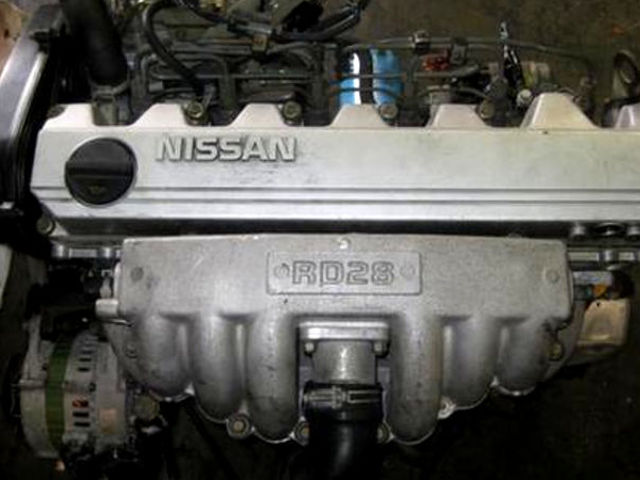

Nissan RD28The Nissan RD28 is a 2.8 l (2,826 cc, 172.44 cu-in) straight six, water-cooled naturally aspirated diesel engine from Nissan RD-family, manufactured by the Nissan Motor Company since 1985 to 1999.

The RD28 has a cast-iron cylinder block, an aluminum cylinder head with SOHC (Single overhead camshaft) and two valves per cylinder. The Nissan RD28 compression ratio is 21.2:1. Cylinder bore and piston stroke are 85.0 mm (3.35 in) and 83.0 mm (3.27 in), respectively.

The early engine versions produced 94 PS (69 kW, 93 HP) at 4,800 rpm and 177 Nm (18.0 kg·m; 130.6 ft·lb) at 2,400 rpm; the later versions produced 100 PS (73 kW; 98 HP) at 4,800 rpm of horsepower and 178 Nm (18.2 kg·m; 131.2 ft·lb) at 2,400 rpm or of torque.

The breakdown of the engine code is as follows:

  • RD – Engine Family
  • 28 – 2.8 Liter Displacement

General information

Engine Specifications
Engine code RD28
Layout Straight-6, vertical
Fuel type Diesel
Production 1985-1999
Displacement 2.8 L, 2,826 cc (172.44 cu in)
Injection pump Zexel (VE-type)
Power adder None
Horsepower 94 PS (69 kW, 93 HP) at 4,800 rpm
100 PS (73 kW; 99 HP) at 4,800 rpm
Torque output 177 Nm (18.0 kg·m; 130.6 ft·lb) at 2,400 rpm
178 Nm (18.2 kg·m; 131.2 ft·lb) at 2,400 rpm
Injection order 1-5-3-6-2-4
Dimensions (L x H x W):
Weight

Cylinder block

The RD28 cylinder block has a monoblock high-strength cast iron structure and seven-bearing-support system. The engine has a drop-forged steel crankshaft with balance weights. The RD28 motor has two compression and single oil control ring. The cylinder bore is 85.0 mm (3.35 in), piston stroke is 83.0 mm (3.27 in) and compression ratio rating is 21.2:1. The connecting rod’s length is 140.0 mm (5.512 in), the crankshaft journal diameter is 54.0 mm (2.13 in) and crankpin diameter is 50.0 mm (1.97 in).

Cylinder block
Cylinder block alloy Cast iron
Compression ratio: 21.2:1
Cylinder bore: 85.0 mm (3.35 in)
Piston stroke: 83.0 mm (3.27 in)
Number of piston rings (compression / oil): 2 / 1
Number of main bearings: 7
Block Height:
Cylinder liner inner diameter: 85.000-85.010 mm (3.3465-3.3468 in)
Piston skirt diameter 84.960-84.970 mm (3.3449-3.3453 in)
Piston ring side clearance: Top 0.060-0.093 mm (0.0024-0.0037 in)
Second 0.040-0.073 mm (0.0016-0.0029 in)
Piston ring end gap: Top 0.12-0.30 mm (0.0047-0.0118 in)
Second 0.38-0.53 mm (0.0150-0.209 in)
Piston pin outer diameter 26.994-27.000 mm (1.0628-1.0630 in)
Piston pin bore diameter 26.991-26.999 mm (1.0626-1.0630 in)
Connecting rod center distance: 140.0 mm (5.512 in)
Crankshaft journal diameter: 54.967-54.975 mm (2.1641-2.1644 in)
Crankpin diameter: 49.968-49.974 mm (1.9672-1.9675 in)

Main bearing cap bolts tightening procedure and torque specs:

  • 69-78 Nm; 7.0-8.0 kg·m; 51-58 ft·lb

After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.

Connecting rod bearing cup bolt

  • Step 1: 14-16 Nm; 1.4-1.6 kg·m; 10-12 ft·lb
  • Step 2: 37-45 Nm; 3.8-4.6 kg·m; 27-33 ft·lb

Crankshaft pulley bolt

  • 142-152 Nm; 14.5-15.5 kg·m; 105-112 ft·lb

Flywheel fixing bolts

  • 137-157 Nm; 14.0-16.0 kg·m; 101-116 ft·lb

Cylinder head

The RD28 has a one-piece aluminum cylinder head with single overhead camshaft and two valves per cylinder: one intake and exhaust made of special heat-resistant steel. The camshaft is driven by a timing belt from the crankshaft. Intake valves are 39.0 mm (1.54) in diameter, and the exhaust valves are 32.0 mm (1.26 in).

The early Nissan RD28 engines were equipped with valve shims for adjusting the valve clearance, the later versions used self-adjusting hydraulic tappets.

Cylinder head
Cylinder head alloy Aluminum
Valve Arrangement: SOHC
Valves: 12 (2 valves per cylinder)
Intake valves diameter: 39.0-39.2 mm (1.535-1.543 in)
Exhaust valves diameter: 32.0-32.2 mm (1.260-1.268 in)
Intake valve timing: 232°
Exhaust valve timing: 248°
Inlet valves length: 101.53-101.97 mm (3.9972-4.0146 in) – with EGR
102.53-102.97 mm (4.0366-4.0539 in)
Exhaust valves length: 101.38-101.82 mm (3.9913-4.0087 in) – with EGR
102.38-102.82 mm (4.0307-4.0480 in)
Intake valve stem diameter: 6.965-6.980 mm (0.2742-0.2748 in)
Exhaust valves stem diameter: 6.945-6.960 mm (0.2734-0.2740 in)
Camshaft journal diameter: 29.935-29.955 mm (1.1785-1.1793 in)
Inlet cam height: 48.70-48.75 mm (1.9173-1.9193 in)
Exhaust cam height: 49.15-49.20 mm (1.9350-1.9370 in)

Head tightening procedure and torque specs:
M12 bolt

  • Step 1: 29 Nm; 3.0 kg·m; 22 ft·lb
  • Step 2: 113 Nm; 11.5 kg·m; 83 ft·lb
  • Step 3: Loosen all bolts completely
  • Step 4: 29 Nm; 3.0 kg·m; 22 ft·lb
  • Step 4: 118-127 Nm; 12.0-13.0 kg·m; 87-94 ft·lb or turn all bolts 100-105°

Crankshaft gear bolt

  • 123-132 Nm; 12.5-13.5 kg·m; 90-98 ft·lb

Maintenance data

Compression pressure
Standard 31 kg/m2 (30.4 bar) / 200 rpm
Minimun 25 kg/m2 (24.5 bar) / 200 rpm
Compression differential limit between cylinders 5 kg/m2 (4.9 bar) / 200 rpm
Oil system
Recommended engine oil 10W-30 or 10W-40 (“CDII” or higher)
Engine oil capacity With filter: 6.7 L
Without filter: 6.0 L
Fuel system
Idling 600-700 rpm
Max engine speed under no load 5000 rpm
Initial injection pressure 132.4-140.2 bar; 135-143 kg/cm2

Vehicle applications

Model Years Produced
Nissan Skyline R31 1985–1987
Nissan Laurel C32-C34 1986–1993
Nissan Cedric Y30-Y32 1985–1993
Nissan Gloria Y30-Y32 1985–1993
Nissan Cedric Y30 (commercial, taxi) 1987–1999
Nissan Gloria Y30 (commercial, taxi) 1987–1999
Nissan Crew K30 1993–1999
Nissan Cedric Y32-Y33 1993–1999
Nissan Gloria Y32-Y33 1993–1999
Nissan Laurel C34-C35 1994–1999
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.
