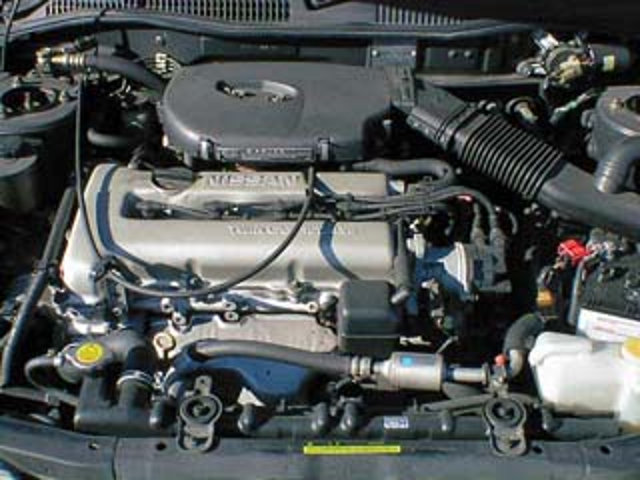

The Nissan SR18Di is a 1.8 l (1838 cc) straight four, 4-stroke internal combustion gasoline engine from SR family, manufactured by the Nissan Motor Company from 1989 through 1993.
The Nissan SR18Di motor uses some cast-iron block, aluminum head with the dual overhead camshaft (DOHC) and Single Point Fuel Injection system.
The SR18Di engine bore is 82.5 mm, stroke is 86 mm and the compression ratio rating is 9.5:1.
With a 9.5:1 static compression ratio, the factory quoted power and torque outputs are 110 PS (81 kW; 108 hp) at 6500 rpm and 150 Nm (110 lbf·ft) at 4000 rpm.
This engine was used in Nissan medium models for Japan domestic market and some UK models.
The breakdown of the engine code is as follows:
- SR – Engine Family
- 18 – 1.8 Liter Displacement
- D – DOHC (Dual Overhead Camshafts)
- i – Throttle Body Fuel Injection
General information
Engine Specifications | |
Engine code | SR18Di |
Layout | Four stroke, Inline-4 (Straight-4) |
Fuel type | Gasoline |
Production | – |
Displacement | 1.8L, 1838 cc (112.1 cu in) |
Fuel system | Single Point Fuel Injection |
Power adder | None |
Power output | 81 kW (110 HP) at 6,400 rpm |
Torque output | 156 Nm (115 lb·ft) at 4,000 rpm |
Firing order | 1-3-4-2 |
Dimensions (L x H x W): | – |
Weight | 330 lbs (150 kg) |
Cylinder block
The cylinder block, which is of a monoblock special casting structure, adopts a five-bearing-support system for quietness and higher durability. Cylinder bore was 82.5 mm (3.25 in) and stroke was 86 mm (3.4 in). The 1.8-litre SR18Di employs the same block as the SR18DE with Multi-Point Fuel Injection System.
Cylinder block | |
Cylinder block alloy | Cast iron |
Compression ratio: | 9.5:1 |
Cylinder bore: | 82.5 mm (3.25 in) |
Piston stroke: | 86 mm (3.4 in) |
Bore Pitch (Bore Spacing): | 97.0 mm (3.8 in) |
Block Height: | – |
Con rod length: | – |
Crankshaft journal diameter: | 55.0 mm (2.165 in) |
Crankpin diameter: | 48.0 mm (1.889 in) |
Cylinder head
The cylinder head was made of light and strong aluminum alloy with good cooling efficiency. Two camshafts were driven by a single row chain driven by the crankshaft. Intake valves are 32 mm in diameter, and the exhaust valves are 28 mm.
Cylinder head | |
Cylinder head alloy | Aluminum |
Valve Arrangement: | DOHC, chain drive |
Valves: | 16 (4 valves per cylinder) |
Intake valves diameter: | 32.0 mm (1.259 in) |
Exhaust valves diameter: | 28.0 mm (1.102 in) |
Problems and malfunctions
This engine is as reliable and durable as SR20DE. It does not have any serious problems or faults and will serve more than 250,000 miles of mileage (400,000 km).
Maintenance data
Oil system | |
Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
Recommended engine oil |
5W-30 5W-40 10W-30 10W-40 |
Engine oil capacity, L (qt.) | 3.4 (3.6) |
Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
Ignition system | |
Spark plug | Champion RC9MCC |
Spark Plug Wire | Champion LS-34 |
Vehicle applications
Model | Years Produced |
Nissan Avenir W10 | 1990-1992 |
Nissan Bluebird U12 | 1989-1991 |
Nissan Primera P10 | 1990–1993 |
Nissan Presea R10 | 1990–1992 |
