Opel X14XE

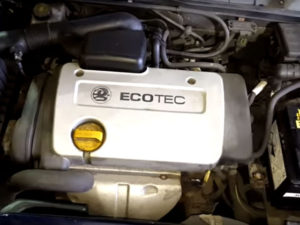

Opel X14XEThe Opel X14XE is a 1.4 l (1,389 cc, 84.76 cu-in) straight-four 4-stroke natural aspirated gasoline small-displacement engine developed by Opel, at the time a subsidiary of General Motors. The engine was manufactured from 1994 to 2000.

The X14XE uses a cast-iron engine block with a cast-iron crankshaft and aluminum head with dual belt-driven overhead camshafts (DOHC) and four valves per cylinder (16 valves in total). The engine is equipped with Multec-S ECU (Euro II).

Bore and stroke are 77.6 mm (3.06 in) and 73.4 mm (2.89 in), respectively. The compression ratio rating is 10.5:1. The X14XE engine produces 90 PS (66 kW; 88 HP) at 6,000 rpm of maximum horsepower and 125 N·m (12.7 kg·m, 92.1 ft·lb) at 4,000 rpm of peak torque.

The breakdown of the engine code is as follows:

  • X – Euro 2 engine
  • 14 – 1.4 Liter displacement
  • X – Comression ratio from 10 to 11.5:1
  • E – Multi Point Fuel Injection system

General information

Engine Specifications
Engine code Opel X14XE
Layout Four stroke, Inline-4 (Straight-4)
Fuel type Gasoline (petrol)
Production 1994-2000
Displacement 1.4 L, 1,389 cm3 (84.76 cu in)
Fuel system Multipoint fuel injection (MFI)
Power adder None
Power output 90 PS (66 kW; 88 HP) at 6,000 rpm
Torque output 125 N·m (12.7 kg·m, 92.1 ft·lb) at 4,000 rpm
Firing order 1-3-4-2
Dimensions (L x W x H):
Weight

Cylinder block

The engine used a cast-iron semi-closed deck cylinder block and a cast-iron crankshaft five-bearings supported system. Bore and stroke are 77.6 mm (3.06 in) and 73.4 mm (2.89 in). Compression ratio rating is 10.5:1.

Cylinder block
Cylinder block alloy Cast-iron
Compression ratio: 10.5:1
Cylinder bore: 77.6 mm (3.06 in)
Piston stroke: 73.4 mm (2.89 in)
Number of piston rings (compression / oil): 2 / 1
Cylinder inner diameter (standard): 77.575-77.585 mm (3.0541-3.0545 in)
Piston skirt diameter (standard): 77.555-77.565 mm (3.0533-3.0537 in)
Piston pin outer diameter: 17.997-18.000 mm (0.7085-0.7087 in)
Piston ring side clearance: Top 0.020-0.040 mm (0.0008-0.0016 in)
Second 0.040-0.060 mm (0.0016-0.0024 in)
Oil 0.010-0.030 mm (0.0004-0.0012 in)
Piston ring end gap: Top 0.30-0.50 mm (0.0118-0.0197 in)
Second 0.30-0.50 mm (0.0118-0.0197 in)
Oil 0.40-1.40 mm (0.0157-0.0551 in)
Crankshaft main journal diameter: 54.980-54.997 mm (2.1646-2.1652 in)
Crankpin diameter: 42.971-42.987 mm (1.6918-1.6924 in)

Cylinder head

The cylinder head is made of an aluminum alloy. The X14XE engine has belt-driven dual overhead camshafts. Valves are actuated via roller finger followers with hydraulic tappets.

Cylinder head (after 2006)
Valve Arrangement: DOHC, belt driven
Valves: 16 (4 valves per cylinder)
Valve head diameter: INTAKE 31.0 mm (1.2205 in)
EXHAUST 27.5 mm (1.0827 in)
Valve length: INTAKE 101.65 mm (4.002 in)
EXHAUST 102.46 mm (4.034 in)
Valve stem diameter: INTAKE 5.995-5.970 mm (0.236-0.235 in)
EXHAUST 5.935-5.950 mm (0.2337-0.2343 in)

Head tightening procedure and torque specs:

  • Step 1: 25 Nm (2.5 kg·m, 18.4 ft·lb)
  • Step 2: Turn all bolts 90°
  • Step 3: Turn all bolts 90°
  • Step 4: Turn all bolts 90°

Maintenance data

Compression pressure
Standard: 15.0 bar (15.3 kg/m2; 218 psi)
Minimum: 12.0 bar (12.2 kg/m2; 174 psi)
Compression differential limit between cylinders: 1.0 bar (1 kg/m2; 15 psi)
Oil system
Oil consumption , L/1000 km (qt. per miles) up to 0.5 (1 qt. per 1200 miles)
Recommended engine oil 5W-30, 5W-40, 10W-30, 10W-40
Oil type ACEA A2-96 / A3-96
Engine oil capacity (Refill capacity) With filter change: 3.25 L (3.43 US. qt, 2.86 Imp. qt.)
Oil change interval, km (miles) 30,000 (18,000)
Ignition system
Spark plug Bosch FLR8LDCU
Spark plug gap 1.0 mm (0.0394 in)
Spark plug tightening torque 25 Nm (2.55 kg·m; 18.45 ft·lb)

Vehicle applications

Model Years Produced
Opel Corsa B 1.4i 16v 1994-2000
Opel Tigra 1.4i 16v 1994-2000
Opel Astra F 1.4i 16v 1996-1998
Opel Astra G 1.4i 16v 1998-2000
