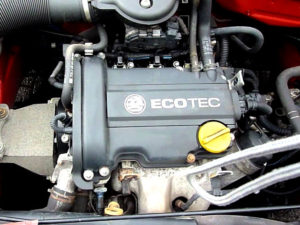

The Opel Z10XE is a 1.0 l (973 cc, 60.96 cu-in) straight-three four-stroke natural aspirated gasoline small-displacement engine from the GM Family O Ecotec engines, developed by Opel, at the time a subsidiary of General Motors. The engine was manufactured from 2000 to 2003.
This engine was a modified version of the engine Opel X10XE, under the emission standards Euro 4. The Opel Z10XE engine uses a light-weight cast-iron semi-closed deck engine block with a cast-iron crankshaft and aluminum head with dual chain-driven overhead camshafts (DOHC) and four valves per cylinder (12 valves in total). The engine is equipped with the EGR system.
Bore and stroke are 72.5 mm (2.85 in) and 78.6 mm (3.09 in), respectively. Compression ratio rating is 10.1:1. The Z10XE engine produces 58 PS (43 kW; 58 HP) at 5,600 rpm of maximum horsepower and 85 Nm (8.7 kg·m; 62.7 ft·lb) at 2,800 rpm of maximum torque.
The breakdown of the engine code is as follows:
- Z – Euro 4 engine
- 10 – 1.0 Liter displacement
- X – Comression ratio from 10 to 11.5:1
- E – Multi Point Fuel Injection system
General information
| Engine Specifications | |
| Engine code | Opel Z10XE |
| Layout | Four stroke, Inline-3 (Straight-3) |
| Fuel type | Gasoline (petrol) |
| Production | 2000-2003 |
| Displacement | 1.0 L, 973 cm3 (60.96 cu in) |
| Fuel system | Multipoint fuel injection (MFI) |
| Power adder | None |
| Power output | 58 PS (43 kW; 58 HP) at 5,600 rpm |
| Torque output | 85 Nm (8.7 kg·m; 62.7 ft·lb) at 2,800 rpm |
| Firing order | 1-2-3 |
| Dimensions (L x W x H): | – |
| Weight | – |
Cylinder block
The engine used a cast-iron semi-closed deck cylinder block and a cast-iron crankshaft four-bearings supported system. Bore and stroke are 72.5 mm (2.85 in) and 78.6 mm (3.09 in). Compression ratio rating is 10.1:1.
| Cylinder block | ||
| Cylinder block alloy | Cast-iron | |
| Compression ratio: | 10.1:1 | |
| Cylinder bore: | 72.5 mm (2.85 in) | |
| Piston stroke: | 78.6 mm (3.09 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
Cylinder head
The cylinder head is made of an aluminum alloy. The Z10XE engine has chain-driven dual overhead camshafts. Valves are actuated via roller finger followers with hydraulic tappets.
| Cylinder head | ||
| Cylinder head alloy: | Aluminium | |
| Valve Arrangement: | DOHC, chain-driven | |
| Valves: | 12 (4 valves per cylinder) | |
| Valve timing: | INTAKE | – |
| EXHAUST | – | |
| Valve head diameter: | INTAKE | 27.90-28.10 mm (1.0984-1.1062 in) |
| EXHAUST | 24.90-25.10 mm (0.9803-0.9880 in) | |
Head tightening procedure and torque specs:
- Step 1: 25 Nm (2.5 kg·m, 18.4 ft·lb)
- Step 2: Turn all bolts 60°
- Step 3: Turn all bolts 60°
- Step 4: Turn all bolts 60°
Maintenance data
| Oil system | |
| Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
| Recommended engine oil | 5W-30, 5W-40, 10W-30, 10W-40 |
| Oil type | API SG / CD CCMC G4 / G5 |
| Engine oil capacity (Refill capacity) | With filter change 3.0 l |
| Oil change interval, km (miles) | 30,000 (18,000) |
| Ignition system | |
| Spark plug | Bosch FLR8LDCU |
| Spark plug gap | 1.0 mm (0.0394 in) |
| Spark plug tightening torque | 25 Nm (2.55 kg·m; 18.45 ft·lb) |
Vehicle applications
| Model | Years Produced |
| Opel / Vauxhall Corsa C 1.0 12v Eco | 2000-2003 |
| Opel / Vauxhall Agila A 1.0 12v | 2000-2003 |
