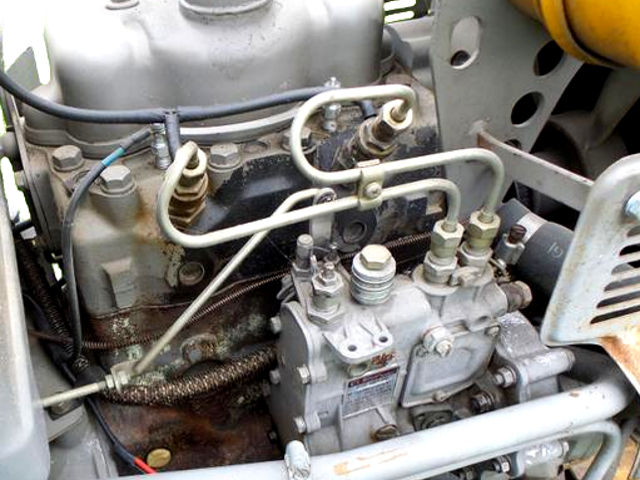

The Toyosha P126 is a 1.3 l (1,263 cc, 77.07 cu-in) two-cylinder liquid-cooled 4-stroke internal combustion diesel engine, manufactured by Japanese company Hinomoto under the Toyosha brand.
This engine has two cylinders, overhead valves (2 per cylinder), three main bearings, flyweight governor and Kiki fuel injection pump. The P126 engine uses an electric starter, 12V-15A alternator, and voltage regulator.
A 92 mm (3.62 in) cylinder bore and 95 mm (3.74 in) piston stroke give the motor a total of 1,263 cc, (77.07 cu-in) of displacement. Compression ratio rating is 23:1. The Toyosha P126 engine produced 25.0 HP (18.6 kW) of maximum output.
|Type||4-stroke, OHV, two cylinders|
|Displacement||1.3 L, 1,263 cm3 (77.1 cu-in)|
|Max. horsepower||25.0 HP (18.6 kW)|
|Max. torque (crank PTO)||–|
|Fuel injection pump||Kiki|
|Starting system||Electric starter|
|Fuel used||Diesel fuel|
|Maximum speed||2,600 ± 150 rpm|
|Idle speed||750 ± 150 rpm|
|Intake valve||0.30 mm (0.012)|
|Exhaust valve||0.35 mm (0.014)|
|Oil type||Diesel oil (API Service Classification CC or CD)|
|Recommended oil||SAE 10W-30|
With filter change: 4.6 l (5.0 qt.)
Without filter change: 4.0 l (4.2 qt.)
