Toyosha S107

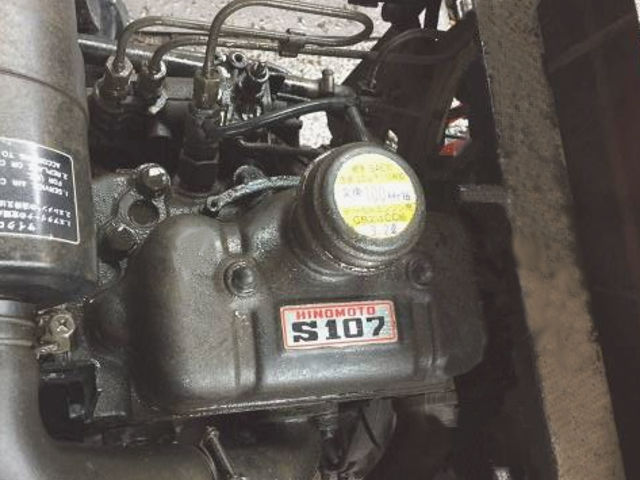

Toyosha S107The Toyosha S107 is a 1.1 l (1,070 cc, 65.3 cu-in) two-cylinder liquid-cooled 4-stroke internal combustion diesel engine, manufactured by Japanese company Hinomoto under the Toyosha brand.

This engine has two cylinders, overhead valves (2 per cylinder), three main bearings, flyweight governor and glow plugs for starting aid. The S107 engine used a cast-iron cylinder block, cast-iron cylinder block without sleeves and aluminum-alloy pistons.

An 88.0 mm (3.46 in) cylinder bore and 88.0 mm (3.46 in) piston stroke give the motor a total of 1,070 cc, (65.3 cu-in) of displacement. The Toyosha S107 engine produced 20.0 HP (14.9 kW) of maximum power output.

General information

Engine Specifications
Type4-stroke, OHV, two cylinders
Displacement1.1 L, 1,070 cm3 (65.3 cu-in)
Max. horsepower20.0 HP (14.9 kW)
Max. torque (crank PTO)
Cooling systemLiquid-cooled
Fuel injection pumpKiki
Starting systemElectric starter, glow plugs for starting aid
Fuel usedDiesel fuel

Service Information

Valve clearance
Intake valve0.30 mm (0.012)
Exhaust valve0.35 mm (0.014)
Oil system
Oil typeDiesel oil (API Service Classification CC or CD)
Recommended oilSAE 10W-30
Oil capacity3.7 L (3.91 US. qt, 3.26 Imp. qt.)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.


  1. Want to know on witch other equipment i will find the Toyosha 1.1 litre motor , other than the tractor M F 205

  2. Does the Toyosha s107 have a thermostat?
    My MF 205 over heated, ordered one from Yesterday’s Tractor but couldn’t find where it would go.
    Top hose and housing off but nothing. Thanks

  3. bonjour je serais a la recherche de plunger and barrel marquer k126 pour mon MF 205-4 numéro de pompe a injection 104302 6640
