Toyota 3T

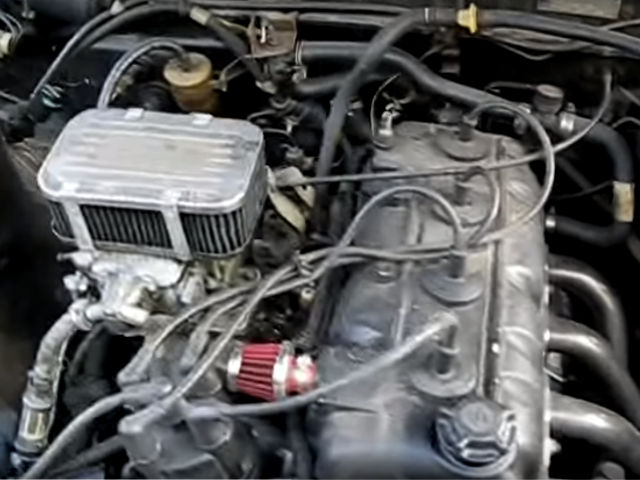

Toyota 3TThe Toyota 3T is a 1.8 liter (1,770 cc, 108.0 cu-in) straight-four, four-stroke carburetor gasoline engine from Toyota T-family. TheToyota 3T engine was produced from 1977 through 1985.

This engine used OHV (overhead valve) design with two valves per cylinder (8 valves in total), cast-iron cylinder block and an aluminium cylinder head with hardened valve seats and a hemispherical combustion chamber design (HEMI). The 3T engine utilizes a timing chain.
Bore and stroke are 85.0 mm (3.35 in) and 78.0 mm (3.07 in), respectively.

The 3T engine was available in different variants:

  • The 3T-C with emission control system.
  • The 3T-U with Toyota Total Clean System (TTC-C)
  • The 3T-EU with EFI sysytem and Toyota Total Clean System (TTC-C).

The Toyota 3T engine output ranges from 71 PS (52 kW, 70 HP) to 106 PS (78 kW, 105 HP) of horsepower and from 126 Nm (12.8 kg·m; 93 ft·lb) to 162 Nm (16.5 kg·m; 119.6 ft·lb) of torque between the California 3T-C and JDM-spec fuel-injected 3T-EU.

The breakdown of the engine code is as follows:

  • 3 – 3nd generation engine
  • T – Engine family

General information

Engine Specifications
Engine code 3T
Layout Four stroke, Inline-4 (Straight-4)
Fuel type Gasoline
Production 1977-1985
Displacement 1.8 L, 1,770 cm3 (108.0 cu in)
Fuel system Carburetor or EFI
Power adder None
Max. horsepower From 71 PS (52 kW, 70 HP) to 106 PS (78 kW, 105 HP)
Max. torque From 126 Nm (12.8 kg·m; 93 ft·lb) to 162 Nm (16.5 kg·m; 119.6 ft·lb)
Firing order 1-3-4-2
Dimensions (L x H x W):
Weight

Cylinder block

The Toyota 3T motor has a cast-iron cylinder block with three main bearings supported system. The 2T engine cylinder bore is 85.0 mm (3.35 in) and the piston stroke is 78.0 mm (3.07 in), compression ratio rating of 9.0:1.

The pistons are each fitted with two compression rings and a single oil ring.

Cylinder block
Cylinder block alloy Cast iron
Compression ratio: 9.0:1
Cylinder bore: 85.0 mm (3.35 in)
Piston stroke: 78.0 mm (3.07 in)
Number of piston rings (compression / oil): 2 / 1
Number of main bearings: 3
Cylinder inner diameter (standard): 85.000-85.050 mm (3.3460-3.3480 in)
Piston skirt diameter (standard): 84.940-84.990 mm (3.3440-3.3460 in)
Piston ring side clearance: Top 0.020-0.060 mm (0.0008-0.0024 in)
Second 0.015-0.055 mm (0.0006-0.0022 in)
Oil 0.015-0.060 mm (0.0006-0.0024 in)
Piston ring end gap: Top 0.250-0.560 mm (0.0098-0.022 in)
Second 0.200-0.510 mm (0.0079-0.0201 in)
Oil 0.300-0.780 mm (0.0118-0.0307 in)
Crankshaft main journal diameter: 57.976-58.000 mm (2.2825-2.2835 in)
Crankpin diameter: 47.976-48.000 mm (1.8888-1.8898 in)

Main bearing cap bolts tightening procedure and torque specs:

  • 60-80 Nm; 6.5-8.5 kg·m; 47-61 ft·lb

After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.

Connecting rod bearing bolts

  • 40-50 Nm; 4.0-5.0 kg·m; 30-36 ft·lb

Cylinder head

Cylinder head
Cylinder head alloy Aluminum
Valve Arrangement: OHV
Valves: 8 (2 valves per cylinder)
Valve length: INTAKE 109.0 mm (4.2913 in)
EXHAUST 108.5 mm (4.2716 in)
Valve stem diameter: INTAKE 7.970-7.985 mm (0.3138-0.3144 in)
EXHAUST 7.965-7.980 mm (0.3136-0.3142 in)
Valve spring free length: INTAKE 42.1 mm (1.6575 in)
EXHAUST 42.1 mm (1.6575 in)
Camshaft lobe height: INTAKE 38.360-38.460 mm (1.5102-1.5142 in)
EXHAUST 38.250-38.350 mm (1.5059-1.5098 in)

Maintenance data

Valve clearance (Hot)
Intake valve 0.20 mm (0.008 in)
Exhaust valve 0.33 mm (0.013 in)
Valve clearance (Cold)
Intake valve 0.18 mm (0.007 in)
Exhaust valve 0.30 mm (0.012 in)
Compression pressure
Standard 11.5 kg/cm2 (163 psi) / 250 rpm
Minimun 9.0 kg/cm2 (128 psi) / 250 rpm
Oil system
Oil consumption , L/1000 km (qt. per miles) up to 0.5 (1 qt. per 1200 miles)
Recommended engine oil 10W-30
Oil type API SE
Engine oil capacity (Refill capacity) With oil filter: 3.8 l (4.0 US qt, 3.3 Imp qt)
Without oil filter: 3.3 l (3.5 US qt, 2.9 Imp qt)
Ignition system
Spark plug NGK: BPR5EA, BPR5ES DENSO: W14EXR-U, W16EXR-U
Spark plug gap 0.8 mm (0.0315 in) or 1.1 mm (0.0433 in)
Spark plug tightening torque 18 Nm (1.8 kg⋅m, 13 ft⋅lb)

Vehicle applications

Model Years Produced
3T-C
Toyota Corolla (TE72L / 72R)
3T-U
Toyota Corona (TT121)
Toyota Mark II (TX30)
Toyota Chaser (TX30)
3T-EU
Toyota Corona 1800 SL (TT132)
Toyota Celica Camry 1800 SX (TA57)
Toyota Corona (TT142)
Toyota Celica
Toyota Carina 1800 ST EFI (TA62)
