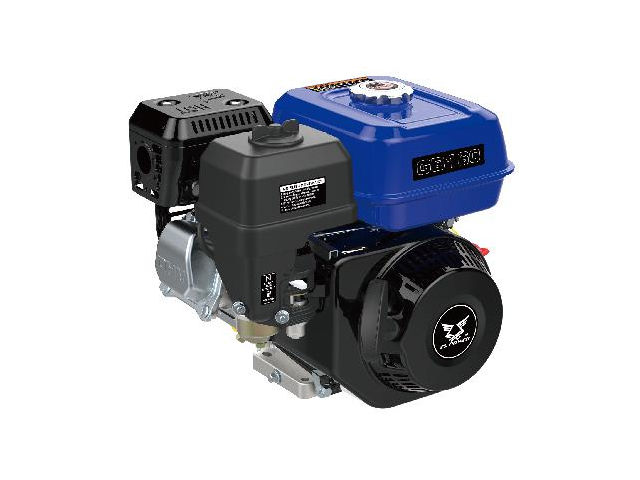

The Zongshen GB160 is a 163 cc (9.95 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine manufactured by Zongshen Power Co. for general-purpose applications.
The Zongshen GB160 engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter. Cylinder bore and piston stroke are 68.0 mm (2.68 in) and 45.0 mm (1.77 in), respectively.
The Zongshen ZS GB160 produced 4.4 PS (3.2 kW; 4.3 HP) at 3,600 rpm of maximum output power and 8.8 N·m (0.9 kg·m, 6.5 ft·lb) of maximum torque.
|Type||4-stroke, OHV, single cylinder|
|Displacement||163 cm2, (9.95 cu·in)|
|Max. horsepower||4.4 PS (3.2 kW; 4.3 HP) at 3,600 rpm|
|Max. torque||8.8 N·m (0.9 kg·m, 6.5 ft·lb)|
|Lubricating system||Splash system|
|Starting system||Recoil starter|
|Fuel tank capacity||2.6 L (0.69 US. gal. 0.57 Imp. gal.)|
|Fuel consumption||395 g/kWh|
|PTO shaft rotation||Counterclockwise (from PTO shaft side)|
Dimensions and Weight
|Zongshen ZS GB160|
|Length, mm (in)||–|
|Width, mm (in)||–|
|Height, mm (in)||–|
|Dry weight, kg (lb)||15.0 (33.1)|
|Maximum speed:||3,900 rpm|
|Idle speed:||1,800±200 rpm|
|Intake valve||0.10-0.15 mm (0.0039-0.0059 in)|
|Exhaust valve||0.15-0.20 mm (0.0059-0.0079 in)|
|Oil type||4-stroke engines oil|
|Oil capacity||0.6 l (0.6 US gal. 0.5 Imp. gal.)|
|Ignition timing||23°±2° B.T.D.C. (Fixed)|
|Spark plug gap||0.6-0.8 mm (0.024-0.031 in)|
|Spark plug torque||20 N·m; 2.0 kg·m; 14.7 ft·lb|
