Zongshen GB200S

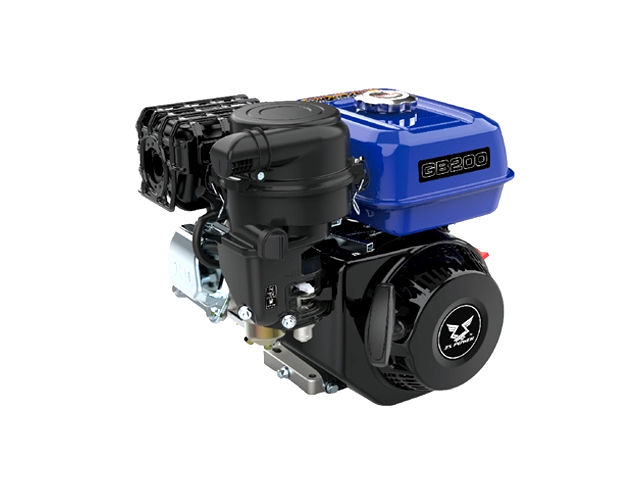

Zongshen GB200SThe Zongshen GB200S is a 196 cc, (11.96 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from GB-series manufactured by Zongshen Power Co. for general-purpose applications.

The Zongshen GB200S engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and recoil or electric starter. Cylinder bore and piston stroke are 68.0 mm (2.68 in) and 54.0 mm (2.13 in), respectively.

The Zongshen ZS GB200S produced 5.7 PS (4.2 kW; 5.6 HP) at 3,600 rpm of maximum output power and 11.5 N·m (1.2 kg·m, 8.5 ft·lb) of maximum torque.

General information

Engine Specifications
ModelGB200S
Type4-stroke, OHV, single cylinder
Displacement196 cm2, (11.96 cu·in)
Max. horsepower5.7 PS (4.2 kW; 5.6 HP) at 3,600 rpm
Max. torque11.5 N·m (1.2 kg·m, 8.5 ft·lb)
Fuel systemCarburetor
Cooling systemForced-air
Ignition systemTransistorized
Lubricating systemSplash system
Starting systemRecoil or electric starter
Fuel tank capacity4.2 L (1.11 US. gal. 0.92 Imp. gal.)
Fuel consumption395 g/kWh
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

Zongshen ZS GB200S
Length, mm (in)265 (14.4)
Width, mm (in)320 (12.6)
Height, mm (in)345 (13.6)
Dry weight, kg (lb)15.5 kg (34.2 lbs)

Maintenance data

Engine
Maximum speed:3,900 rpm
Idle speed:1,800±200 rpm
Oil system
Oil type4-stroke engines oil
Recommended oil10W-30
Oil capacity0.6 l (0.6 US gal. 0.5 Imp. gal.)
Ignition system
Spark plug gap0.6-0.8 mm (0.024-0.031 in)
Spark plug torque20 N·m; 2.0 kg·m; 14.7 ft·lb
