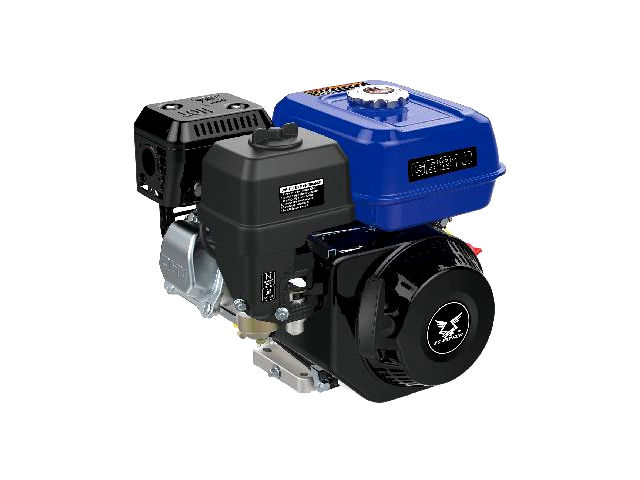

Zongshen GB210

The Zongshen GB210 is a 208 cc, (12.69 cu·in) single-cylinder air-cooled 4-stroke internal combustion small gasoline engine, from GB-series manufactured by Zongshen Power Co. for general-purpose applications.

The Zongshen GB210 engine has an overhead valve (OHV) design, carburetor fuel system, transistorized ignition system, and a recoil starter. Bore and stroke are 70.0 mm (2.76 in) and 54.0 mm (2.13 in), respectively.

The Zongshen ZS GB210 produced 5.8 PS (4.3 kW; 5.8 HP) at 3,600 rpm of maximum output power and 11.5 N·m (1.2 kg·m, 8.5 ft·lb) of maximum torque.

General information

Engine Specifications
ModelGB210
Type4-stroke, OHV, single cylinder
Displacement208 cm2, (12.69 cu·in)
Max. horsepower5.8 PS (4.3 kW; 5.8 HP) at 3,600 rpm
Max. torque11.5 N·m (1.2 kg·m, 8.5 ft·lb)
Fuel systemCarburetor
Cooling systemForced-air
Ignition systemTransistorized
Lubricating systemSplash system
Starting systemRecoil starter
Fuel tank capacity2.6 L (0.69 US. gal. 0.57 Imp. gal.)
Fuel consumption395 g/kWh
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

Zongshen ZS GB210
Length, mm (in)
Width, mm (in)
Height, mm (in)
Dry weight, kg (lb)15.5 kg (34.2 lbs)

Maintenance data

Engine
Maximum speed:3,900 rpm
Idle speed:1,800±200 rpm
Valve clearance
Intake valve0.10-0.15 mm (0.004-0.006 in)
Exhaust valve0.15-0.20 mm (0.006-0.008 in)
Oil system
Oil type4-stroke engines oil
Recommended oil10W-30
Oil capacity0.6 l (0.6 US gal. 0.5 Imp. gal.)
Ignition system
Spark plug gap0.6-0.8 mm (0.024-0.031 in)
Spark plug torque20 N·m; 2.0 kg·m; 14.7 ft·lb
