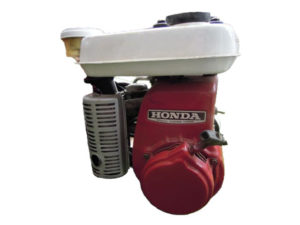

The Honda G50 is a 187 cc 11.4 cu-in) single-cylinder air-coolled 4-stroke internal combustion small gasoline engine manufactured by Honda Motor Company or general-purpose applications.
The Honda G50 engine has a slide valve (L-head) design and camshaft driven by a single row chain driven by the crankshaft. It has a recoil starter, horizontal carburetor with butterfly valve and high voltage ignition.
Cylinder bore and piston stroke are 69.0 mm (2.7 in) and 50.0 mm (2.0 in), respectively. Compression ratio rating is 6.5:1 for G50K1 and 6.9:1 for G50K2
The G50 produced 3.8 PS (2.8 kW) at 3600 rpm of continuous rated horsepower and 5.0 PS (3.67 kW) at 4000 rpm of maximum horsepower. The Honda G50 produced 9.0 Nm (0.85 kg·m) at 3600 rpm of torque.
General information
| Engine Specifications | |
| Model | G50 |
| Type | 4-stroke, side valve type (L-head), single cylinder |
| Displacement | 187 cm 3 (11.4 cu-in) |
| Max. horsepower | 5.0 PS (3.67 kW) at 4000 rpm |
| Max. torque | 9.0 Nm (0.92 kg·m) at 3600 rpm |
| Carburetor | Horizontal, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | High voltage ignition |
| Lubricating system | Splash system |
| Starting system | Recoil starter |
| Stoping system | Ground switch |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | G50 – 6.0 L (1.6 US gal. 1.3 Imp. gal.) G50K1 – 3.4 L (0.9 US gal. 0.7 Imp. gal.) G50K2 – 4.0 L (1.1 US gal. 0.9 Imp. gal.) |
| Fuel consumption | 300 g/HPh (0.67 lb/HPh) |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Cylinder Block and Head
| Cylinder block | ||
| Compression ratio: | G50K1 – 6.5:1 G50K2 – 6.9:1 | |
| Bore x Stroke | 69 x 50 mm (2.7 in x 2.0 in in) | |
| Sleeve internal diameter | 69.00 mm (2.71 in) | |
| Piston skirt outer diameter | 68.97-68.99 mm (2.5492-2.5558 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Ring side clearance | Top/second/oil | 0.02-0.06 mm (0.008-0.024 in) |
| Ring end gap | Top/second/oil | 0.2-0.4 mm (0.008-0.016 in) |
| Connecting rod small end ID | 18.01-18.03 mm (0.708-0.711 in) | |
| Cylinder Head | ||
| Warpage (limit) | 0.10 mm (0.004 in) | |
| Valve Arrangement: | Side valve type (L-head) | |
| Valves: | 2 | |
| Stem outer diameter (standard): | INTAKE | 6.970 mm (0.274 in) |
| EXHAUST | 6.925 mm (0.272 in) | |
| Guide internal diameter | INTAKE / EXHAUST | 7.000 mm (0.276 in) |
| Spring free length | 27.9 mm (1.1 in) | |
| Camshaft journal diameter: | 11.966-11.984 mm (0.4711-0.4718 in) | |
| Engine | |
| Cylinder compression | G50K1 – 7.0 kg/cm2 at 750 rpm G50K2 – 6.0 kg/cm2 at 1000 rpm |
| Adjust timing ignition | |
| Ignition timing | 20° B.T.D.C. (Fixed) |
| Adjust valve clearance | |
| Intake valve | 0.07 mm (0.003 in) |
| Exhaust valve | 0.07 mm (0.003 in) |
| Oil system | |
| Oil type | Honda 4-stroke |
| Recommended oil | 10W-40 |
| Oil capacity | 0.6 l (0.6 US gal. 0.5 Imp. gal.) |
| Ignition system | |
| Spark plug | G50 – NGK: B-6H G50K1 – NGK: B-6HS G50K2 – NGK: B-6HS, BR-6HS |
| Spark plug gap | 0.6-0.7 mm (0.024-0.028 in) |
Tightening torque specs
| Tightening torque specs | |
| Cylinder head (8×1.25 mm) | 20-24 Nm; 2.0-2.4 kg·m; 14.5-17.4 ft·lb |
| Flywheel (14×1.25 mm) | 80-90 Nm; 8.0-9.0 kg·m; 57.9-65.1 ft·lb |
| Fuel tank (6×1.0 mm) | 10-12 Nm; 1.0-1.2 kg·m; 7.2-8.7 ft·lb |
| Fuel tank (8×1.25 mm) | 24-28 Nm; 2.4-2.8 kg·m; 17.4-20.3 ft·lb |
| Muffler (6×1.0 mm) | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Starter pulley (6×1.0 mm) | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Fuel cock (6×1.0 mm) | 10-12 Nm; 1.0-1.2 kg·m; 7.2-8.7 ft·lb |
| PTO (8×1.25 mm) | 20-24 Nm; 2.0-2.4 kg·m; 14.5-17.4 ft·lb |
| Carburetor (6×1.0 mm) | 10-12 Nm; 1.0-1.2 kg·m; 7.2-8.7 ft·lb |
| Others | |
| 5×0.8 mm screw, bolt, nut | 3.5-6.5 Nm; 0.35-0.65 kg·m; 2.5-4.7 ft·lb |
| 6×1.0 mm bolt | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| 8×1.25 mm bolt | 20-28 Nm; 2.0-2.8 kg·m; 14.5-20.3 ft·lb |
| 10×1.25 mm bolt | 40-50 Nm; 4.0-5.0 kg·m; 28.9-36.2 ft·lb |
