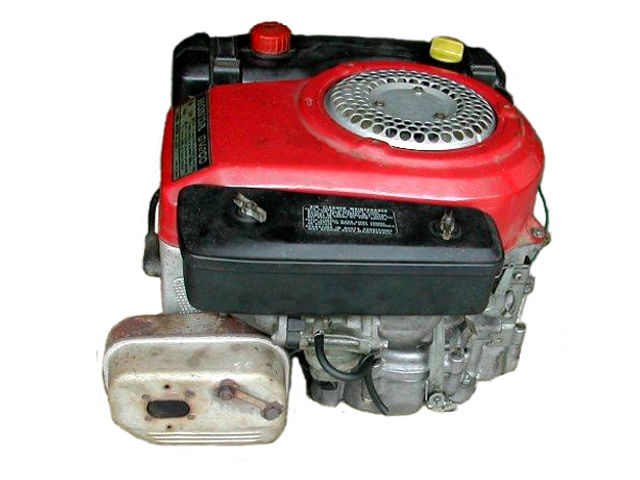

The Honda GV200 is a 197 cc (12.0 cu.in.) single-cylinder air-coolled 4-stroke internal combustion small gasoline engine with vertical shaft manufactured by Honda Motor Company.
The Honda GV200 engine has a slide valve (L-head) design and camshaft driven by a single row chain driven by the crankshaft. The engine has an electric or recoil starter, horizontal carburetor with butterfly valve and transistorized magneto or capacitor discharge ignition (CDI) ignition system.
The GV200 engine a compression ratio rating is 6.5:1, cylinder bore and piston stroke are 67.0 mm (2.64 in) and 56.0 mm (2.20 in), respectively.
The Honda GV200 produced 5.0 HP (3.7 kW) at 3600 rpm of maximum horsepower and 10.5 Nm (1.05 kg·m, 7.6 ft·lb) at 3,000 rpm of torque.
General information
| Engine Specifications | |
| Model | GV200 |
| Type | 4-stroke, side valve type (L-head), single cylinder |
| Displacement | 197 cm 3 (12.0 cu-in) |
| Horsepower | 5.0 HP (3.7 kW) at 3600 rpm |
| Torque | 10.5 Nm (1.05 kg·m, 7.6 ft·lb) at 3,000 rpm |
| Carburetor | Horizontal, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | Transistorized magneto or CDI |
| Lubricating system | Trochoid oil pump |
| Starting system | Recoil starter |
| Stoping system | Ground of primary circuit |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Fuel tank capacity | 1.8 L (3.8 US gal, 3.2 Imp gal.) |
| Fuel consumption | 300 g/HPh |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
Cylinder Block and Head
The piston has two compression rings and one oil ring. Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
| Cylinder block | ||
| Compression ratio: | 6.5:1 | |
| Bore x Stroke | 67 X 56 mm (2.6 x 2.2 in) | |
| Sleeve internal diameter | 67.00 mm (2.638 in) | |
| Piston skirt outer diameter | 66.98 mm (2.637 in) | |
| Number of piston rings (compression / oil): | 2 / 1 | |
| Ring side clearance | Top | 0.01-0.05 mm (0.0004-0.0020 in) |
| Second/oil | 0.01-0.05 mm (0.0004-0.0020 in) | |
| Ring end gap | Top/second | 0.20-0.40 mm (0.008-0.016 in) |
| Oil | 0.20-0.40 mm (0.008-0.016 in) | |
| Connecting rod small end ID | 15.005-15.020 mm (0.5907-0.5913 in) | |
| Crankshaft crank pin outer diameter | 25.967-25.980 mm (1.0223-1.0228 in) | |
| Cylinder Head | ||
| Warpage (limit) | 0.10 mm (0.004 in) | |
| Valve Arrangement: | Side valve (L-head) | |
| Valves: | 2 | |
| Stem outer diameter (standard): | INTAKE | 6.955-6.970 mm (0.2738-0.2744 in) |
| EXHAUST | 6.910-6.925 mm (0.2720-0.2726 in) | |
| Cam height: | INTAKE | 33.4-33.6 mm (1.31-1.32 in) |
| EXHAUST | 33.7-33.9 mm (1.33-1.34 in) | |
| Valve spring free length: | 36.7 mm (1.45 in) | |
MAINTENANCE DATA
| Engine | |
| Idle speed | 1700 ± 150 rpm |
| Cylinder compression | 5.0 kg/cm2 at 700 rpm |
| Valve clearance | |
| Intake valve | 0.08-0.16 mm (0.003-0.006 in) |
| Exhaust valve | 0.16-0.24 mm (0.006-0.009 in) |
| Carburetor | |
| Main jet | #75 |
| Float height | 6.7-9.7 mm (0.26-0.38 in) |
| Pilot screw opening | 1-3/4 turns |
| Oil system | |
| Oil type | Honda 4-stroke or an equivalent (SG.SF/CC.CD) |
| Recommended oil | SAE 10W-30 |
| Oil capacity | 0.7 L (1.48 US pt, 1.23 lmp pt) |
| Ignition system | |
| Ignition timing | 20 ° B.T.D.C (Fixed) |
| Spark plug | Flywheel magneto type: NGK: BM6A, BMR6A CDI: NGK: BPM6A, BPMR6A |
| Spark plug gap | Flywheel magneto type: 0.6-0.7 mm (0.024-0.028 in) CDI: 0.9-1.0 mm (0.035-0.039 in) |
Tightening torque specs
| Tightening torque specs | |
| Cylinder head (8 mm bolt) | 24-26 Nm; 2.4-2.6 kg·m; 17-19 ft·lb |
| Oil drain (12 mm bolt) | 20 Nm; 2.0 kg·m; 14 ft·lb |
| Connecting rod lower cap (7 mm bolt) | 11-13 Nm; 1.1-1.3 kg·m; 8.0-9.4 ft·lb |
| Flywheel (14 mm nut) | 70-80 Nm; 7.8-8.0 kg·m; 51-58 ft·lb |
| Muffler | 13-17 Nm; 1.3-1.7 kg·m; 9.4-12 ft·lb |
| Tappet cover | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Breather cover | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Oil pump cover | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Oil pan | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Ignition coil (6 mm) | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| CDI unit stay | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Fan cover | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Intake manifold | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Air cleaner case | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Fuel tank stay | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| Others | |
| 5 mm bolts, nuts | 4-7 Nm; 0.4-0.7 kg·m; 2.9-5.1 ft·lb |
| 6 mm bolts, nuts | 8-12 Nm; 0.8-1.2 kg·m; 5.8-8.7 ft·lb |
| 8 mm bolts, nuts | 20-28 Nm; 2.0-2.8 kg·m; 14.5-20.3 ft·lb |
| 10 mm bolts, nuts | 35-40 Nm; 3.5-4.0 kg·m; 25-29 ft·lb |
