Jinlang 1P52QMI-7

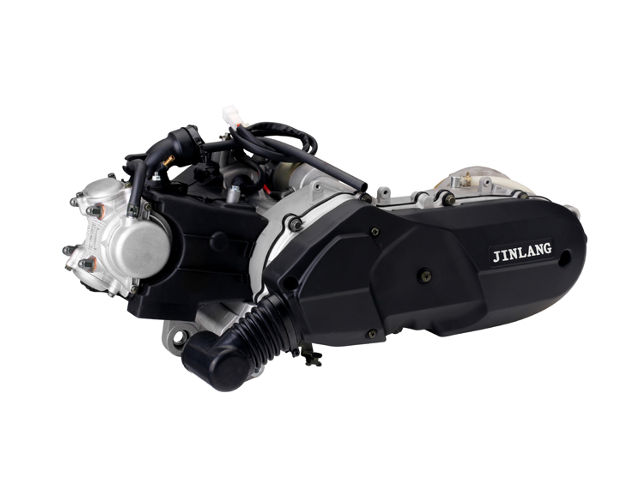

Jinlang 1P52QMI-7The Jinlang 1P52QMI-7 is a 0.12 l (124.9 cc, 7.62 cu-in) single cylinder, 4-stroke, forced air-cooled internal combustion motorcycle engine, manufactured by Zhejiang Jinlang Power Co. LTD.

The 1P52QMI-7 engine cylinder bore and stroke are 52.4 mm (2.06 in) and 57.9 mm (2.28 in), respectively. Compression ratio rating is 10:1. The Jinlang 1P52QMI-7 produced 9.2 PS (6.8 kW; 9.1 HP) at 8,500 rpm of maximum horsepower and 8.5 Nm (0.9 kg·m; 6.3 ft·lb) at 6,500 rpm of torque. Minimal idling speed 1,700 rpm.

General information

Engine Specifications
Model Jinlang 1P52QMI-7
Type Four-stroke, single cylinder
Displacement 124.9 ml (7.62 cu-in)
Max. horsepower 9.2 PS (6.8 KW; 9.1 HP) at 8,500 rpm
Max. torque (crank PTO) 8.5 Nm (0.9 kg·m; 6.3 ft·lb) at 6,500 rpm
Cooling system Forced-air
Ignition system Capacitance discharge ignition (CDI)
Lubricating system Splash
Starting system Electric / kick
Fuel used Unleaded gasoline (octane number 86 or higher)

Dimensions and Weight

JL1P52QMI-7
Length, mm (in) 785 (30.9)
Width, mm (in) 440 (17.3)
Height, mm (in) 310 (12.2)
Dry weight, kg (lb) 29.0 (63.9)
