Kubota Z750A

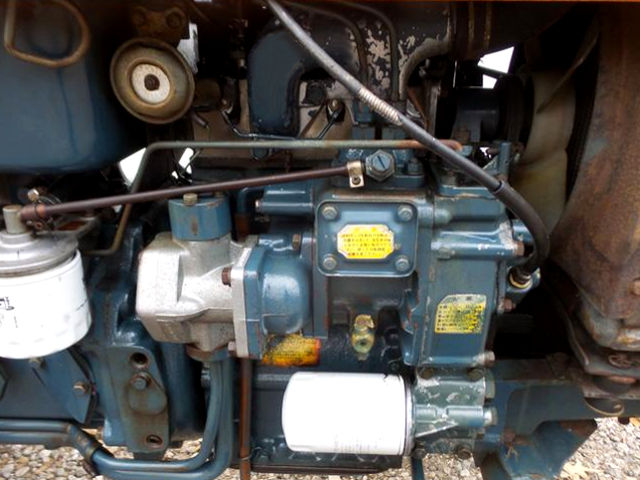

Kubota Z750The Kubota Z750A is a 0.75 L (743 cc, 45.34 cu·in) straight-two, water-cooled naturally aspirated vertical diesel engine manufactured by Kubota for general-purpose applications.

A 76.0 mm (2.99 in) cylinder bore and 82.0 mm (3.23 in) piston stroke give the Kubota Z750A engine a total of 743 cc of displacement. The compression ratio rating is 21.0:1.

The Z750A diesel engine produced 17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm of output power.

The breakdown of the engine code is as follows:

  • Z – 2-cylinders
  • 750 – Approximate displacement 750 cc

General information

Engine Specifications
Engine codeZ750A
LayoutStraight-2, vertical diesel engine
Fuel typeDiesel fuel No.2-D
Displacement0.75 L, 743 cm3 (45.34 cu in)
Max. Horsepower17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm
Torque output
Injection typeIndirect injection
Cooling systemLiquid-cooled
Fuel systemFuel injection pump
Fuel nozzle
Starting systemElectric starting with 12V starter
Starting support device
GovernorCentrifugal ball mechanical governor
Power adderNone
Firing order1-2
Dimensions (L x W x H):393 x 435 x 540 mm (15.5 x 17.1 x 21.3 in)
Weight71.0 kg (156.5 lbs)

Cylinder block

Cylinder block
Compression ratio:21.0:1
Cylinder bore:76.0 mm (2.99 in)
Piston stroke:82.0 mm (3.23 in)
Number of piston rings (compression / oil):2 / 1
Cylinder inner diameter:75.946-76.100 mm (2.990-2.996 in)
Piston skirt diameter75.900-75.920 mm (2.988-2.990 in)
Piston ring side clearance:Second0.065-0.090 mm (0.0026-0.0035 in)
Oil0.020-0.060 mm (0.0008-0.0024 in)
Piston ring end gap:Top0.300-0.450 mm (0.0118-0.0177 in)
Second0.300-0.450 mm (0.0118-0.0177 in)
Oil0.250-0.400 mm (0.0098-0.0157 in)
Piston pin outer diameter23.100 mm (0.9094 in)
Crankshaft main journal diameter:51.990-52.010 mm (2.0468-2.0476 in)
Crankpin diameter:43.880-43.900 mm (1.7276-1.7283 in)

Cylinder head

Cylinder head
Valve Arrangement:OHV, gear drive
Valves:4 (2 valves per cylinder)
Valve timing:INTAKE
Valve seat width:INTAKE1.500 mm (0.060 in)
EXHAUST1.500 mm (0.060 in)
Valve stem diameter:INTAKE7.950-7.975 mm (0.313-0.314 in)
EXHAUST7.950-7.975 mm (0.313-0.314 in)
Valve spring free length:INTAKE42.0 mm (1.6535 in)
EXHAUST42.0 mm (1.6535 in)
Cam height:INTAKE36.870 mm (1.4516 in)
EXHAUST36.870 mm (1.4516 in)
Camshaft journal diameter:39.935-39.950 mm (1.5722-1.5728 in)

Tightening torque

Tightening torque specs
Cylinder head screw:75.0-82.0 Nm (7.65-8.40 kgf·m, 55.3-60.5 lb·ft)
Connecting rod screw:37.0-41.0 Nm (3.8-4.2 kgf·m; 27.3-30.3 lb·ft)
Flywheel screw:54.0-58.0 Nm (5.5-5.9 kgf·m; 39.9-42.8 lb·ft)
Idle gear shaft screws:32.4-37.3 Nm (3.3-3.8 kgf·m; 23.9-27.5 lb·ft)
Bearing case cover mounting screw:49.0-68.4 Nm (5.0-7.0 kgf·m; 36.2-50.5 lb·ft)

Maintenance data

Valve clearance
Intake valve0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Recommended engine oilDS or DM
SAE viscosity numberSAE 80
Engine oil capacity3.5 L (3.7 US. qt, 3.08 Imp. qt.)
Fuel system
Injection timing:25° B.T.D.C.
Fuel injection pressure13.73-14.71 MPa (140-150 kgf/cm2, 1991-2133 psi)
Cooling system
Coolant capacity:5.3 liters (5.6 US.qts, 4.7 Imp. qts)
Electrical system
Battery:12V, 65Ah or equivalent
