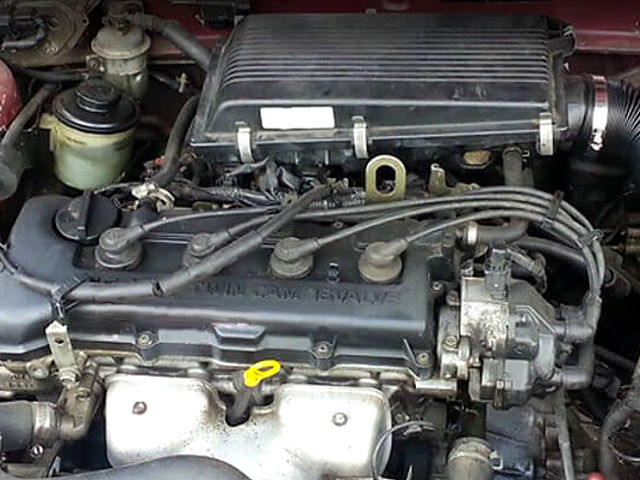

The Nissan GA15DE is a 1.5 liter (1,498 cc, 91.41 cu-in) straight-four, four-stroke cycle, liquid-cooled gasoline engine from the Nissan GA-family.
The Nissan GA15DE has a cast-iron block and aluminum alloy cylinder head with double overhead camshaft, and multi-point fuel injection system.
Cylinder bore and the piston stroke is 73.6 mm (2.90 in) and 88.0 mm (3.46 in), respectively. The compression ratio is 9.9:1. It produces 106.0 PS (78.0 KW; 104.0 HP) at 6,000 rpm and 135.0 Nm (13.8 kg·m; 99.6 lbf·ft) at 4,000 rpm.
It was used in the Nissan Sunny B14, Nissan Pulsar N15 and Nissan Presea R11 (Japan Domestic Market, JDM), Nissan Rasheen, Nissan Wingroad / AD Y10.
The breakdown of the engine code is as follows:
- GA – Engine Family
- 15 – 1.5 Liter Displacement
- D – DOHC (Dual Overhead Camshafts)
- E – Multi Point Fuel Injection
General information
Engine Specifications | |
Engine code | GA15DE |
Layout | Four stroke, Inline-4 (Straight-4) |
Fuel type | Gasoline |
Production | – |
Displacement | 1.5L, 1,498 cc (91.41 cu-in) |
Power output | 105 HP (106 PS, 78 kW) at 6,000 rpm |
Torque output | 135 N·m (100 lb·ft) at 4000 rpm |
Cooling system | Liquid-cooling |
Fuel system | Multi Point Fuel Injection |
Power adder | None |
Firing order | 1-3-4-2 |
Dimensions (L x H x W): | – |
Weight | 330 lbs (150 kg) |
Cylinder block
The GA15DE has a cast-iron cylinder block, bore is 73.6 mm (2.898 in) and stroke is 88.0 mm (3.465 in). The pistons are each fitted with two compression rings and a single oil ring. For some markets, there was a modification with a single compression ring. The crankshaft for GA15DE engine supported by five main bearings. The crankshaft is the same as on the GA16DE engine, but the GA14DE engine has differences in the crankshaft center distance.
Cylinder block | ||
Cylinder block alloy | Cast iron | |
Compression ratio: | 9.9:1 | |
Cylinder bore: | 73.6 mm (2.898 in) | |
Piston stroke: | 88.0 mm (3.465 in) | |
Number of piston rings (compression / oil): | 2 / 1 (1 / 1 – for some markets) | |
Number of main bearings: | 5 | |
Block Height: | 213.95-214.05 mm (8.4232-8.4271 in) | |
Cylinder inner diameter (standard): | 73.600-73.610 mm (2.8976-2.8980 in) | |
Piston skirt diameter (standard): | 73.575-73.585 mm (2.8966-2.8970 in) | |
Piston pin outer diameter: | 18.989-19.001 mm (0.7476-0.7481 in) | |
Piston ring side clearance (Top): | 0.040-0.080 mm (0.0016-0.0031 in) | |
Piston ring side clearance (Second): | 0.030-0.070 mm (0.0012-0.0028 in) | |
Piston ring end gap (Top): | 0.200-0.350 mm (0.0079-0.0138 in) | |
Piston ring end gap (Second): | 0.370-0.520 mm (0.0146-0.0205 in) | |
Piston ring end gap (Oil): | 0.200-0.600 mm (0.0079-0.0236 in) | |
Connecting rod center distance: | 140.45-140.55 mm (5.5295-5.5335 in) | |
Connectin rod small end inner diameter: | 19.000-19.012 mm (0.7480-0.7485 in) | |
Connectin rod big end inner diameter: | 43.000-43.013 mm (1.6929-1.6934 in) | |
Crankshaft journal diameter: | 49.956-49.964 mm (1.9668-1.9671 in) | |
Crankpin diameter: | 39.968-39.974 mm (1.5735-1.5738 in) | |
Crankshaft center distance: | 43.95-44.05 mm (1.7303-1.7342 in) |
Cylinder head
The engine has an aluminum cylinder head with two chain-driven overhead camshafts and sixteen valves (four per cylinder). The GA15DE has two timing chains. Intake valves are 29 mm in diameter, intake duration is 222 °, and the exhaust valves are 24 mm, exhaust duration is 222 °. The GA15DE does not have hydraulic lifters, so special shims are used to adjust the valve clearance.
Cylinder head | ||
Cylinder head alloy | Aluminum | |
Cylinder head height: | 118 mm (4.6456 in) | |
Valve Arrangement: | DOHC, chain drive | |
Valves: | 16 (4 valves per cylinder) | |
Valve timing (INTAKE): | 222° | |
Valve timing (EXHAUST): | 222° | |
Valve head diameter (INTAKE): | 28.900-29.200 mm (1.138-1.150 in) | |
Valve head diameter (EXHAUST): | 23.900-24.200 mm (0.941-0.953 in) | |
Valve length (INTAKE): | 92.000-92.500 mm (3.6220-3.6417 in) | |
Valve length (EXHAUST): | 92.370-92.870 mm (3.6366-3.6563 in) | |
Valve stem outer diameter (INTAKE): | 5.465-5.480 mm (0.2152-0.2157 in) | |
Valve stem outer diameter (EXHAUST): | 5.445-5.460 mm (0.2144-0.2150 in) | |
Camshaft cam height (INTAKE): | 39.880-40.070 mm (1.5701-1.5776 in) | |
Camshaft cam height (EXHAUST): | 40.056-40.246 mm (1.5770-1.5845 in) | |
Outer camshaft journal diameter: |
№1: 27.935-27.955 mm (1.0998-1.1006 in) №2-5: 23.935-23.955 mm (0.9423 – 0.9431 in) |
Head tightening procedure and torque specs:
- Step 1: 29.4 Nm; 3.0 kg·m; 22 ft·lb
- Step 2: 58.8 Nm; 6.0 kg·m; 43 ft·lb
- Step 3: Loosen all bolts completely
- Step 4: 29.4 Nm; 3.0 kg·m; 22 ft·lb
- Step 5: Turn main bolts 50-55° or 58.8 Nm; 6.0 kg·m; 43 ft·lb
Problems and malfunctions
The Nissan GA15DE is reliable and durable. The engine has two timing chains, their service life is about 150,000 miles of mileage (200,000-250,000 km). The valve clearance needs to be adjusted every 30,000 miles of mileage (40,000-50,000 km). The GA15DE motor life expectancy is 200,000 miles of mileage (300,000 km) or more.
Maintenance data
Valve clearance (HOT) | |
Intake valve | 0.21-0.49 mm (0.008-0.019 in) |
Exhaust valve | 0.30-0.58 mm (0.012-0.023 in) |
Compression pressure | |
Standard | 14.0 kg/cm2 (13.7 bar, 199 psi) / 350 rpm |
Minimun | 12.0 kg/cm2 (11.8 bar, 171 psi) / 350 rpm |
Compression differential limit between cylinders | 1.00 kg/cm2 (0.98 bar, 14 psi) / 350 rpm |
Oil system | |
Oil consumption , L/1000 km (qt. per miles) | up to 0.5 (1 qt. per 1200 miles) |
Recommended engine oil |
5W-30 5W-40 10W-30 10W-40 |
Oil type API | SE, SF, SG or SH |
Engine oil capacity (Refill capacity) |
With filter change: 3.2 liters (3.4 US.qts, 2.8 Imp. qts) Without filter change: 2.8 liters (3.0 US.qts, 2.5 Imp. qts) |
Oil change interval, km (miles) | 5,000-10,000 (3,000-6,000) |
Oil Pressure |
Idle speed: More than 59 kPa (0.59 bar, 0.6 kg/cm2, 9 psi) 2,000 rpm: More than 245 kPa (2.45 bar, 2.5 kg/cm2, 36 psi) 6,000 rpm: More than 422 kPa (4.22 bar, 4.3 kg/cm2, 61 psi) |
Ignition system | |
Spark plug |
Standard: BKR5E (NGK) Cold: BKR6E, BKR7E (NGK) |
Spark plug gap | 0.8-0.9 mm (0.031-0.035 in) |
Spark plug torque | 19.6-29.4 Nm (2.00-3.00 kg⋅m, 14.3-21.7 lb·ft) |
Valve clearance adjustment data
Calculate the thickness of new adjusting shim so valve clearance comes within specified values.
R = Thickness of removed shim
N = Thickness of new shim
M = Measured valve clearance
Intake:
N = R + [M – 0.37 mm (0.0146 in)]
Exhaust:
N = R + [M – 0.40 mm (0.0157 in)]
Shims are available in 50 sizes from 2.00 mm (0.0787 in) to 2.98 mm (0.1173 in), in steps of 0.02 mm (0.0008 in).
Example (intake valve):
R = 2.10 mm
M = 0.52 mm
N = 2.10 + (0.52 – 0.37) = 2.25 mm, so we need a shim with code 225 or TS225.
For adjusting | For checking | ||
Hot | Cold* | Hot | |
Intake | 0.32 – 0.40 (0.013 – 0.016) | 0.25 – 0.33 (0.010 – 0.013) | 0.21 – 0.49 (0.008 – 0.019) |
Exhaust | 0.37 – 0.45 (0.015 – 0.018) | 0.32 – 0.40 (0.013 – 0.016) | 0.30 – 0.58 (0.012 – 0.023) |
*: At a temperature of approximately 20°C (68°F)
Whenever valve clearances are adjusted to cold specifications, check that the clearances satisfy hot specifications and adjust again if necessary.
Vehicle applications
Model | Years Produced |
Nissan Sunny B14 | 1994-1998 |
Nissan Pulsar N15 | 1995-2000 |
Nissan Lucino B14, N15 | 1994-2000 |
Nissan Racine B14 | 1994-2000 |
Nissan Presea R11 (JDM) | 1995-2000 |
Nissan Rasheen | 1994-2000 |
Nissan Wingroad/Nissan AD Y10 | 1997-1999 |
