Rato 3C11

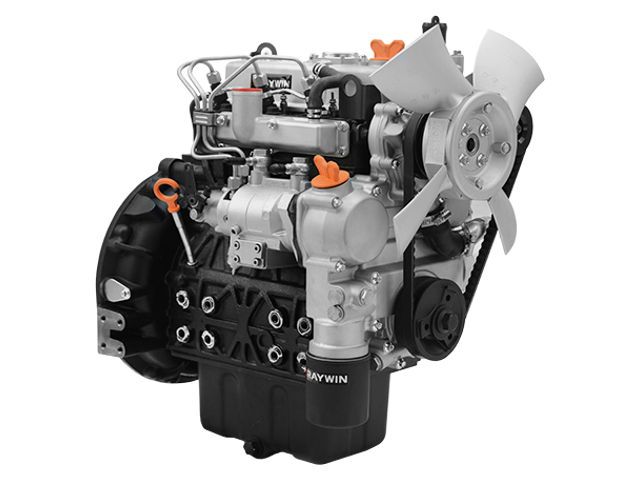

Rato 3C11 diesel engineThe Rato 3C11 is a 1.07 L (65.3 cu-in) straight three, water-cooled naturally aspirated diesel engine manufactured by Chongqing Rato Technology Co., Ltd.

The Rato 3C11 compression ratio is 24:1. Cylinder bore and piston stroke are 76.0 mm (2.99 in) and 78.4 mm (3.07 in), respectively. A 3C11 is suitable for markets up to emission level Chinese Non-road Stage III/EU Stage IIIA.

The 3C11 produced from 19 PS (14.4 kW) at 2,000 rpm to 24.8 PS (18.5 kW) at 3600 of horsepower and 72 N⋅m (7.3 kg⋅m, 53.1 lb⋅ft) at 1,600 rpm of torque.

General information

Engine Specifications
Engine code Rato 3C11
Layout Straight-3, vertical
Fuel type Diesel
Production
Displacement 1.07 L, (65.3 cu-in)
Combustion System IDI
Power adder none
Horsepower 18.5 kW at 3600 rpm
16.3 kW at 2600 rpm
15.8 kW at 2400 rpm
14.6 kW at 2200 rpm
14.4 kW at 2000 rpm
Torque output 72 N⋅m (7.3 kg⋅m, 53.1 lb⋅ft) at 1,600 rpm
Dimensions (L x H x W): 498 x 396 x 609 mm
Weight 89.0 kg
