Rato 4D24T

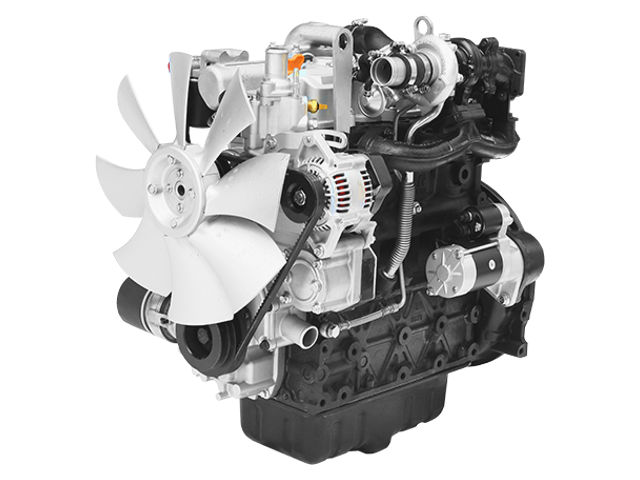

Rato 4D24T turboieselThe Rato 4D24T is a 2.45 L (149.5 cu-in) vertical, straight four, water-cooled turbocharged diesel engine manufactured by Chongqing Rato Technology Co., Ltd.

The Rato 4D24T compression ratio is 17.8:1. Cylinder bore and piston stroke are 87.0 mm (3.42 in) and 103.0 mm (4.05 in), respectively. A 4D24T turbodiesel engine is suitable for markets up to emission level Chinese Non-road Stage III/EU Stage IIIA.

The 4D24T produced from 52 PS (39 kW) at 2,000 rpm to 64 PS (48 kW) at 2,700 of horsepower and 210 Nm (21.4 kg⋅m, 154.9 lb⋅ft) at 1,600 rpm of torque.

General information

Engine Specifications
Engine code Rato 4D24T
Layout Straight-4, vertical
Fuel type Diesel
Production
Displacement 1.07 L, (65.3 cu-in)
Combustion System DI
Power adder Turbocharged
Horsepower 48.0 kW at 2700 rpm
44.5 kW at 2600 rpm
44.5 kW at 2400 rpm
42.0 kW at 2200 rpm
39.0 kW at 2000 rpm
Torque output 210 N⋅m (21.4 kg⋅m, 154.9 lb⋅ft) at 1,600 rpm
Dimensions (L x H x W): 698 x 508 x 718 mm
Weight 205.0 kg
