Rato RV140

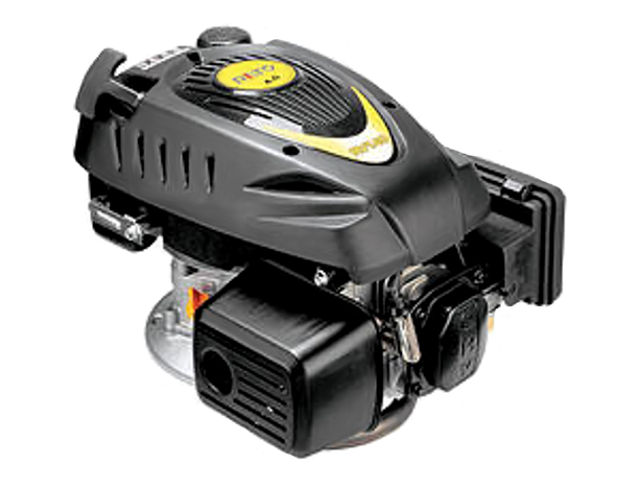

Rato RV140The Rato RV140 is a 140 cc (9.15 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with vertical shaft, manufactured by Chongqing RATO Holding (Group) CO., LTD for lawn mowers and tillers.

The Rato RV140 engine has a single-cylinder with a vertical shaft; an overhead valve (OHV) design; flat suction valve carburetor; dual element air filtration system; capacitance discharge type ignition system; centrifugal mechanical governor system and recoil starter.

The Rato RV140 motor has a 65.0 mm (2.56 in) cylinder bore and 42.0 mm (1.65 in) piston stroke with a compression ratio of 8.5:1. It produced 4.0 HP at 3,600 rpm of horsepower and 6.3 N·m (0.64 kg·m, 5.75 ft·lb) at 2,500 rpm of torque.

General information

Engine Specifications
Type4-stroke, OHV, single cylinder
Displacement140 cm 3 (8.54 cu-in)
Max. horsepower4.0 HP at 3,600 rpm
Max. torque (crank PTO)6.3 N·m (0.64 kg·m, 4.6 ft·lb) at 2,500 rpm
CarburetorFlat suction valve carburetor
Cooling systemForced-air
Ignition systemCapacitance Discharge Ignition (CDI)
Lubricating systemSplash
Starting systemRecoil starter
Stoping systemIgnition primary circuit ground
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.0 L
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Valve clearance (Cold)
Intake valve (COLD)0.15 mm (0.006 in)
Exhaust valve (COLD)0.20 mm (0.008 in)
Oil system
Oil type4-stroke or an equivalent (SJ)
Recommended oilSAE 10W-30, 15W-40
Oil capacity0.45 L
Ignition system
Spark plugNGK: BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists or spare parts catalogs. We are an information portal and provide the technical specifications of gasoline and diesel engines.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. We do not provide advice on technical issues related to the engines operation or repair. We do not recommend using provided information for engines repairing engines or spare parts ordering, use only official service manuals and spare-parts catalogs.


    • Valve clearance is:
      Intake: 0.15 mm (0.006 in)
      Exhaust: 0.20 mm (0.008 in)
      The intake is the upper valve and the exhaust lower

  1. Hello. I hope you can help me find two parts needed for a Rato RV 140 engine (OHV 550, 140cc engine). I’m seeking a throttle valve returning spring and a governor spring. Unfortunately, I don’t have part numbers for either. I hope someone can provide the part number of springs that are similar on other Rato engines or another brand like Husqvarna. Thanks so much for any advice you can provide.
