Subaru-Robin EA190V

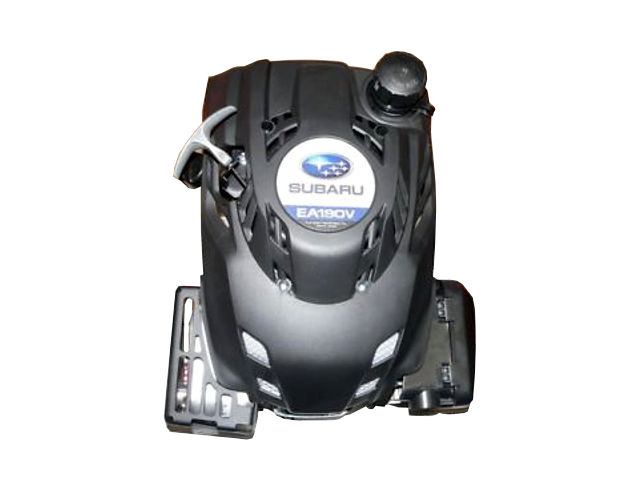

Subaru-Robin EA190VThe Subaru-Robin EA190V is a 189 cc (11.53 cu-in) single-cylinder air-cooled 4-stroke internal combustion general-purpose gasoline engine with vertical shaft manufactured by Industrial Products division of Subaru Corporation under the Subaru Industrial Power Products brand name (other names: Robin, Subaru-Robin and Wisconsin Robin).

The Subaru-Robin EA190V engine has an OHC (overhead camshaft) system with chain drive for optimized engine size and durability; hemispherical head with angled intake/exhaust valves; cast-iron cylinder line; float type carburetor; capacitance discharge type ignition system.

The cylinder bore is 68.0 mm (2.67 in) and the piston stroke is 52.0 mm (2.05 in), compression ratio rating is 9.0:1. The engine produced 5.5 HP (4.1 kW) at 3,600 rpm of maximum horsepower. Maximum torque is 11.2 N·m (1.1 kg·m, 8.3 ft·lb) at 2,500 rpm.

General information

Engine Specifications
ModelEA190V
Type4-stroke, OHC, single cylinder
Displacement189 cm 3 (11.53 cu-in)
Max. horsepower5.5 HP (4.1 kW) at 3,600 rpm
Max. torque (crank PTO)11.2 N·m (1.1 kg·m, 8.3 ft·lb) at 2,400 rpm
CarburetorFloat type
Cooling systemForced-air
Ignition systemСapacitance discharge type
Lubricating systemMechanical splashing
Starting systemRecoil
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity1.2 L
PTO shaft rotationCounterclockwise (from PTO shaft side)

Dimensions and Weight

EA190V
Length, mm (in)425 (16.7)
Width, mm (in)360 (14.2)
Height, mm (in)290 (11.4)
Dry weight, kg (lb)14.0 (30.9)

Cylinder Block and Head

Cylinder block
Compression ratio:9.0:1
Bore x Stroke68.0 mm X 52.0 mm (2.68 x 2.05 in)
Sleeve internal diameter68.000-68.020 mm (2.6772-2.6779 in)
Piston skirt outer diameter67.989-67.971 mm (2.6767-2.676 in)
Number of piston rings (compression / oil):2 / 1
Ring side clearanceTop/second0.04-0.08 mm (0.0016-0.0031 in)
Ring end gapTop0.13-0.28 mm (0.0051-0.011 in)
Second0.20-0.40 mm (0.0079-0.0157 in)
Ring widthTop2.50-2.70 mm (0.0984-0.1063 in)
Second2.60-2.80 mm (0.1024-0.1102 in)
Connecting rod small end ID16.005-16.021 mm (0.6301-0.6307 in)
Connecting rod big end ID30.000-30.018 mm (1.1811-1.1818 in)
Crankpin outer diameter29.969-29.981 mm (1.1799-1.1804 in)
Cylinder Head
Warpage (limit)0.10 mm (0.004 in)
Valve Arrangement:OHC
Valves:2
Stem outer diameter (standard):INTAKE5.440-5.455 mm (0.2142-0.2148 in)
EXHAUST5.430-5.445 mm (0.2142-0.2148 in)
Spring free length30.50 mm (1.2008 in)

Tightening torque specs

Tightening torque specs
Connecting rod bolt13 Nm; 1.3 kg·m; 9.0 ft·lb
Cylinder head cover bolt28 Nm; 2.86 kg·m; 20.66 ft·lb
Crankcase cover bolt10 Nm; 1.0 kg·m; 7 ft·lb
Flywheel nut64 Nm; 6.53 kg·m; 47.23 ft·lb
Value locking nut8 Nm; 0.82 kg·m; 5.9 ft·lb

Service Information

Valve clearance
Intake valve0.10-0.15 mm (0.0039-0.0059 in)
Exhaust valve0.15-0.20 mm (0.0059-0.0079 in)
Oil system
Oil type4-stroke or an equivalent (SE or SF)
Recommended oilSAE 10W-30, 10W-40
Oil capacity0.6 L (0.63 US. qt)
Ignition system
Spark plug NGK: BPR7HS
CHAMPION: RL87YC
TORCH: E6RTC
Spark plug gap0.6-0.7 mm (0.0236-0.0236 in)
Spark plug tightening torque20 N·m (2.0 kg·m, 14 ft·lb)
