Toyota 2VZ-FE

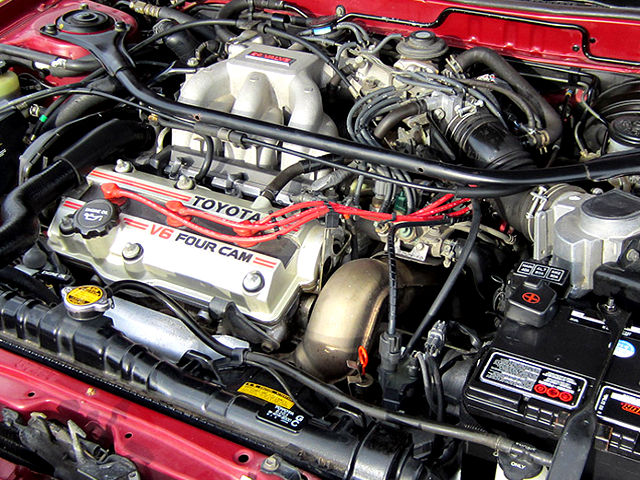

Toyota 2VZ-FEThe Toyota 3VZ-FE is a 2.5 L (2,507 cc, 153.0 cu·in) V6, four-stroke cycle water-cooled naturally aspirated internal combustion gasoline engine, manufactured by the Toyota Motor Corporation from 1988 to 1991.

The 2VZ-FE engine has 6 cylinders in a V arrangement at a bank angle of 60° The 2VZ-FE features a cast-iron cylinder block with a four-bearings crankshaft and two aluminum heads with two camshafts (DOHC) and four valves per cylinder (24 in total). The Toyota 2VZ-FE engine is equipped with EFI (Electronic Fuel Injection) system, Electronic Spark Advance (ESA) and Idle Speed Control (ISC) system.

An 87.5 mm (3.44 in) cylinder bore and 69.5 mm (2.74 in) piston stroke give the 2VZ-FE engine a total of 2,507 cc of displacement. The compression ratio rating is 9.0:1. The 2VZ-FE engine produced 162 PS (119 kW; 160 HP) at 5,800 rpm of maximum horsepower and 216 N·m (22 kg·m, 159.2 ft·lb) at 4,600 rpm of maximum torque.

The breakdown of the engine code is as follows:

  • 2 – 3rd generation engine
  • VZ – Engine family
  • F – Economy narrow-angle DOHC
  • E – Multi Point Fuel Injection

General information

Engine Specifications
Engine code 2VZ-FE
Layout Four stroke, V6
Fuel type Gasoline (petrol)
Production 1988-1991
Displacement 2.5 L, 2,507 cm2 (153.0 cu in)
Fuel system Electronic Fuel Injection (EFI)
Power adder None
Power output 162 PS (119 kW; 160 HP) at 5,800 rpm
Torque output 216 N·m (22 kg·m, 159.2 ft·lb) at 4,600 rpm
Firing order 1-2-3-4-5-6
Dimensions (L x W x H):

Cylinder block

The 2VZ–FE engine has 6 cylinders in a V arrangement at a bank angle of 60°. This engine’s firing order is 1–2–3–4–5–6. The crankshaft is supported by four bearings inside the crankcase. These bearings are made of copper and lead alloy. The crankshaft is integrated with 5 weights for balance. Oil holes are placed in the center of the crankshaft for supplying oil to the connecting rods, pistons and other components. Crankshaft main journal diameter is 64.000 mm (2.52 in) and crankpin diameter is 48.000 mm (1.89 in)

Pistons are made of high temperature–resistant aluminum alloy, and depression is built into the piston head to prevent interference with the valves. Piston pins are the semi-floating type, with the pins fastened to the connecting rods by pressure fitting, allowing the pistons and pins to float.

Each piston is equipped with two compressions and one oil control rings. The top compression ring is made of steel and the second compression ring is made of cast iron. The oil ring is made of a combination of steel and stainless steel. The outer diameter of each piston ring is slightly larger than the diameter of the piston and the flexibility of the rings allows them to a hub the cylinder walls when they are mounted on the piston.

The 2VZ-FE engine has an 87.5 mm (3.44 in) cylinder bore and 69.5 mm (2.74 in) piston stroke. Compression ratio rating is 9.0:1.

Cylinder block
Cylinder block alloy Cast-iron
Compression ratio: 9.0:1
Cylinder bore: 87.5 mm (3.44 in)
Piston stroke: 69.5 mm (2.74 in)
Number of piston rings (compression / oil): 2 / 1
Number of main bearings: 4
Cylinder inner diameter (standard): 87.500-87.510 mm (3.4449-3.4453 in)
Piston skirt diameter (standard): 87.445 mm (3.4427 in)
Piston ring side clearance: Top 0.010-0.080 mm (0.0004-0.0031 in)
Second 0.030-0.070 mm (0.0012-0.0028 in)
Piston ring end gap: Top 0.300-0.520 mm (0.0118-0.0205 in)
Second 0.350-0.600 mm (0.0138-0.0236 in)
Oil 0.200-0.550 mm (0.0079-0.0217 in)
Crankshaft main journal diameter: 63.985-64.000 mm (2.5191-2.5197 in)
Crankpin diameter: 47.987-48.000 mm (1.8892-1.8898 in)

Main bearing cap bolts tightening procedure and torque specs:

  • Step 1: 59 Nm; 6.0 kg·m; 43 ft·lb

After securing bearing cap bolts, make sure crankshaft turns smoothly by hand.

Connecting rod bearing bolts

  • Step 1: 49 Nm; 5.0 kg·m; 36 ft·lb

Crankshaft pulley bolt

  • 108 Nm; 11.0 kg·m; 80 ft·lb

Cylinder head

The cylinder heads are made of aluminum alloy, with a cross-flow type intake and exhaust layout and with pent–roof type combustion chambers. The spark plugs are located in the center of the combustion chambers. The 2VZ-FE engine has double overhead camshafts DOHC design with four valves per cylinder (two intake and two exhaust valves). The intake camshafts are driven by a single timing belt, and a gear on the intake camshaft engages with a gear on the exhaust camshaft to drive it. The camshaft journal is supported at five (intake) or four (exhaust) places between the valve lifters of each cylinder and on the front end of the cylinder head.

Adjustment of the valve clearance is done by means of an outer shim type system, in which valve adjusting shims are located above the valve lifters. This permits the replacement of the shims without removal of the camshafts.

Cylinder head
Block head alloy Aluminium
Valve Arrangement: DOHC, belt drive
Cylinder head height:
Valves: 24 (4 valves per cylinder)
Intake valve timing:
Exhaust valve timing:
Valve head diameter: INTAKE
Valve length: INTAKE 96.1 mm (3.7835 in)
EXHAUST 96.2 mm (3.7874 in)
Valve stem diameter: INTAKE 5.970-5.985 mm (0.235-0.2356 in)
EXHAUST 5.965-5.980 mm (0.2348-0.2354 in)
Valve spring free length: INTAKE 42.6 mm (1.6772 in)
EXHAUST 42.6 mm (1.6772 in)
Camshaft journal diameter: 26.949-26.965 mm (1.061-1.0616 in)

Head tightening procedure and torque specs:

  • Step 1: 49 Nm; 5.0 kg·m; 36 ft·lb
  • Step 2: Turn all bolts 90°

Maintenance data

Valve clearance
Intake valve 0.13-0.23 mm (0.0051-0.0091 in)
Exhaust valve 0.27-0.37 mm (0.0106-0.0146 in)
Compression pressure
Standard 12.5 kg/m2 (181 psi) / 300 rpm
Minimun 10.0 kg/m2 (145 psi) / 300 rpm
Compression differential limit between cylinders 1.0 kg/m2 (15 psi) / 300 rpm
Oil system
Oil consumption , L/1000 km up to 1.0
Recommended engine oil SAE 5W-30, 10W-30
Oil type API SG “Energy–Conserving”
Engine oil capacity (Refill capacity) 3.9 L (4.12 US. qt, 3.43 Imp. qt.)
Oil change interval, km (miles) 10,000 (6,000)
Oil Pressure Idle speed: More than 29 kPa (0.3 kg/cm2, 4.3 psi)
3,000 rpm: 249-539 kPa (3.0-5.5 kg/cm2, 43-78 psi)
Ignition system
Spark plug NGK: BCPR6E-11 DENSO: PQ20R
Spark plug gap 1.1 mm (0.0433 in)
Spark plug tightening torque 18 Nm (1.8 kg⋅m, 13 ft⋅lb)

Valve clearance adjustment data

Calculate the thickness of the new adjusting valve shim so valve clearance comes within specified values.

R = Thickness of removed valve shim
N = Thickness of new valve shim
M = Measured valve clearance

N = R + [M – 0.20 mm (0.008 in)]
N = R + [M – 0.30 mm (0.012 in)]

Valve shims are available in 17 sizes to range from 2.50 mm (0.0984 in) to 3.30 mm (0.1299 in), in steps of 0.05 mm (0.0020 in).

Example (exhaust valve):
R = 2.70 mm
M = 0.52 mm
N = 2.70 + (0.45 – 0.30) = 2.85 mm.

Vehicle applications

Model Years Produced
Lexus ES 250 1989–1991
Toyota Camry 1988–1991
