Yamaha MX825V

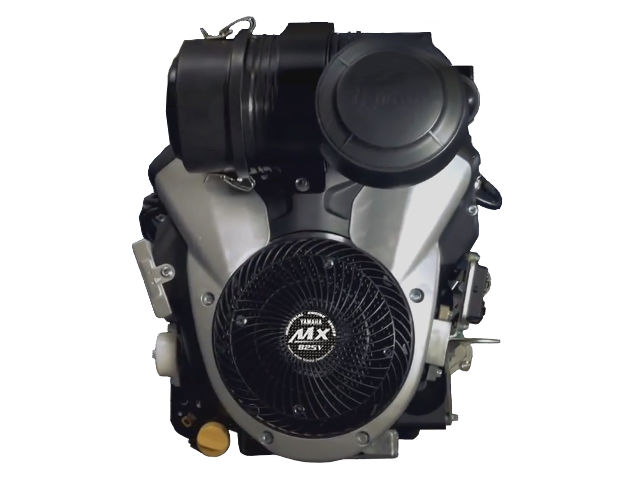

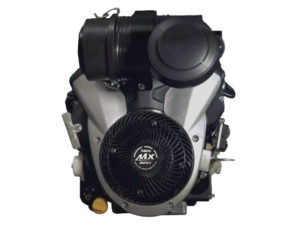

Yamaha MX825VThe Yamaha MX825V is a small (824 cc, 50.3 cu-in) V-twin air-cooled four-stroke internal combustion gasoline engine with vertical shaft, manufactured by Honda Motor Company.

The Yamaha MX825V motor has two-cylinder, overhead valves and a ball bearing supported P.T.O. The engine is equipped with industry-standard air filtration system; float-type carburetor; T.C.I. ignition system and electric starter.

Cylinder bore and piston stroke is 80.0 mm (3.15 in) and 82.0 mm (3.23 in), respectively. Compression ratio rating is 8.6:1. The MX825V produces 27.8 HP (20.7 kW) at 3,600 rpm of maximum gross power or 27.5 HP (20.5 kW) at 3,600 rpm of gross rated power (SAE J1995) and 63.2 Nm (6.44 kg·m, 46.6 ft·lb) at 3,100 rpm of torque.

General information

Engine Specifications
ModelMX825V
Type4-stroke, OHV, V-twin
Displacement824 cm 3 (50.3 cu-in)
Max. horsepower27.8 HP (20.7 kW) at 3,600 rpm
Max. torque (crank PTO)63.2 Nm (6.44 kg·m, 46.6 ft·lb) at 2,200 rpm
Fuel systemFloat-type carburetor
Cooling systemForced-air
Ignition systemT.C.I. ignition
Lubricating systemFull pressure with filter
Starting systemElectric starter
Stoping systemMisfire
Fuel usedUnleaded gasoline (octane number 86 or higher)
Fuel tank capacity
Fuel consumption
PTO shaft rotationCounterclockwise (from PTO shaft side)

Service Information

Engine
Maximum speed3550-3600 rpm
Cylinder compression13.4-14.8 kg/cm2 (190-210 psi)
Valve clearance
Intake valve0.07-0.13 mm (0.003-0.005 in)
Exhaust valve0.07-0.13 mm (0.003-0.005 in)
Oil system
Oil typeYamalube 4-stroke or an equivalent (SE or higher)
Recommended oilSAE 10W-30
Oil capacity2.0 L (2.11 US qt, 1.76 Imp.qt)
Ignition system
Spark plugNGK: BPR6ES
Spark plug gap0.7-0.8 mm (0.028-0.031 in)
Spark plug tightening torque20 N·m (2.0 kg·m, 14 ft·lb)

Valve clearance adjustment data

Calculate the thickness of new adjusting pad so valve clearance comes within specified values.

R = Thickness of removed adjusting pad
N = Thickness of new adjusting pad
M = Measured valve clearance

Intake/Exhaus:
N = R + [M – 0.13 mm (0.005 in)]

Adjusting pads are available from 1.80 mm (0.0708 in) to 3.00 mm (0.1181 in), in steps of 0.05 mm (0.002 in).

Example:
R = 1.80 mm
M = 0.22 mm
N = 1.80 + (0.22 – 0.13) = 1.89 mm, round to 1.90 mm, so we need a adjusting pad with code 190.

Adjust valve celarance at 1000 hr periodic maintenance, normal operational range between periodic maintenance may be 0.02-0.2 mm (0.0008-0.01 in)

Tightening torque
Rocker arm shaft bolt4.0 Nm (0.40 kg·m, 2.9 lb·ft)
Cylinder head cover bolt11.0 N·m (1.1 kg·m, 8.0 lb·ft)
